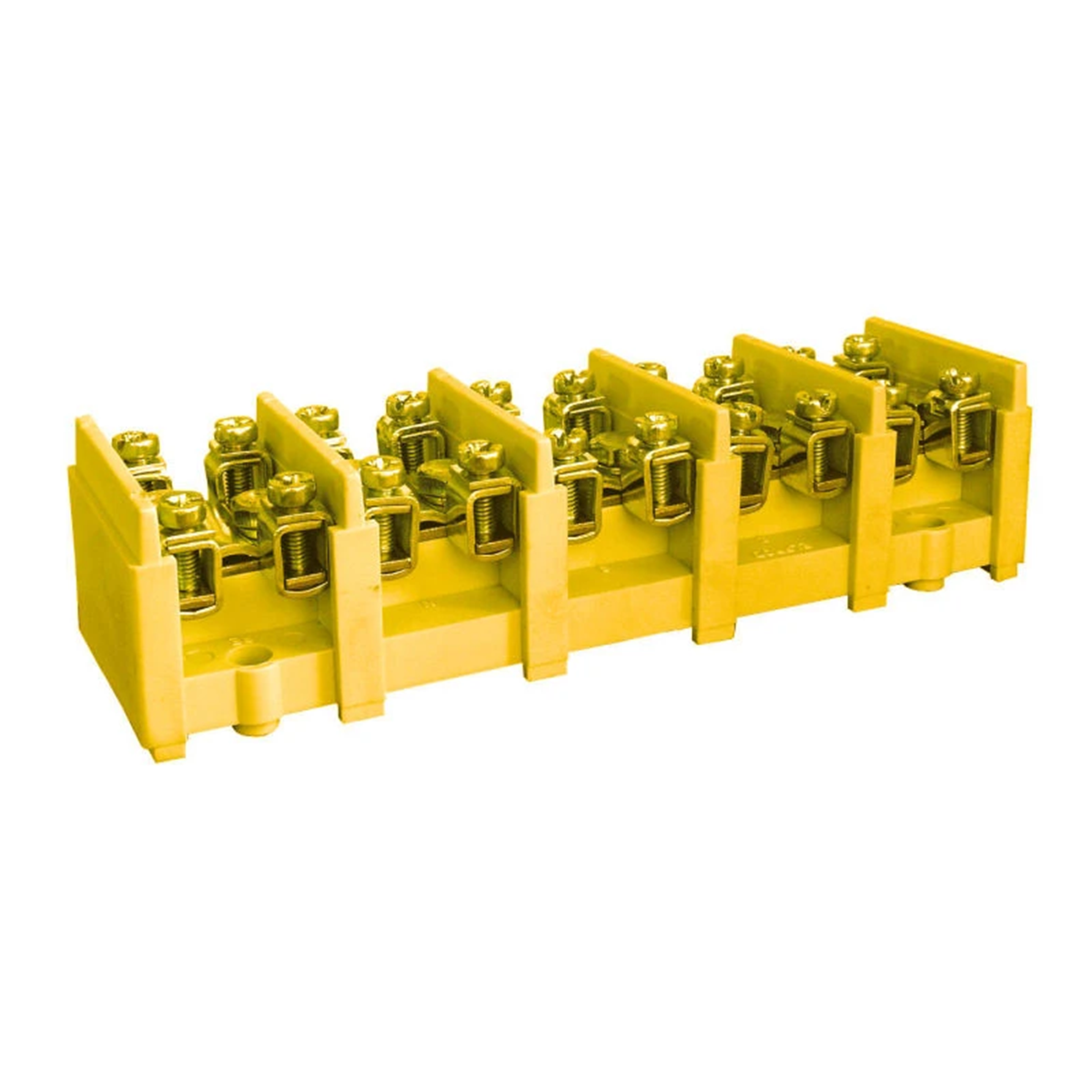

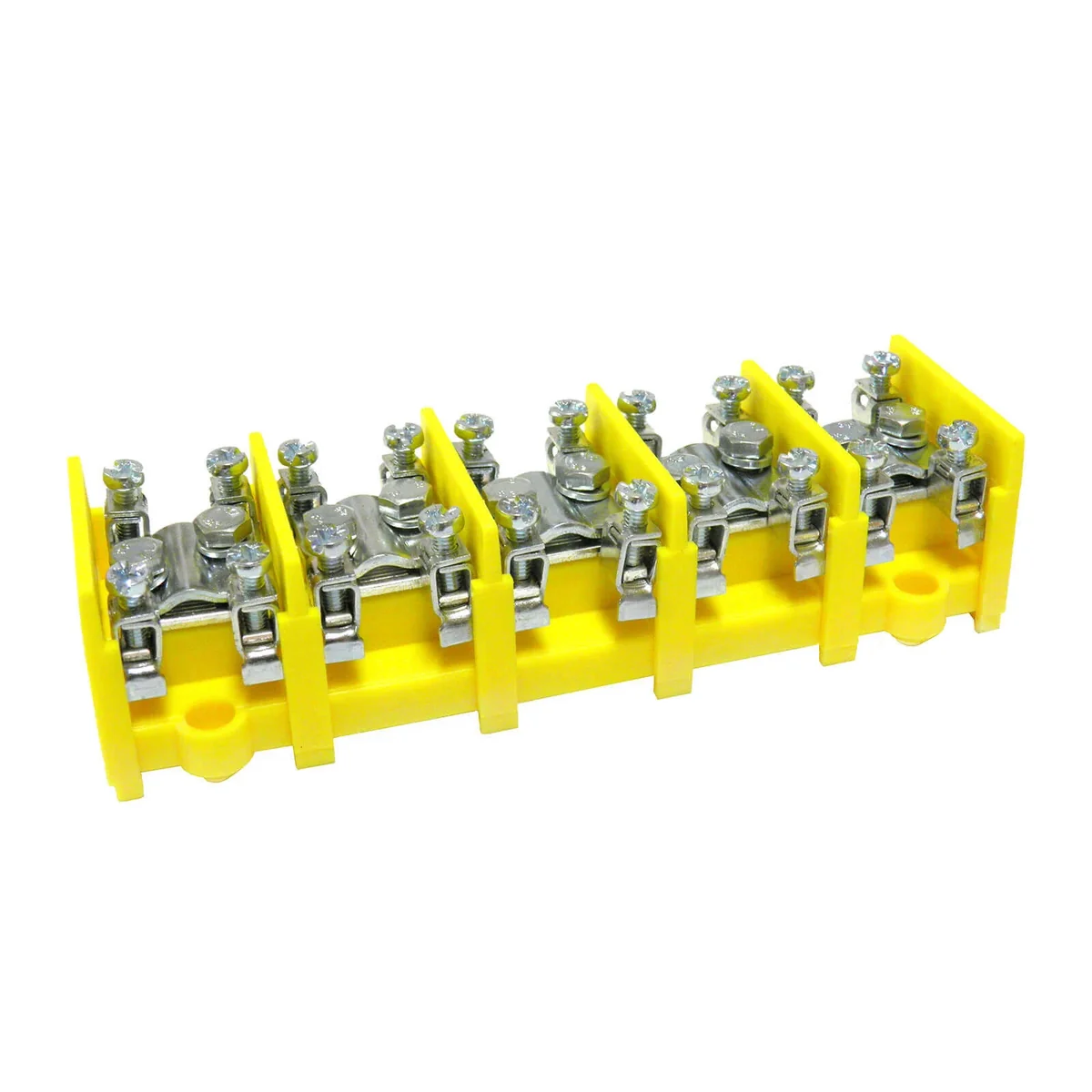

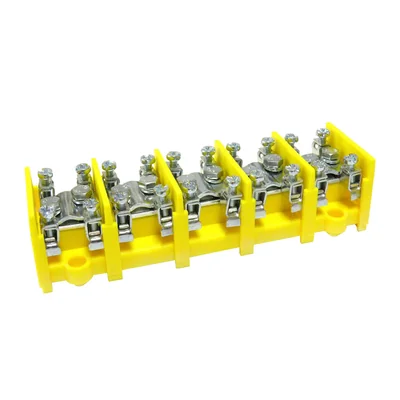

5-segment installation branch 84107004

local index:
TEG721SIME
Catalog No:
84107004
EAN code:
5907813223617
Manufacturer: SIMET
Color: Yellow
Rated current [A]: 57
Accurate color: Yellow
Price:
16,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

5-segment installation branch (clamp: 5x25mm2-5x4x10mm2)

Technical data

  • Color
    Yellow
  • Accurate color
    Yellow
  • Rated current [A]
    57
  • PKWIU
    27.33.13.0

Other technical data

  • Number of poles
    5
  • Liczba podłączeń 10 mm²
    20
  • Łączna liczba podłączeń
    25
  • Height
    51 mm
  • Depth
    146 mm
  • Connection type
    Screwing
  • Liczba podłączeń 25 mm²
    5
  • Mounting method
    Screw
  • Width
    47 mm
  • Contact safe
    No
