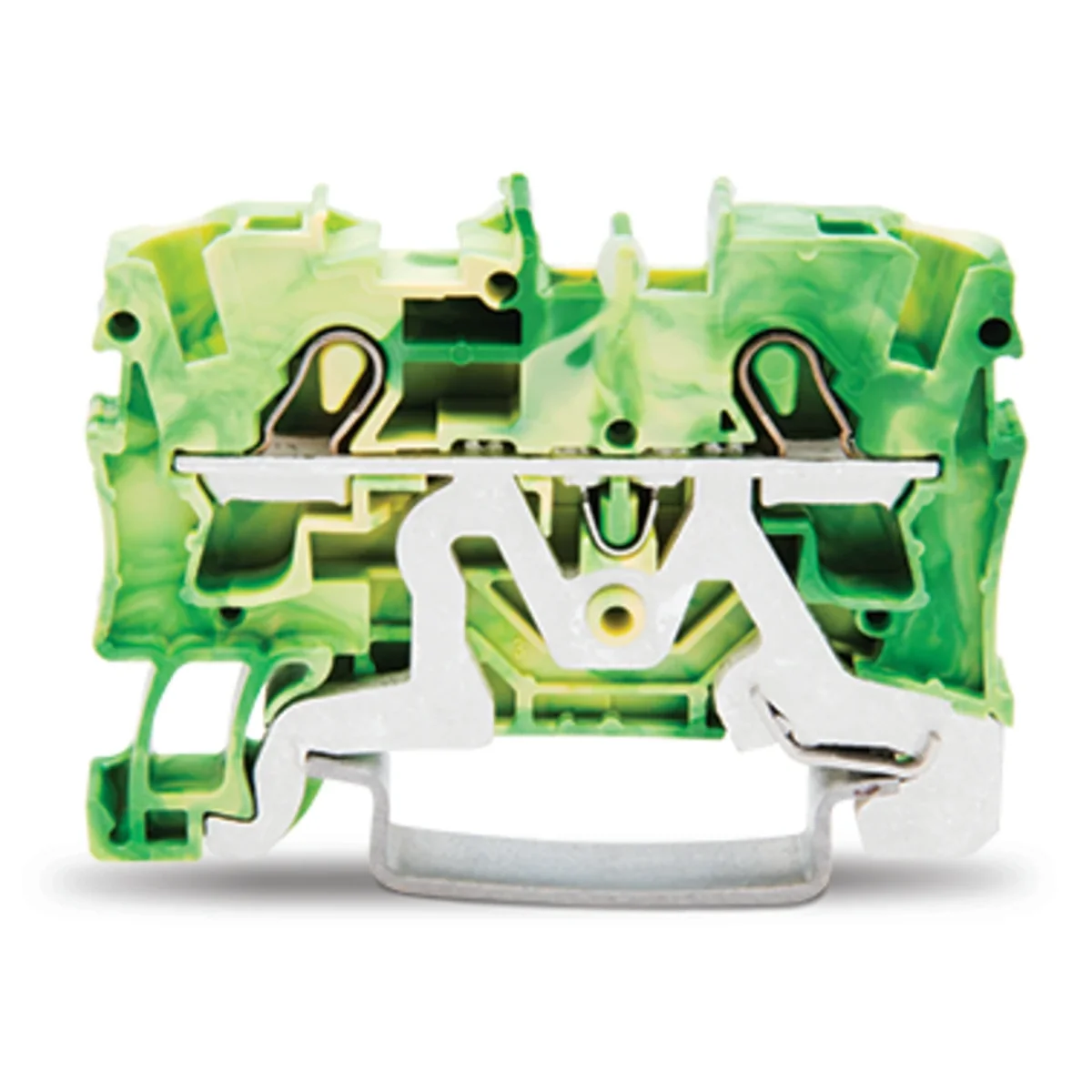

4mm² TOPJOBS yellow-green 2-conductor terminal block 2004-1207

local index:
TEG004WAGO
Catalog No:
2004-1207
EAN code:
4017332071345
Manufacturer: WAGO ELWAG
Color: Yellow-green
Number of potentials: 1
Rated current [A]: thirty
Price:
128,39 €
gross / pkg.
(including VAT 23%)
2,57 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

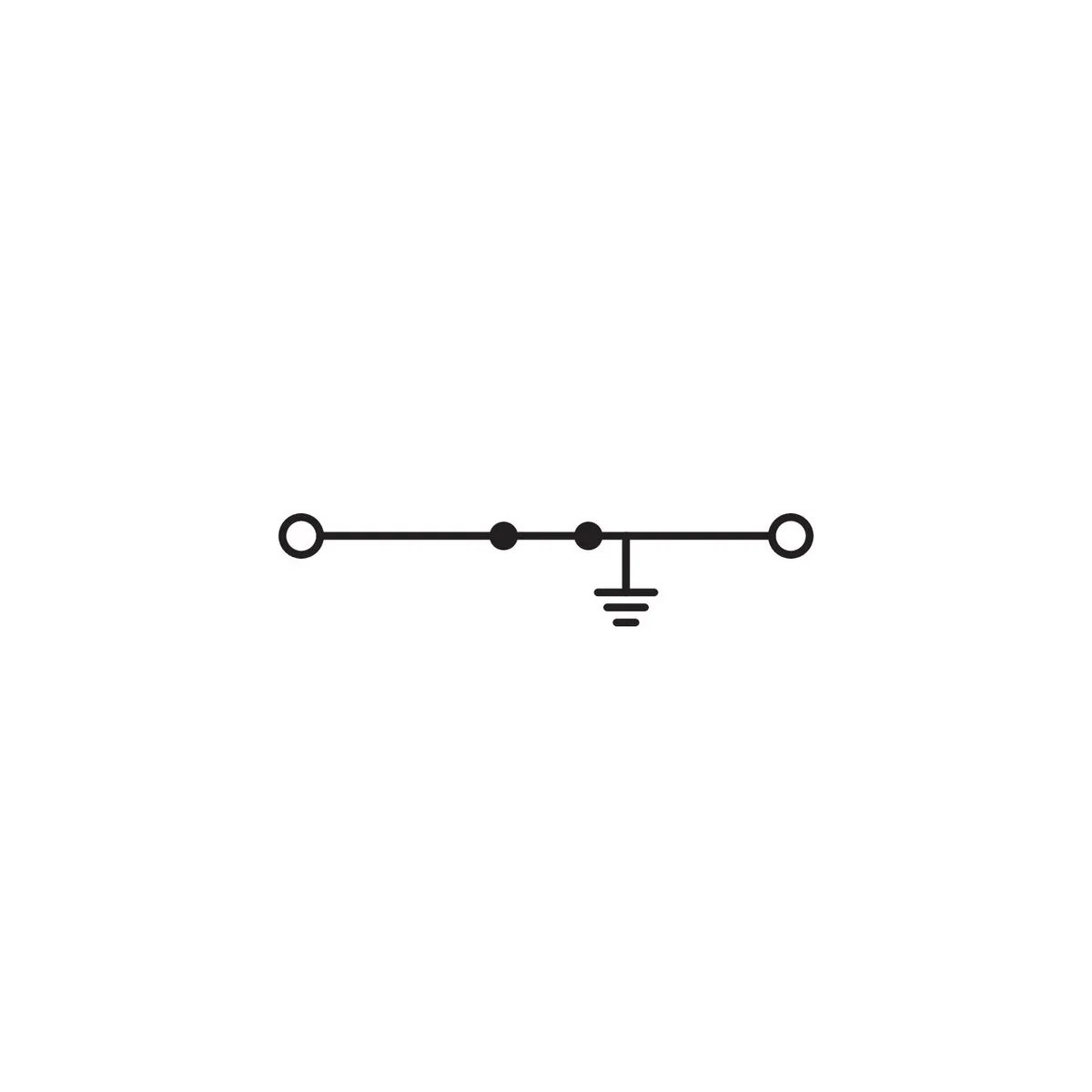

2-wire protective conductor terminal block with Ex e II

Technical data

  • Color
    Yellow-green
  • Rated current [A]
    thirty
  • Series
    2004
  • Pieces in the package
    50
  • Number of connectors
    2
  • Number of potentials
    1
  • Clamp type
    CAGE CLAMP S clamp
  • How to install the cable
    Front mounting
  • Accurate color
    Yellow-green

Other technical data

  • PEN function possible
    Yes
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.75 ... 4 mm²
  • Connectable conductor cross section multi-wired
    0.5 ... 4 mm²
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    6.2 mm
  • Length
    52.5 mm
  • Colour
    Green/yellow
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.5 ... 6 mm²
  • Connectable conductor cross section solid-core
    1 ... 6 mm²
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    33 mm
  • Closing plate required
    Yes

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,678
Volume (m3) 0,002
Width (m) 0,098
Length (m) 0,330
Depth (m) 0,048
