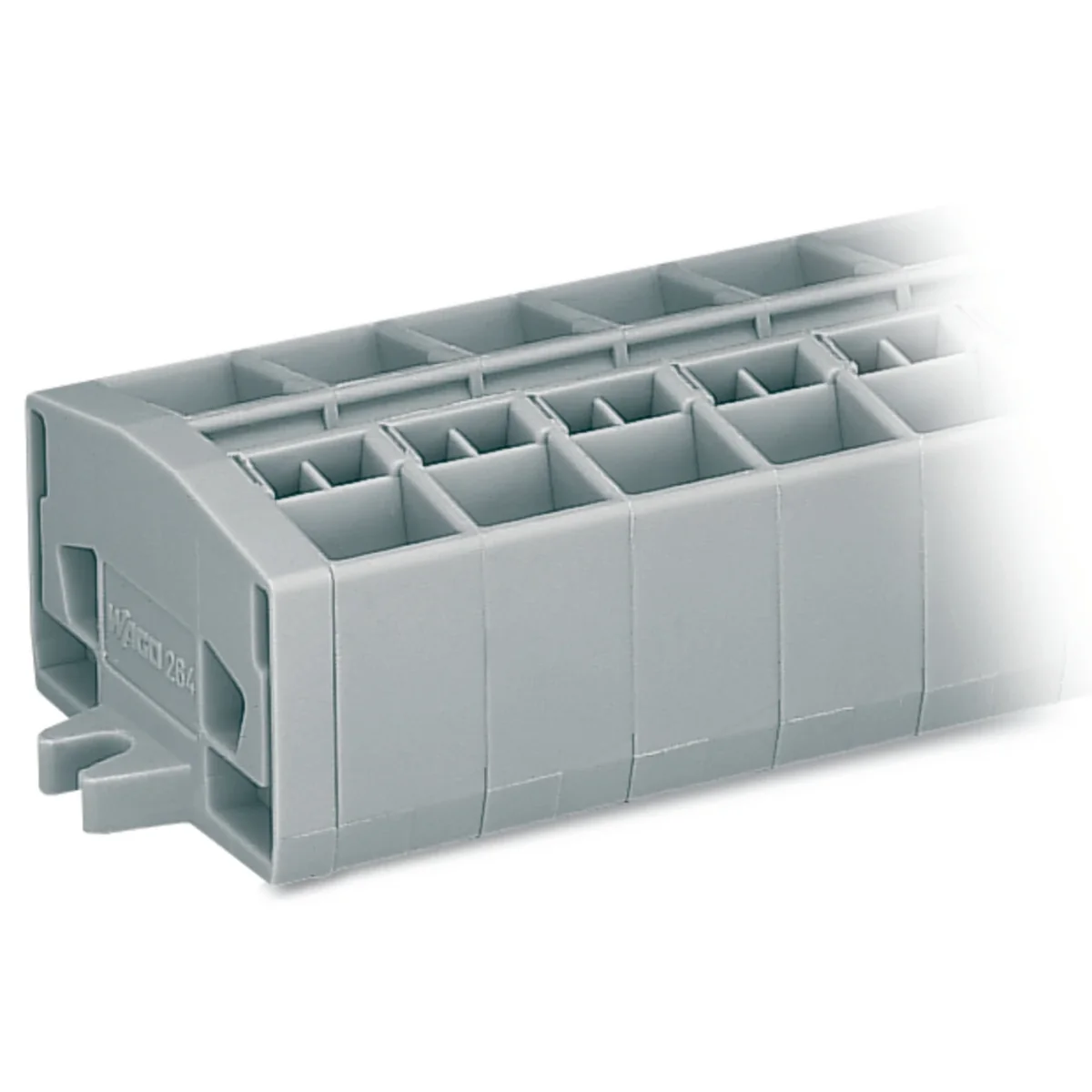

4-wire terminal block 7-pole, gray 264-207 264-207

Name: 4-wire terminal block 7-pole, gray 264-207
Brand: WAGO ELWAG
SKU: TEG098WAGO
Price: 42.40 PLN
Availability: BackOrder

Index local:

TEG098WAGO

Numéro de catalogue:

264-207

Code EAN:

4044918418713

Cliquer sur la photo pour l'agrandir

Producteur: WAGO ELWAG

Prix:

42,40 zł

gross / pcs.

(y compris la TVA 23%)

2 semaines

Sur commande

Quantité pcs.

(plusieurs:

1

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Données techniques Détails du fabricant Emballage en vrac

Données techniques

Drill hole distance centrically

93.6 mm
Connectable conductor cross section fine-strand without cable end sleeve

0.08 ... 2.5 mm²
Connectable conductor cross section solid-core

0.08 ... 2.5 mm²
Rated current In

24 A
Type of electrical connection 1

Spring clamp connection
Connection position

Atop
Number of clamp positions per pole

4
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Wysokość przy najniższym sposobie montażu

22 mm
Closing plate required

No
Transparent

No

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 1.5 mm²
Connectable conductor cross section multi-wired

0.08 ... 2.5 mm²
Rated voltage

800 V
Type of electrical connection 2

Spring clamp connection
Number of poles

7
Mounting method

Other
Operating temperature

105 ... 105 °C
Width/grid dimension

86 mm
Length

32 mm
Colour

Grey
