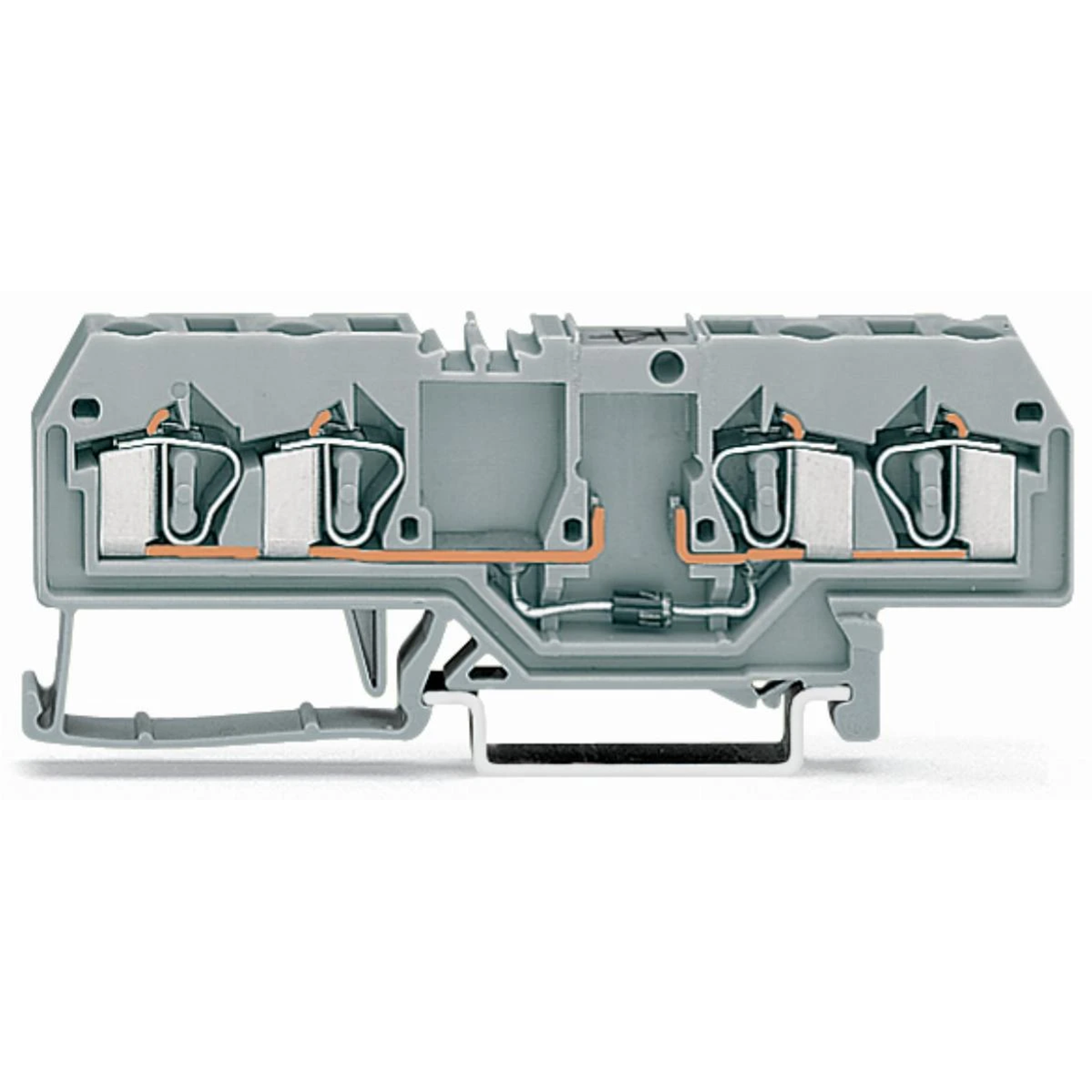

4-wire diode connector 4mm² gray 281-665/281-401

local index:
TEB951WAGO
Catalog No:
281-665/281-401
EAN code:
4050821275527
Manufacturer: WAGO ELWAG
Length [mm]: 86
number of phases: 1
Color: Gray
Price:
6,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 24 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Dida connector 4 wire 4 mm2 gray

Technical data

  • Length [mm]
    86
  • Color
    Gray
  • Installation
    On the TH-35 rail
  • Cross-section of connected single-wire cable [mm]
    0, 08 - 4
  • Cross-section of connected multicore cable [mm]
    0, 08 - 4
  • Series
    281
  • Height with the lowest mounting method [mm]
    29
  • Number of connectors
    1
  • number of phases
    1
  • Number of clamps per level
    4
  • Rated current [A]
    1.5
  • Cross-section of the connected stranded wire without ferrule [mm]
    0.08 - 4
  • Type of electrical connection
    Spring clip
  • The inner floors are bridged
    NO
  • Accurate color
    Gray

Other technical data

  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section solid-core
    0.08 ... 4 mm²
  • Rated current In
    1.5 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    4
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    6 mm
  • Length
    86 mm
  • Colour
    Grey
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 4 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 4 mm²
  • Rated voltage
    250 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Internally connected stages
    No
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    29 mm
  • Closing plate required
    Yes
  • Type of component
    Diode

Bulk packaging

A kind of package Karton
Quantity 50 pcs.
Weight (kg) 0,736
Volume (m3) 0,001
Width (m) 0,095
Length (m) 0,330
Depth (m) 0,045
