4-wire diode connector 2.5mm² 100pcs 280-623/281-411

local index:
TEB043WAGO
Catalog No:
280-623/281-411
EAN code:
4050821275428

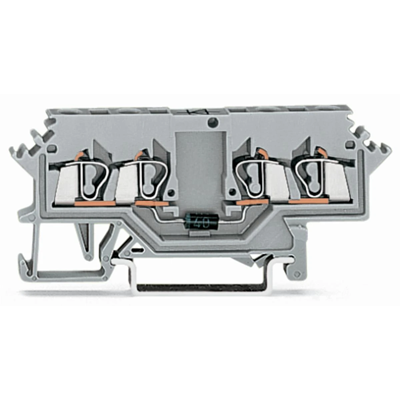

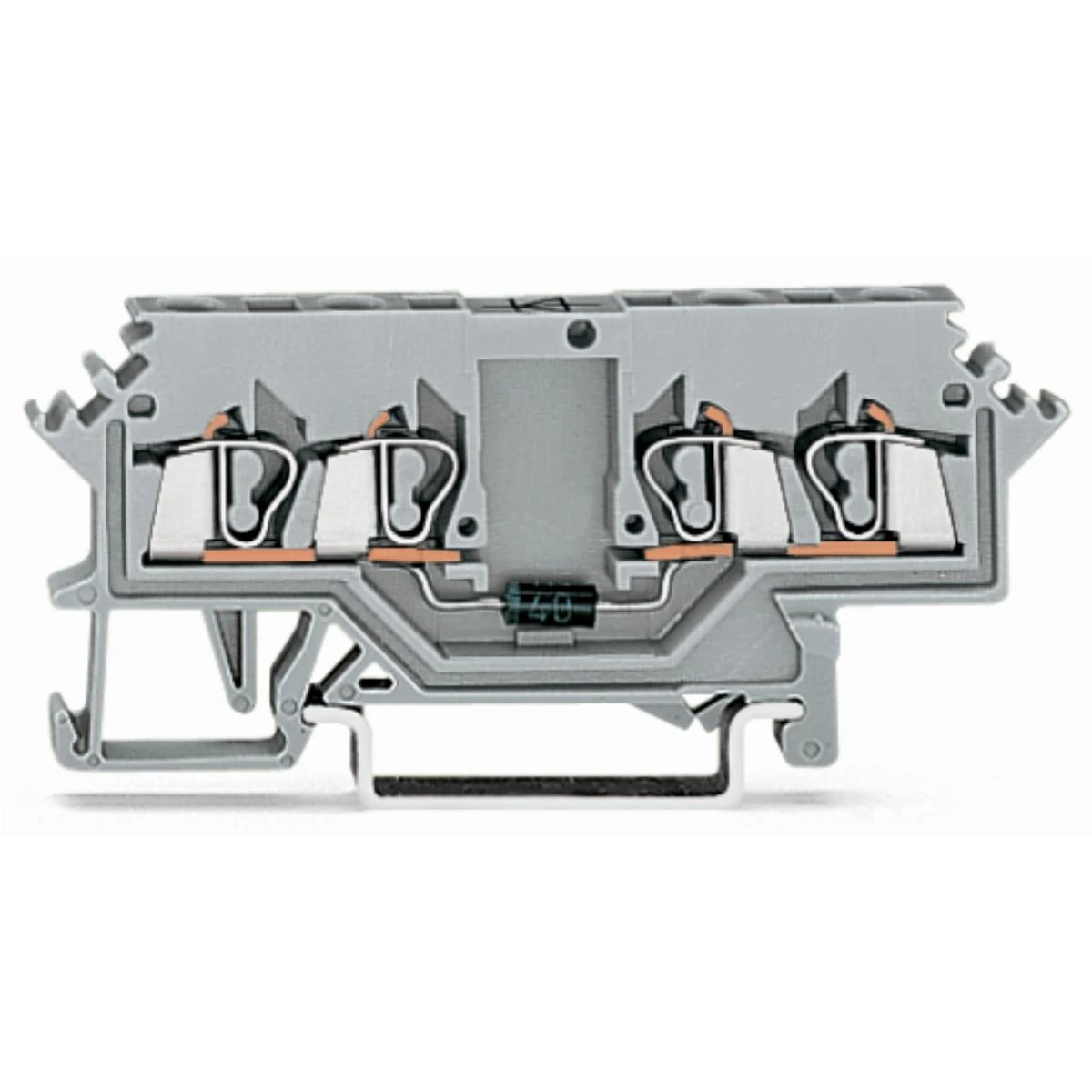

4-wire diode connector 2.5mm² 100pcs
4-wire diode connector 2.5mm² 100pcs
4-wire diode connector 2.5mm² 100pcs
4-wire diode connector 2.5mm² 100pcs
4-wire diode connector 2.5mm² 100pcs
4-wire diode connector 2.5mm² 100pcs
4-wire diode connector 2.5mm² 100pcs
4-wire diode connector 2.5mm² 100pcs

Click on the photo to enlarge

Manufacturer: WAGO ELWAG
Product group: 1 (strip terminal blocks)
Color: Gray
Number of potentials: 1
See full description
Price:
21,23 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

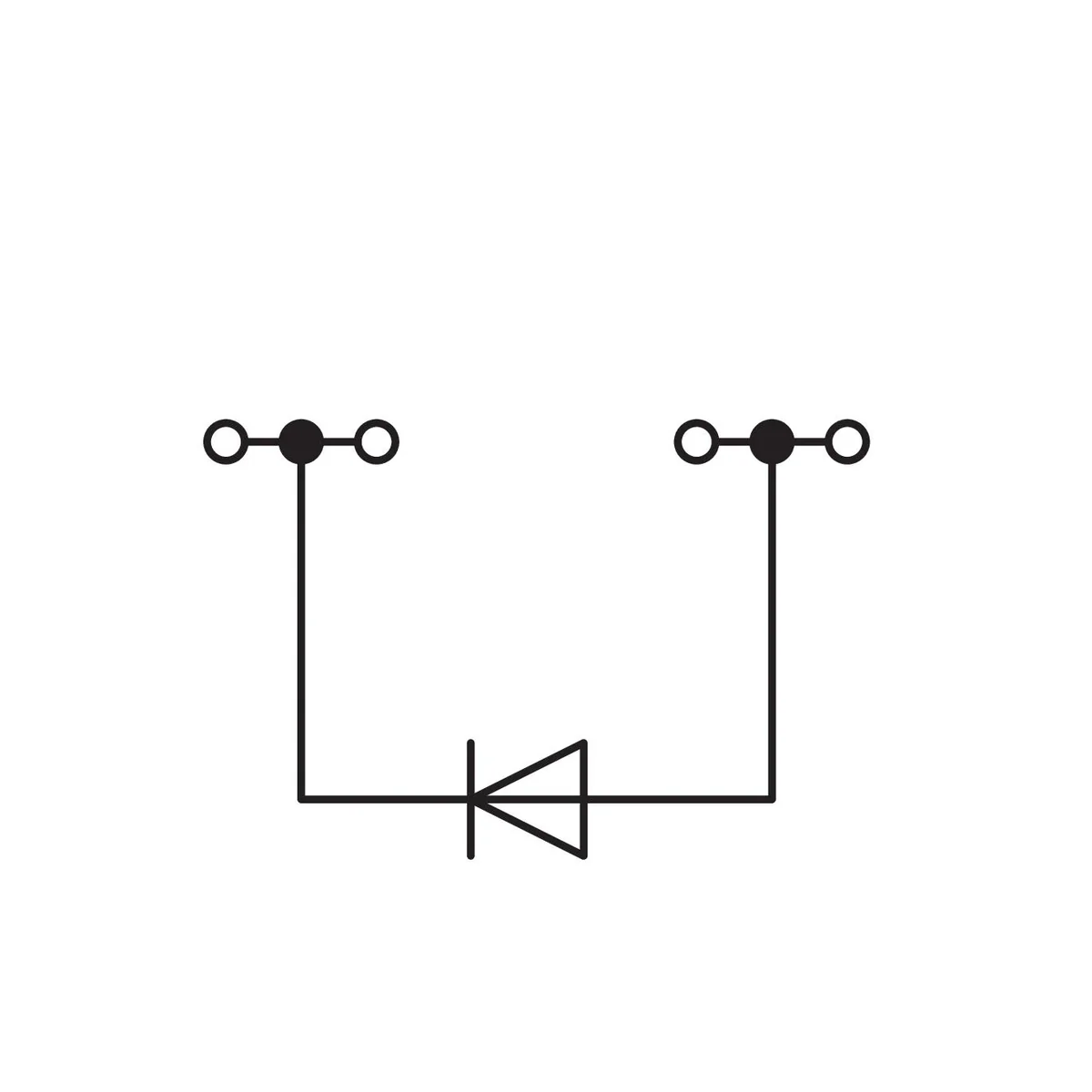

4-wire diode connector with 1N4007 diode

Technical data

  • Product group
    1 (strip terminal blocks)
  • Number of potentials
    1
  • Gauge [AWG]
    28 - 14
  • Series
    280
  • Pieces in the package
    100
  • Accurate color
    Gray
  • Color
    Gray
  • Rated current [A]
    0.5
  • Clamp type
    CAGE CLAMP
  • How to install the cable
    Front mounting
  • Weight [g]
    8.66
  • Number of connectors
    4

Other technical data

  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section solid-core
    0.08 ... 2.5 mm²
  • Rated current In
    0.5 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    4
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    5 mm
  • Length
    73 mm
  • Colour
    Grey
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 2.5 mm²
  • Rated voltage
    250 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Internally connected stages
    No
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    28 mm
  • Closing plate required
    Yes
  • Type of component
    Diode

Manufacturer details

  • Manufacturer
    WAGO GmbH & Co. KG
  • Address
    32423 Minden Hansastraße 27 Niemcy
  • E-mail
    wago.elwag@wago.com

Bulk packaging

A kind of package Karton
Quantity 100 pcs.
Weight (kg) 0,872
Volume (m3) 0,001
Width (m) 0,094
Length (m) 0,221
Depth (m) 0,045
