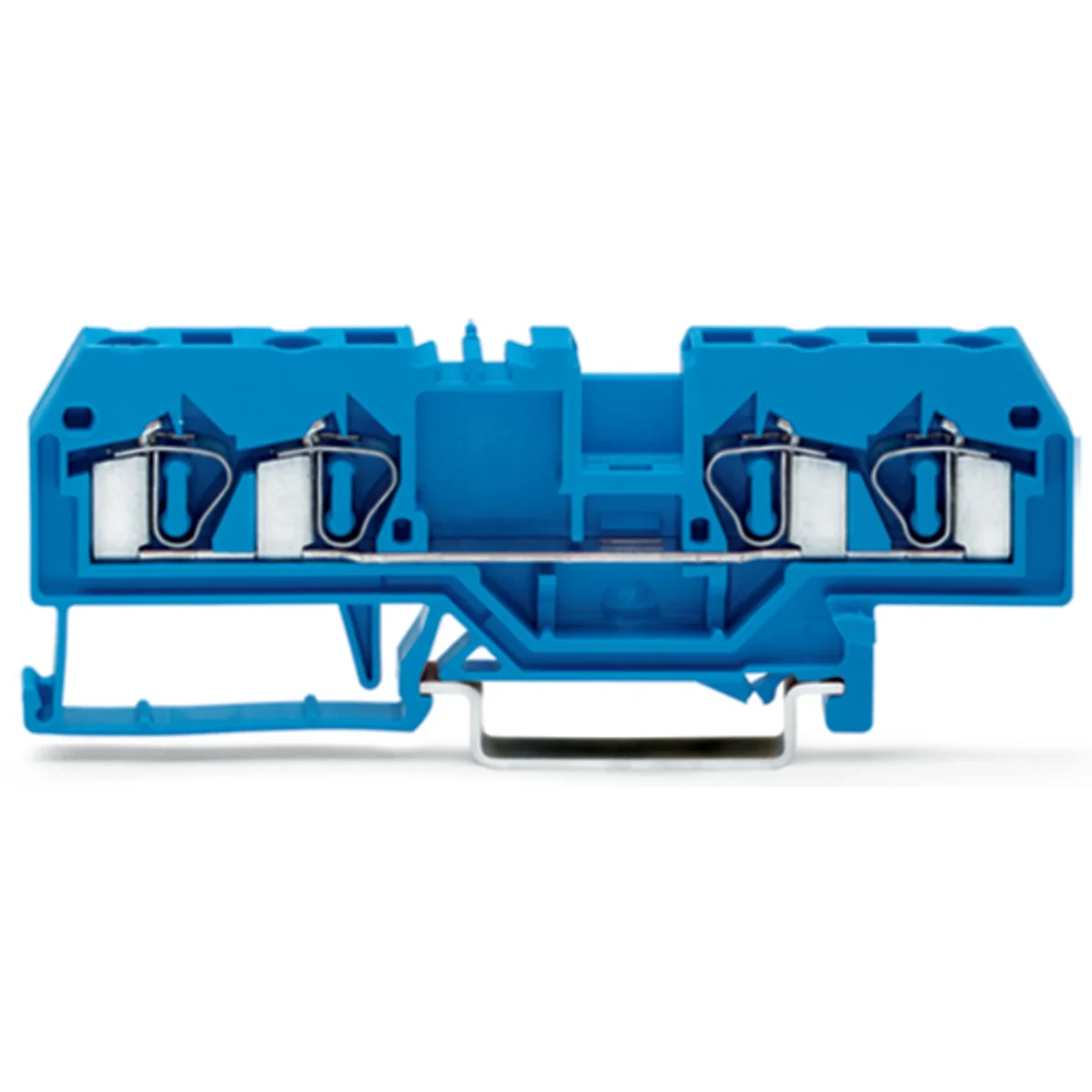

4-wire connector 4mm² blue 50pcs 281-654

local index:
TEB133WAGO
Catalog No:
281-654
EAN code:
4044918486453
Manufacturer: WAGO ELWAG
Stripping length [mm]: 0.37
Depth [mm]: 86
Color: Blue
Price:
96,22 €
gross / pkg.
(including VAT 23%)
1,92 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

4-wire connector 4 mm2 blue

Technical data

  • Stripping length [mm]
    0.37
  • Color
    Blue
  • Number of poles
    4
  • Installation
    On the TH-35 rail
  • Rated voltage EN [V]
    800
  • The plane of description
    Description in the middle
  • Gauge [AWG]
    28
  • Series
    281
  • Width [mm]
    6
  • Wire connection technique
    CAGE CLAMP®
  • Height [mm]
    29
  • Maximum stripping length [mm]
    10
  • Number of connectors
    4
  • Depth [mm]
    86
  • Construction
    Horizontal design
  • Total number of potentials
    1
  • Surge voltage [kV]
    8
  • Fire load [MJ]
    0.205
  • Rated current [A]
    26
  • Type of wiring
    Front wiring
  • Degree of contamination
    3
  • Pieces in the package
    50
  • Weight [g]
    11.2
  • Accurate color
    Blue
  • Minimum stripping length [mm]
    9

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 4 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 4 mm²
  • Rated voltage
    800 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    6 mm
  • Length
    86 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
  • Connectable conductor cross section solid-core
    0.08 ... 4 mm²
  • Rated current In
    26 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    29 mm
  • Explosion-tested version 'Ex e'
    Yes
  • Colour
    Blue

Manufacturer details

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,690
Volume (m3) 0,002
Width (m) 0,098
Length (m) 0,330
Depth (m) 0,048
