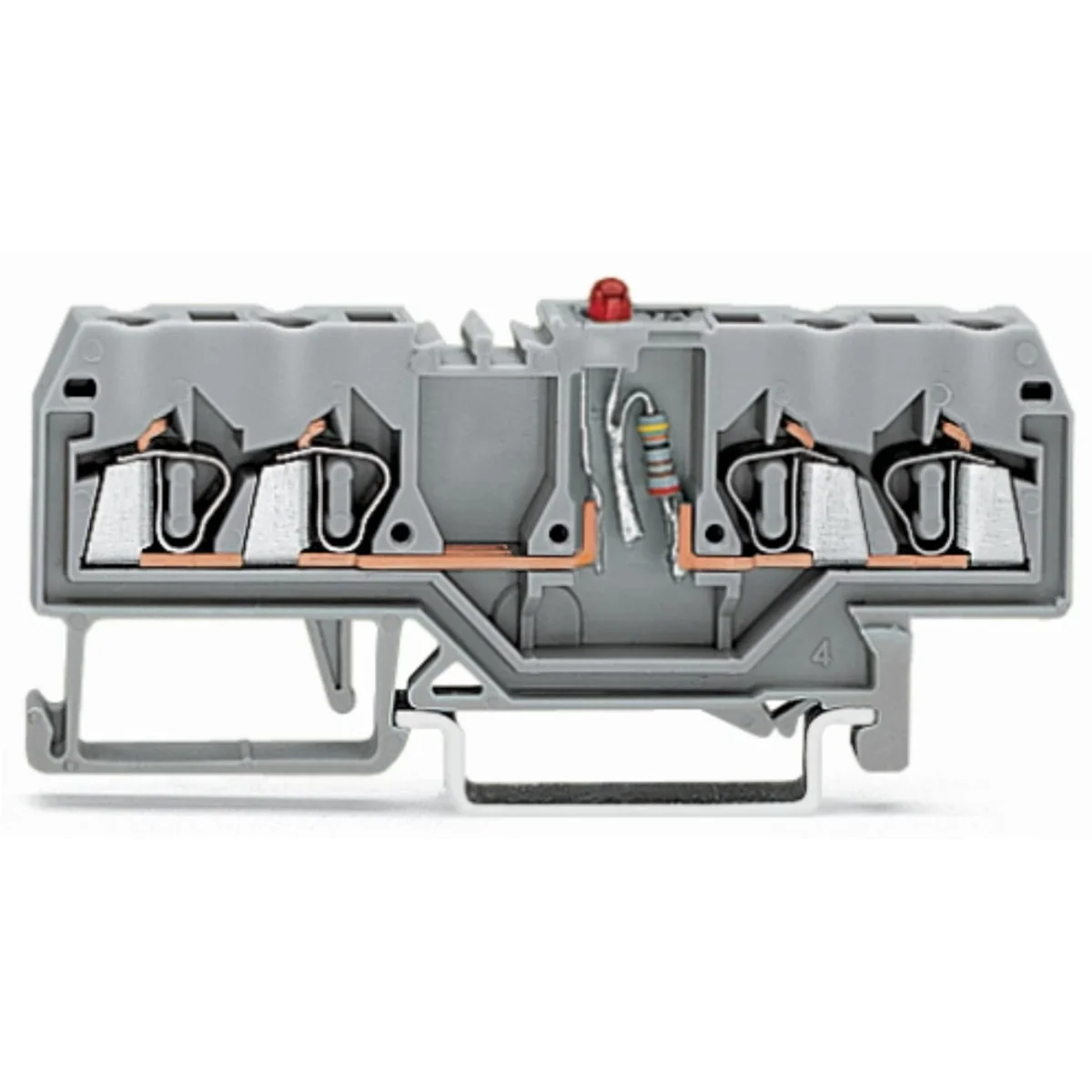

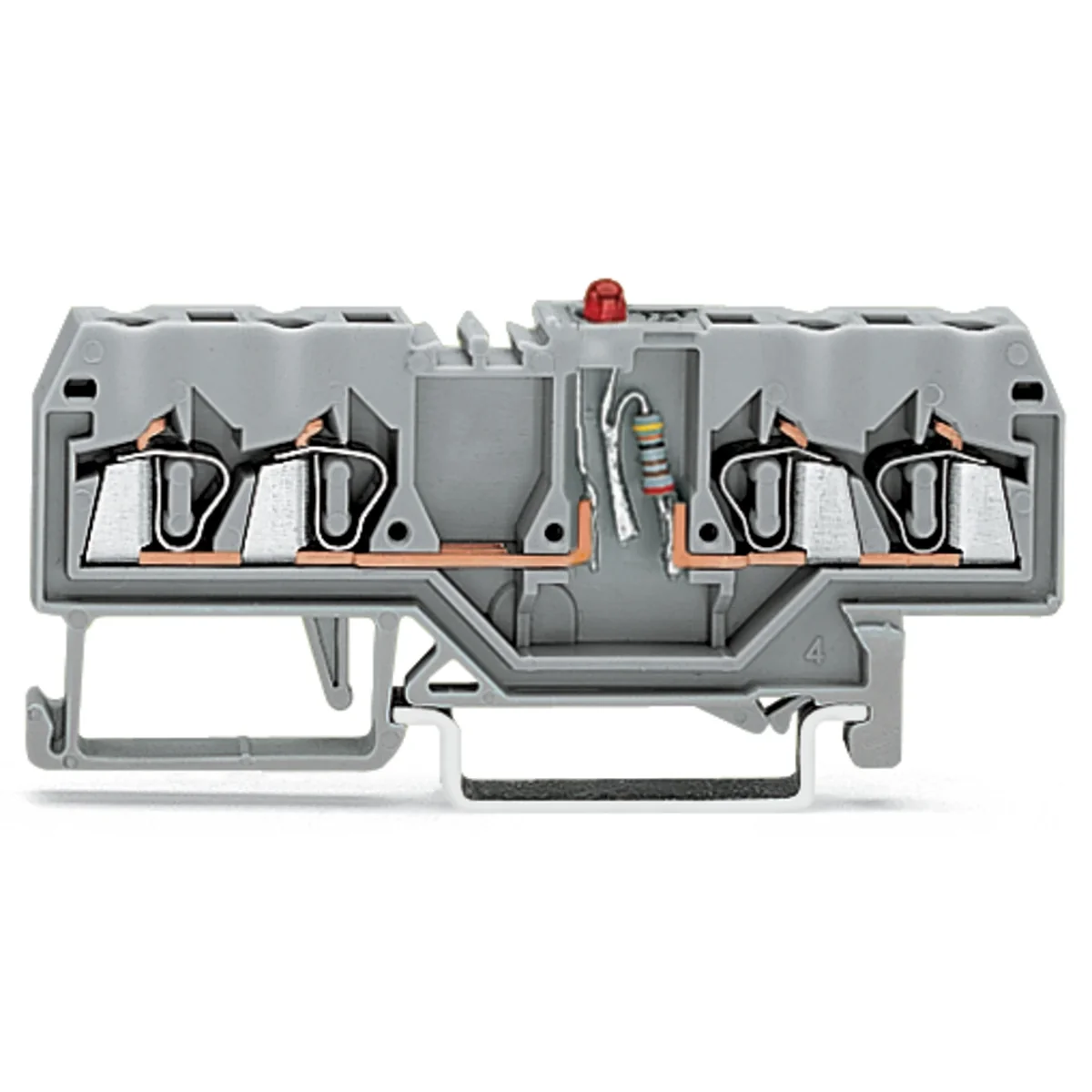

4-wire connector 2.5mm² with gray LED 280-809/281-413

local index:
TEB134WAGO
Catalog No:
280-809/281-413
EAN code:
4045454362706
Manufacturer: WAGO ELWAG
Depth [mm]: 75
Color: Gray
Construction: Horizontal design
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
3,46 €
gross / pcs.
(including VAT 23%)
Last lowest price: 10,26 € gross
Base price: 10,66 € gross -68%
Delivery in 3h
Accessible 50 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Print

Product description

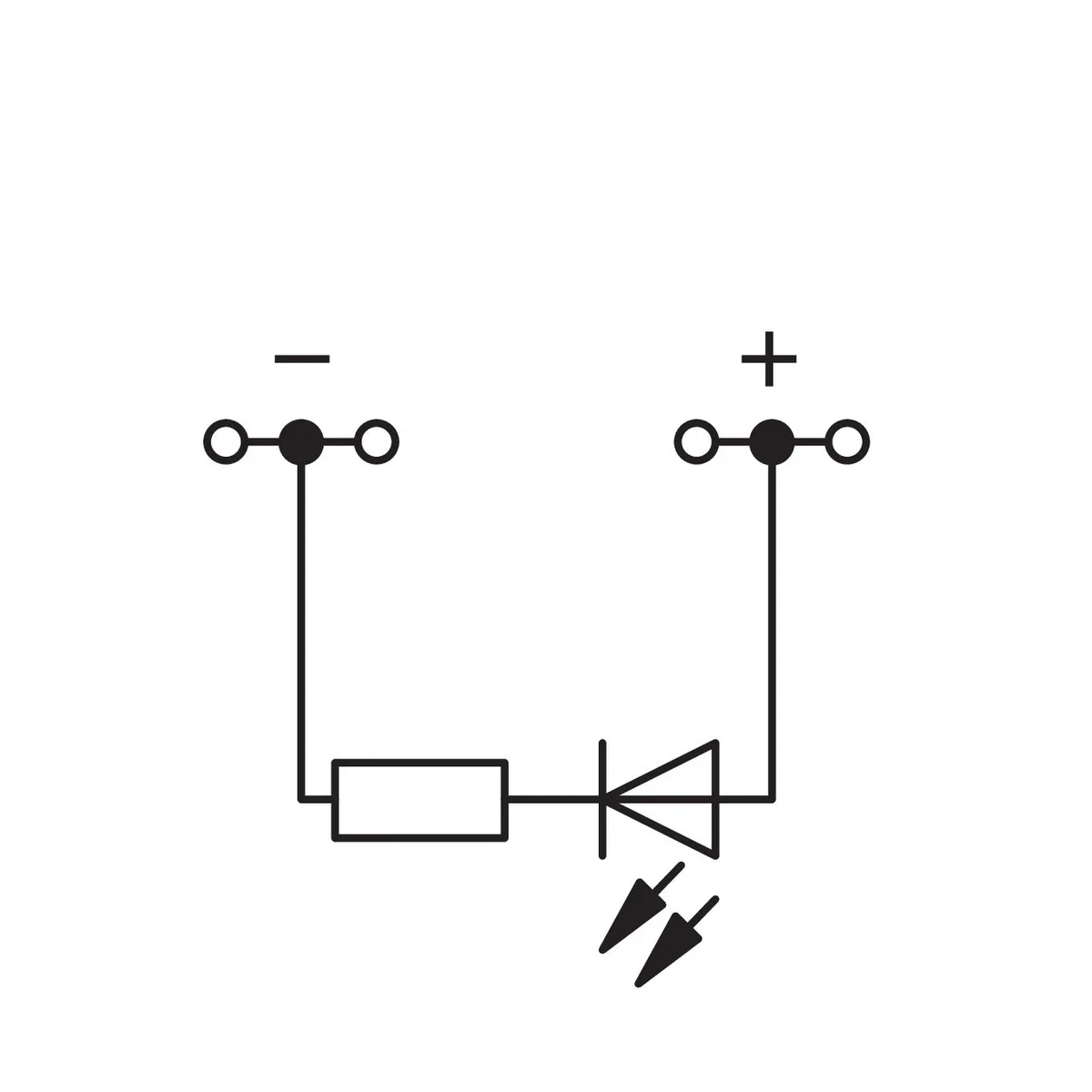

4-wire terminal block 2.5 mm2 with gray LED

Technical data

  • Depth [mm]
    75
  • Construction
    Horizontal design
  • Installation
    On the TH-35 rail
  • Fire load [MJ]
    0.157
  • Rated current [A]
    0.025
  • Type of wiring
    Front wiring
  • Width [mm]
    5
  • Weight [g]
    9.35
  • Accurate color
    Gray
  • Minimum stripping length [mm]
    8
  • Color
    Gray
  • Number of potentials
    1
  • Rated voltage [V]
    24
  • The plane of description
    Description in the middle
  • Gauge [AWG]
    28
  • Series
    280
  • Wire connection technique
    CAGE CLAMP®
  • Height [mm]
    28
  • Maximum stripping length [mm]
    9
  • Number of connectors
    4

Other technical data

  • Explosion-tested version 'Ex e'
    no
  • Connectable conductor cross section solid-core
    0.08 ... 2.5 mm²
  • Rated current In
    0.025 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    4
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    5 mm
  • Length
    75 mm
  • Colour
    Grey
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 2.5 mm²
  • Rated voltage
    24 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Internally connected stages
    no
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    28 mm
  • Closing plate required
    yes
  • Type of component
    LED

Bulk packaging

A kind of package Karton
Quantity 100 pcs.
Weight (kg) 1,016
Volume (m3) 0,002
Width (m) 0,155
Length (m) 0,275
Depth (m) 0,048
