Connecting cables and wires
Connectors
Screwless connectors

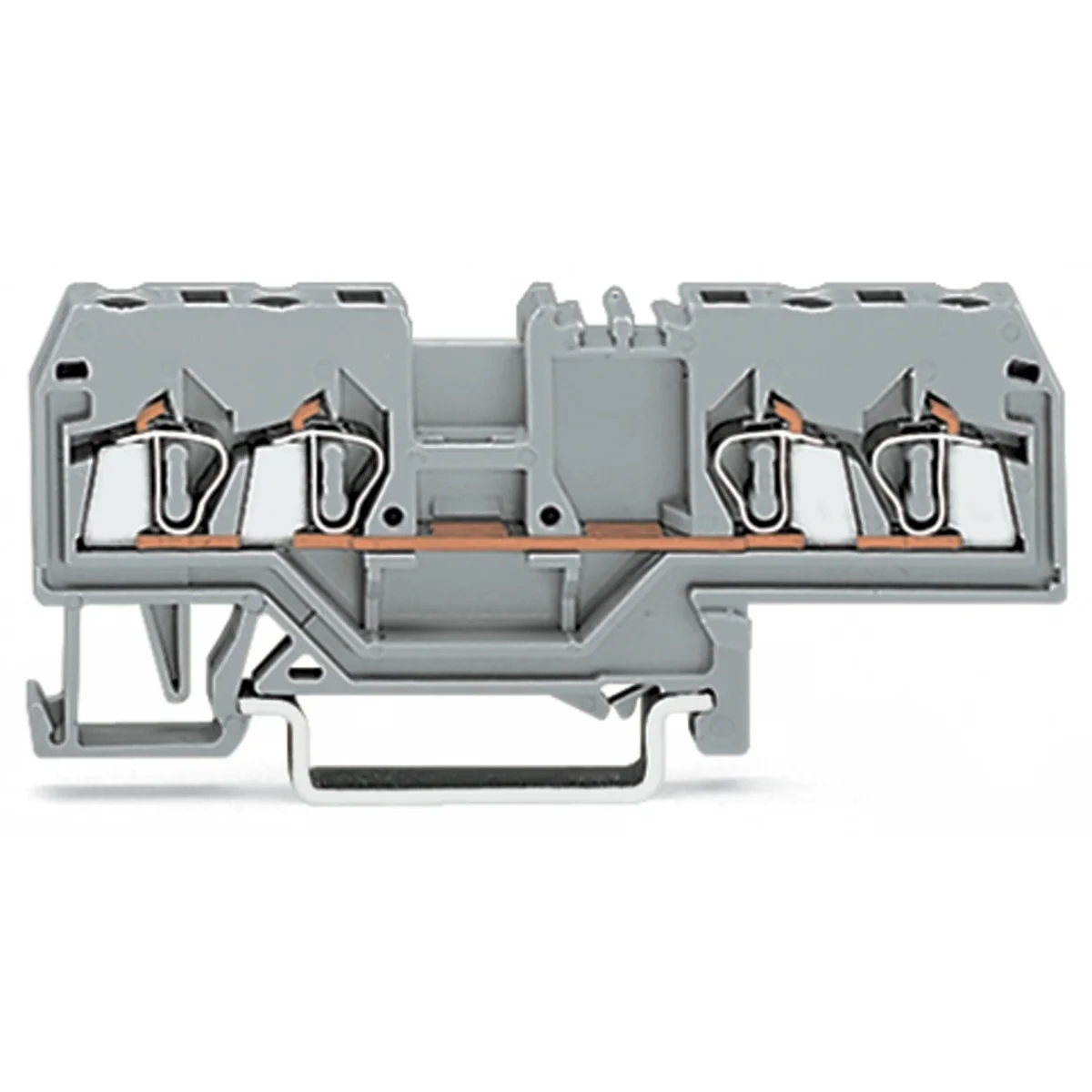

4-wire connector 2.5mm² gray 100pcs 280-633
local index:
TEB948WAGO
Catalog No:
280-633
EAN code:
4044918311137
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Stripping length [mm]:
0.33
Depth [mm]:
75
Color:
Gray
See full description
Price:
158,97 €
gross / pkg.
(including VAT 23%)
1,59 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
4-wire connector 2.5 mm2 gray
Technical data
Stripping length [mm]
0.33
Color
Gray
Installation
On the TH-35 rail
Series
280
Pieces in the package
100
Height [mm]
28
Minimum stripping length [mm]
8
Depth [mm]
75
Number of potentials
1
Gauge [AWG]
28
Width [mm]
5
Wire connection technique
CAGE CLAMP
Maximum stripping length [mm]
9
Number of connectors
4
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.08 ... 2.5 mm²
Connectable conductor cross section multi-wired
0.08 ... 2.5 mm²
Rated voltage
800 V
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
5 mm
Length
75 mm
Closing plate required
Yes

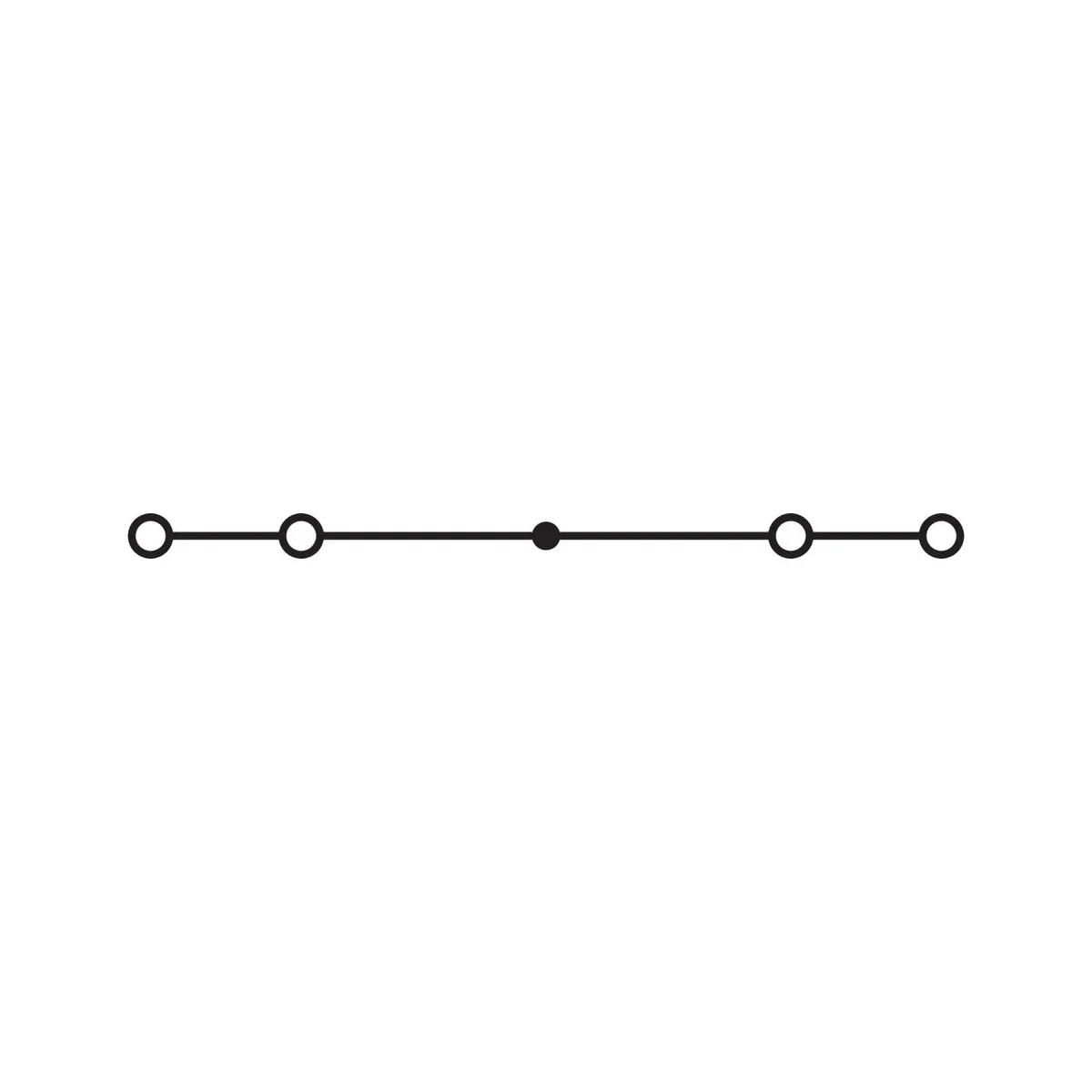

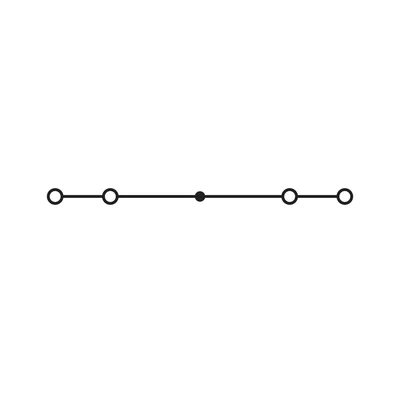

Internally connected stages
No
Connectable conductor cross section solid-core
0.08 ... 2.5 mm²
Rated current In
20 A
Type of electrical connection 1
Spring clamp connection
Connection position
Atop
Number of clamp positions per level
4
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
28 mm
Explosion-tested version 'Ex e'
No
Colour
Grey
Bulk packaging
A kind of package
Karton
Quantity
1 pkg.
Weight (kg)
0,967
Volume (m3)
0,002
Width (m)
0,160
Length (m)
0,285
Depth (m)
0,040
