Connecting cables and wires
Connectors
Screwless connectors

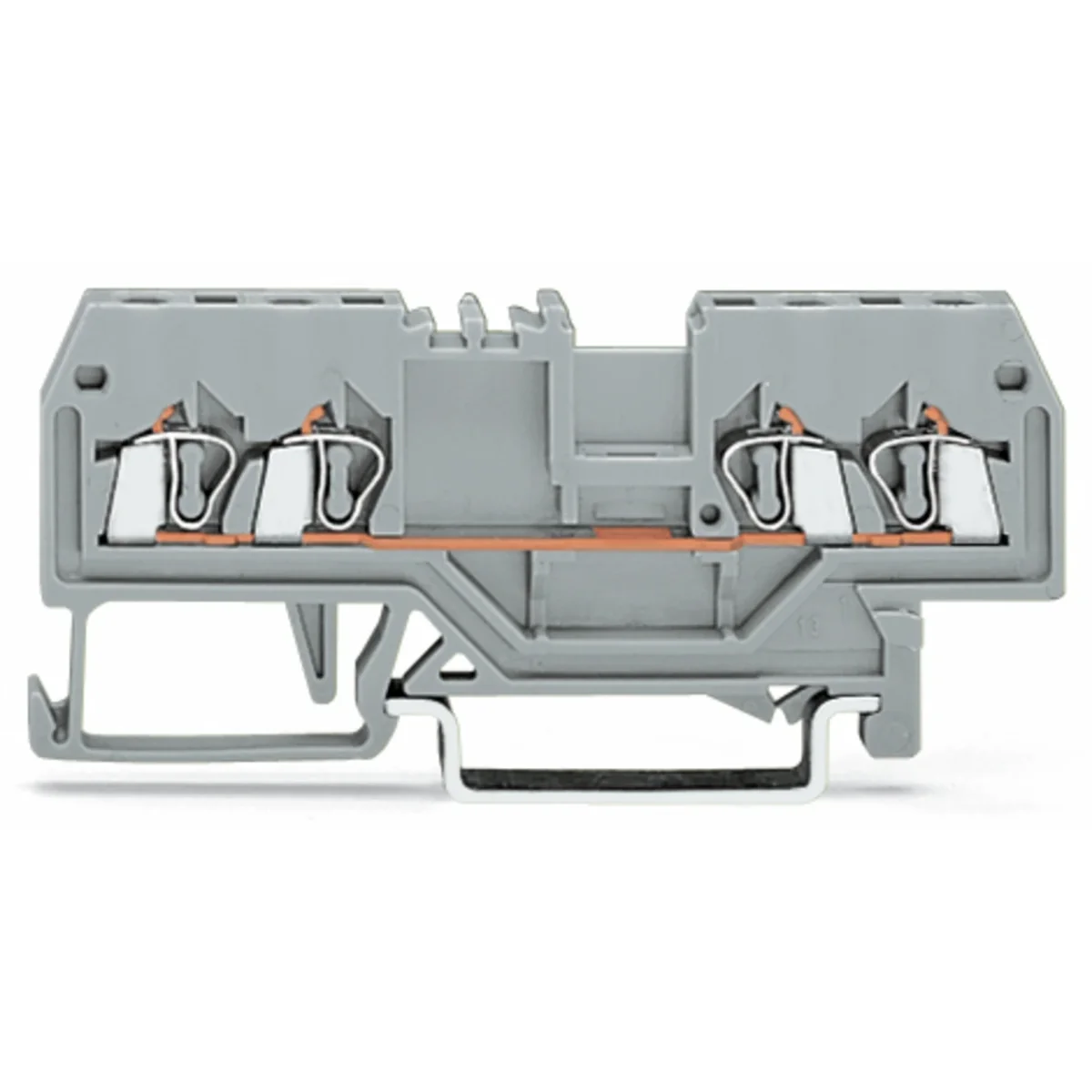

4-wire connector 1.5mm² orange 279-832
local index:
TEB949WAGO
Catalog No:
279-832
EAN code:
4044918520485
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Stripping length [mm]:
0.33
Depth [mm]:
73
Color:
Silver
See full description
Price:
1,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 32 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
4-wire connector 1.5 mm2 orange
Technical data
Stripping length [mm]
0.33
Color
Silver
Installation
On the TH-35 rail
Series
279
Wire connection technique
CAGE CLAMP
Accurate color
Orange
Minimum stripping length [mm]
8
Depth [mm]
73
Number of potentials
1
Gauge [AWG]
28
Width [mm]
4
Height [mm]
27
Maximum stripping length [mm]
9
Number of connectors
4
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.08 ... 1.5 mm²
Connectable conductor cross section multi-wired
0.08 ... 1.5 mm²
Rated voltage
800 V
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
4 mm
Length
73 mm
Closing plate required
Yes
Internally connected stages
No
Connectable conductor cross section solid-core
0.08 ... 1.5 mm²
Rated current In
18 A
Type of electrical connection 1
Spring clamp connection
Connection position
Atop
Number of clamp positions per level
4
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
27 mm
Explosion-tested version 'Ex e'
No
Colour
Orange
Bulk packaging
A kind of package
Karton
Quantity
100 pcs.
Weight (kg)
0,700
Volume (m3)
0,001
Width (m)
0,165
Length (m)
0,227
Depth (m)
0,045
