4-wire connector 1.5mm² blue 279-834

local index:
TEB002WAGO
Catalog No:
279-834
EAN code:
4044918520560
Manufacturer: WAGO ELWAG
Product group: 1 (strip terminal blocks)
Color: Blue
Number of potentials: 1
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
0,63 €
gross / pcs.
(including VAT 23%)
Last lowest price: 1,87 € gross
Base price: 1,93 € gross -67%
Delivery in 3h
Accessible 77 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

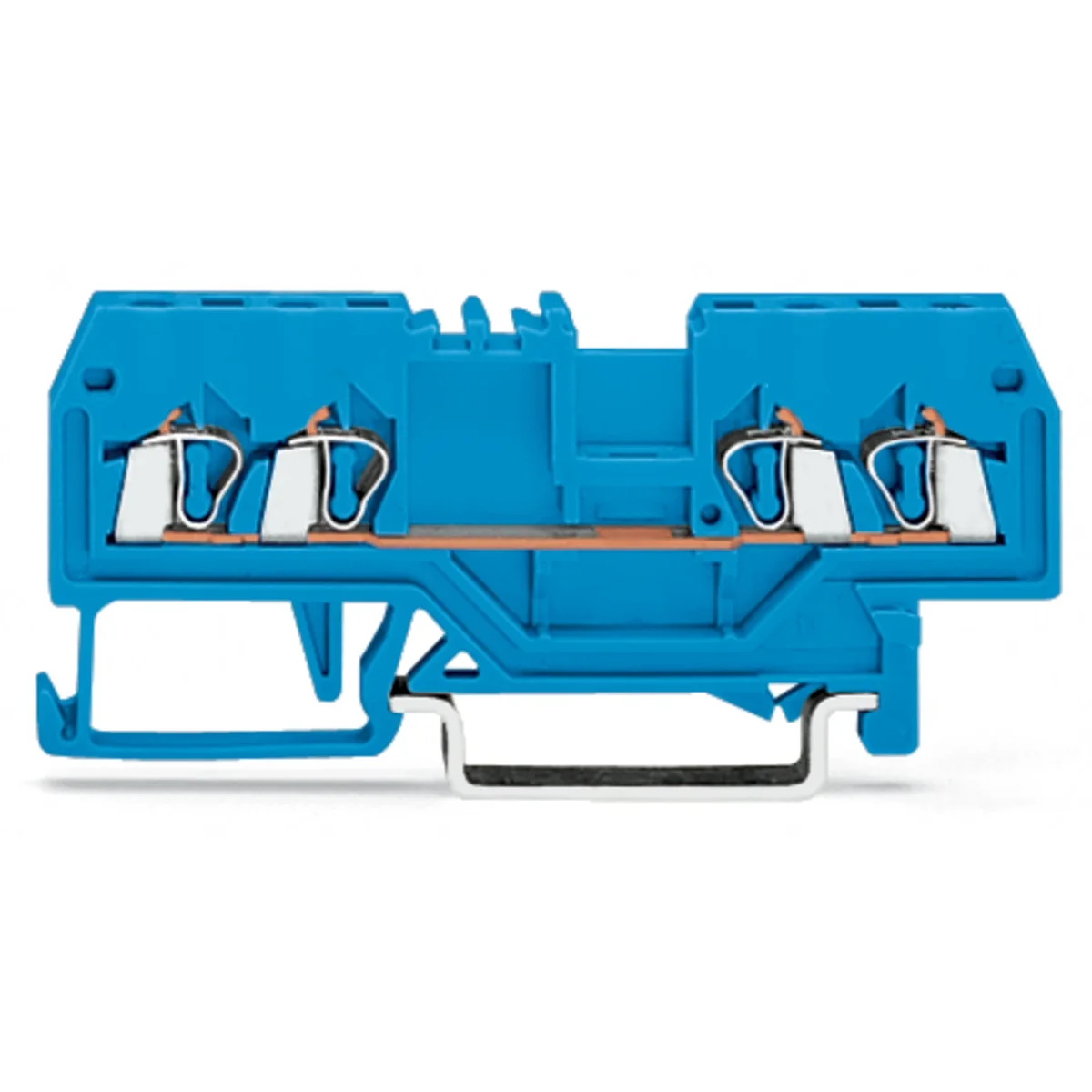

4-conductor feed-through terminal block, also suitable for use in Ex i circuits

Technical data

  • Product group
    1 (strip terminal blocks)
  • Number of potentials
    1
  • Gauge [AWG]
    28 - 16
  • Series
    279
  • Rated impulse voltage [kV]
    8
  • Number of connectors
    4
  • Color
    Blue
  • Rated current [A]
    18
  • Clamp type
    CAGE CLAMP
  • How to install the cable
    Front mounting
  • Accurate color
    Blue

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 1.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 1.5 mm²
  • Rated voltage
    800 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    4 mm
  • Length
    73 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
  • Connectable conductor cross section solid-core
    0.08 ... 1.5 mm²
  • Rated current In
    18 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    27 mm
  • Explosion-tested version 'Ex e'
    Yes
  • Colour
    Blue

Bulk packaging

A kind of package Karton
Quantity 100 pcs.
Weight (kg) 0,698
Volume (m3) 0,001
Width (m) 0,165
Length (m) 0,227
Depth (m) 0,045
