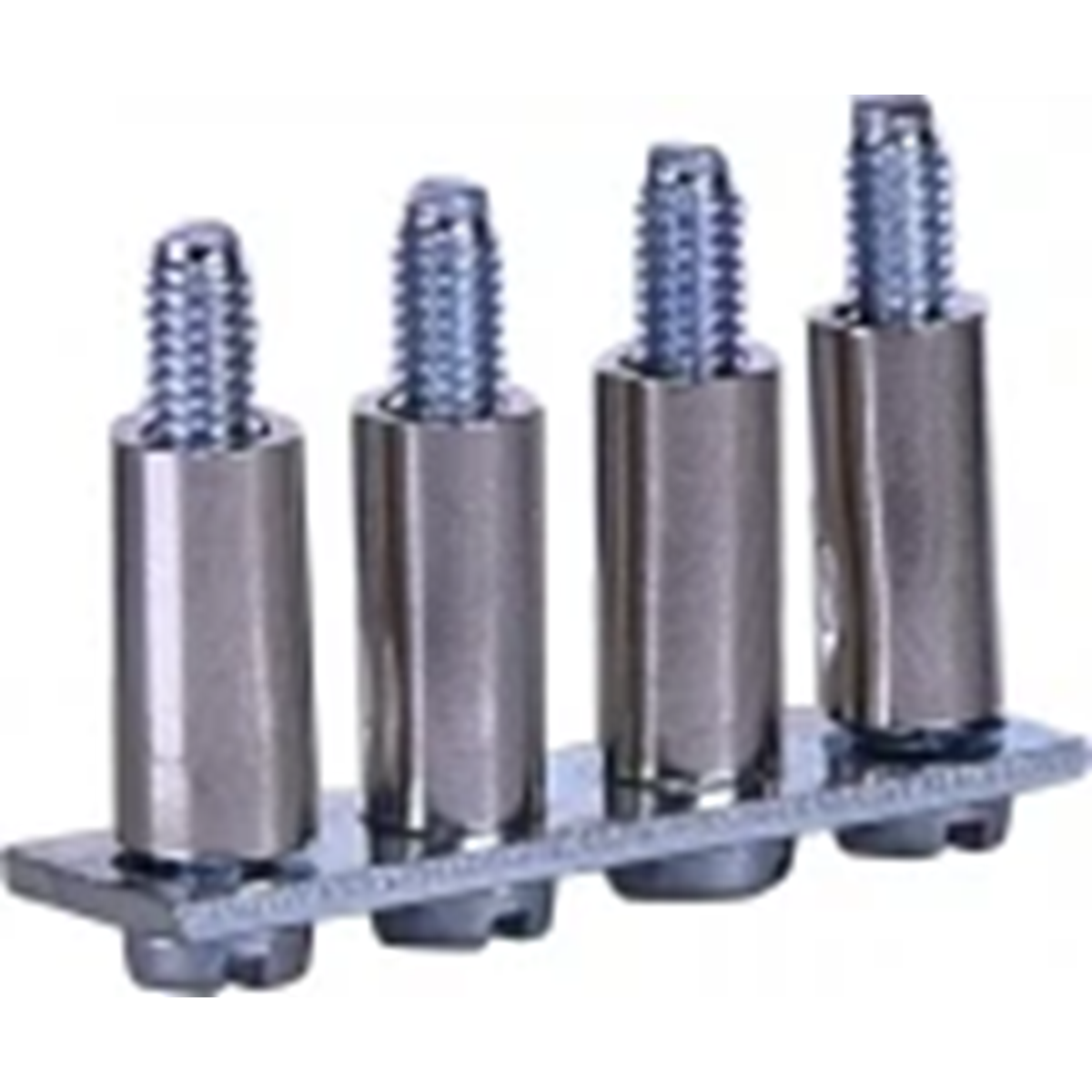

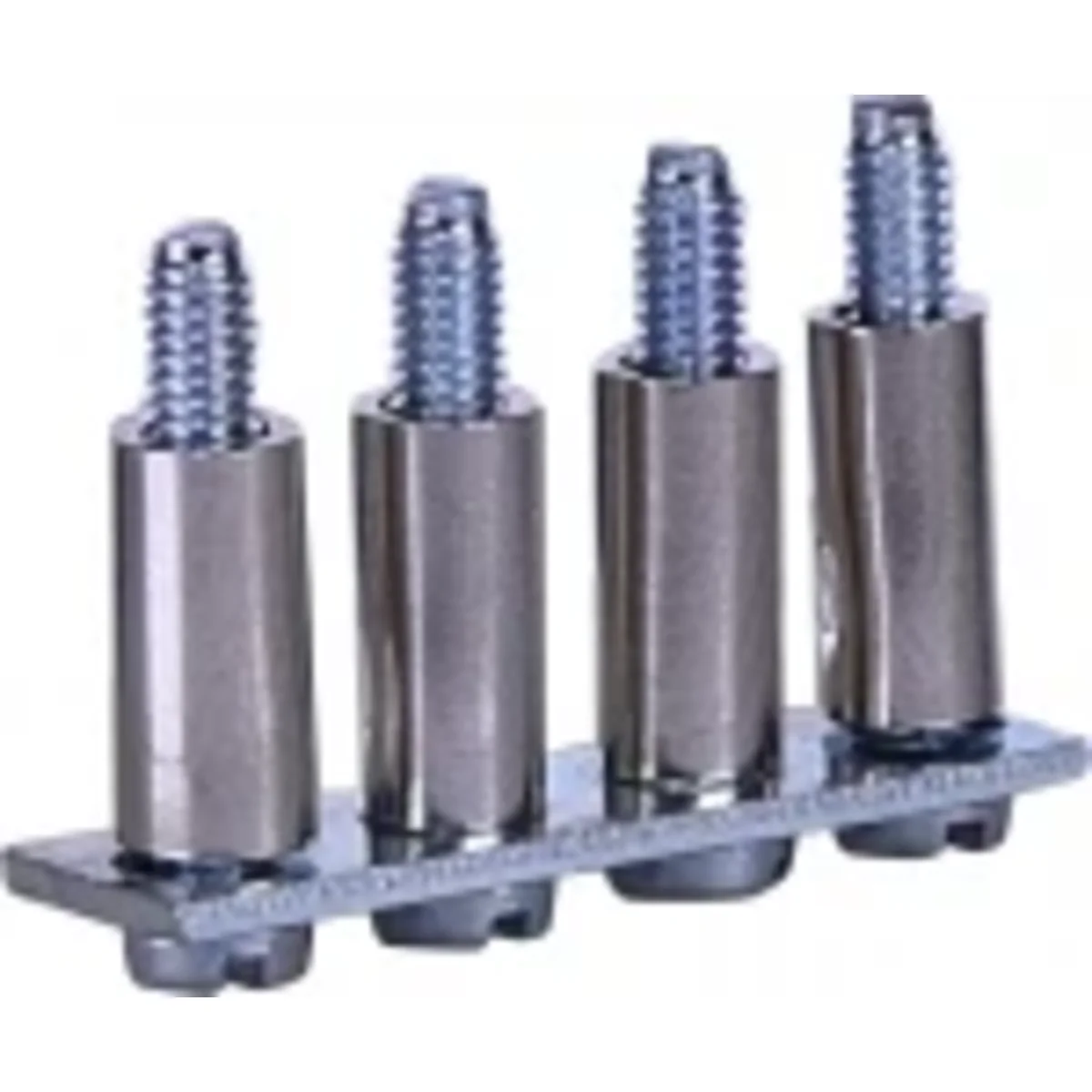

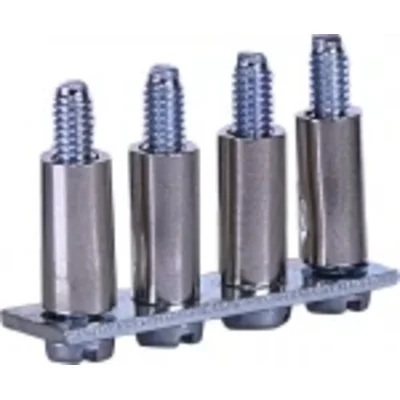

4-way short-circuiting device MP 4 4P 003901054

local index:
TES007ETIP
Catalog No:
003901054
EAN code:
5904722916142
Manufacturer: ETI POLAM
Number of tracks: 4
Number of connectors: 4
Price:
1,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

For use, among others in low-voltage panels and junction and control boxes, in order to obtain functional and safe connections of electrical wires between electrical devices. Basic parameters, the knowledge of which is necessary for the proper operation of this type of products (i.e. type of connector, rated voltage, permissible cable cross-section) are placed on each module.

Advantages:

  •  enclosures made of colored polyamide 66 (type VS) - non-flammable,
  •  rated current up to 415 A, →rated terminal cross-section from 2.5 up to 240 mm2;
  •  possibility of operation in temperatures from -40 to +100o C,
  •  possibility of bridging connectors,
  •  mounting on rail TH 15, TH 32, TH 35,
  •  the housing prevents the hand from touching live screws.

Technical data

  • Number of tracks
    4
  • PKWIU
    27.33.13.0
  • Number of connectors
    4

Other technical data

  • Model
    Wire commoning chain
  • Insulated
    No
  • Number of bridged clamps
    4
  • Mounting method
    Screwable

Bulk packaging

A kind of package Pudełko
Quantity 50 pcs.
Weight (kg) 0,245
Volume (m3) 0,000
Width (m) 0,120
Length (m) 0,105
Depth (m) 0,025
