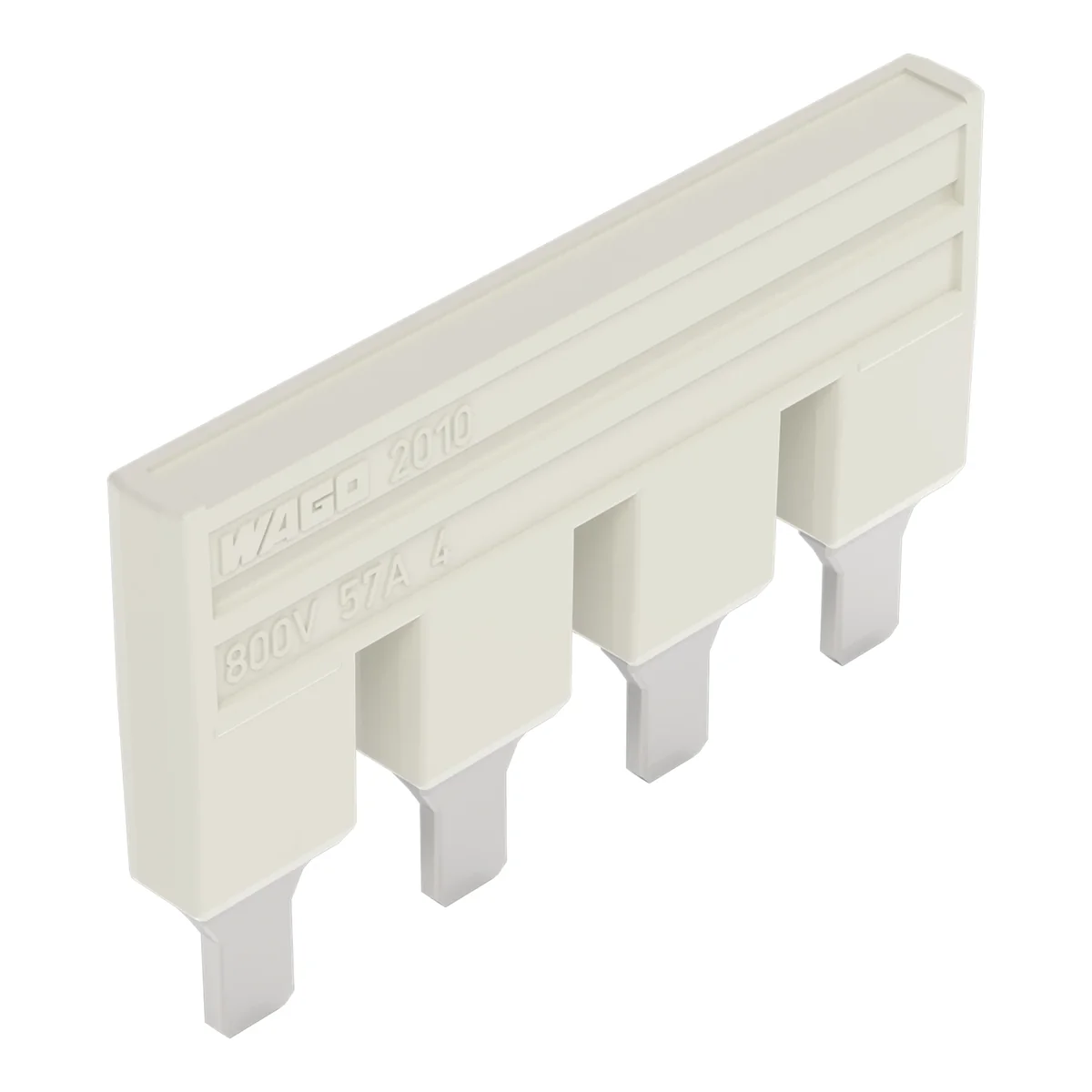

4-way comb bridge with gray insulation 2010-404

local index:
TEG077WAGO
Catalog No:
2010-404
EAN code:
4055143701976
Manufacturer: WAGO ELWAG
Depth [mm]: 23
Color: Gray
Number of bridged terminal blocks: 4
Price:
2,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 12 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The bridging system is based on the plug-socket principle. Each connector has two bridging holes, equipped with an additional spring made of chromium-nickel steel. This solution allows to reduce the dimensions of bridges made of electrolytic copper to a minimum. At the same time, their load capacity is maintained at the level of the rated current of the connector. There is also the possibility of bridging PE connectors. Own variants of bridges are created by breaking individual contact pins (series 2000, 2001, 2002, 2004).

Technical data

  • Depth [mm]
    23
  • Number of bridged terminal blocks
    4
  • Rated current [A]
    57
  • Mounting method
    plug-in
  • Height [mm]
    4.1
  • Accurate color
    light gray
  • Color
    Gray
  • Rated voltage [V]
    800
  • Family
    TopJobs
  • Width [mm]
    37.6
  • With insulation
    Yes

Other technical data

  • Model
    Transverse connector
  • Explosion-tested version 'Ex e'
    Yes
  • Rated voltage
    800 V
  • With shock protection
    Yes
  • Modular spacing
    10 mm
  • Number of bridged clamps
    4
  • Rated current In
    57 A
  • Insulated
    Yes
  • Mounting method
    Pluggable
  • Colour
    Grey

Bulk packaging

A kind of package Torebka
Quantity 25 pcs.
Weight (kg) 0,201
Volume (m3) 0,095
Width (m) 0,172
Length (m) 0,110
Depth (m) 0,005
