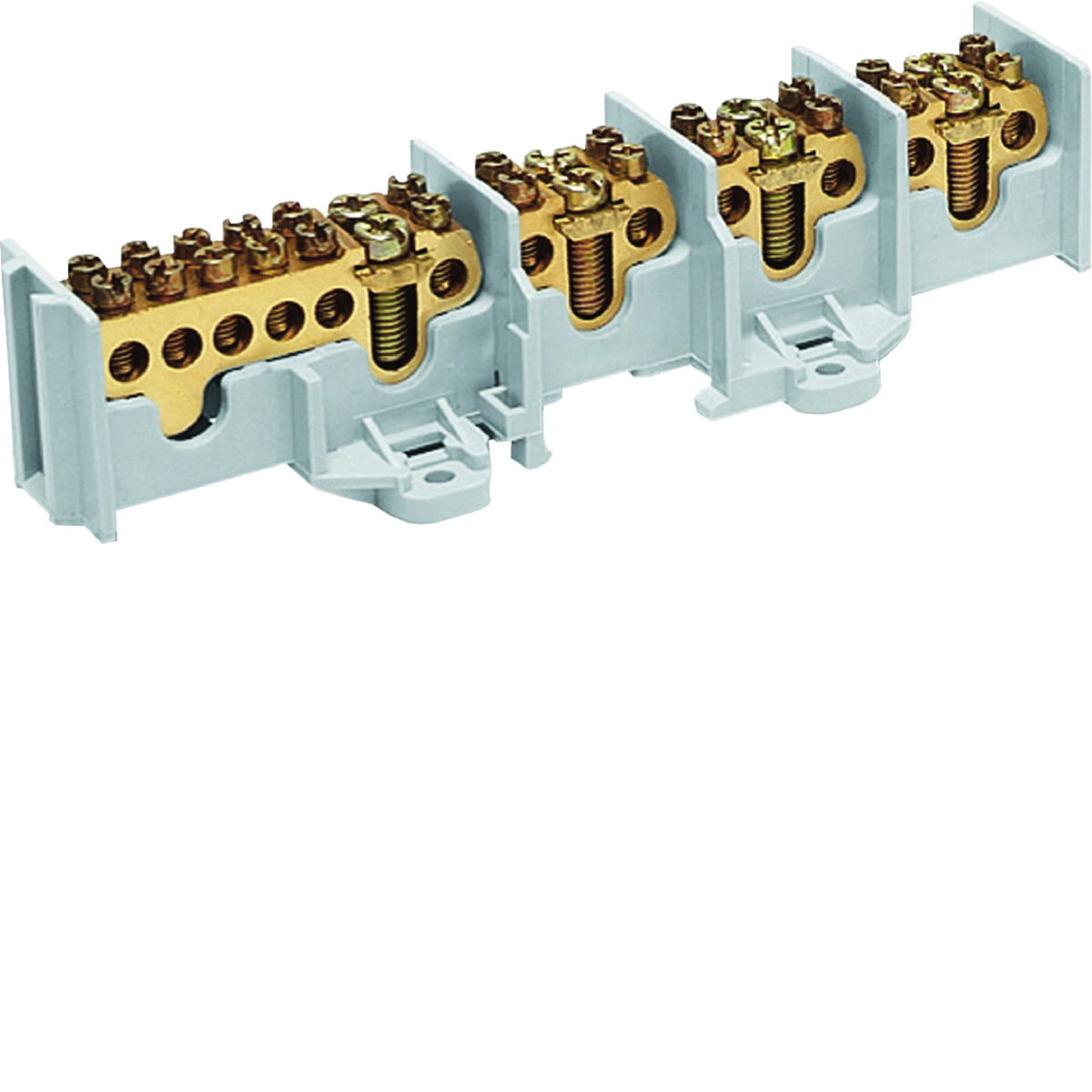

4-pole branch terminals K66A

local index:
TEG008HAGE
Catalog No:
K66A
EAN code:
4010330710407
Manufacturer: HAGER
Depth [mm]: 46
Number of poles: 4
Installation: Clamp and screw
Price:
49,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

• mounting on TS35 mounting rail, 1-, 2-pole horizontal, 4-, 5-pole horizontal and vertical
• screw heads: +/- PZ 2
• AC 400V
• brass clamps
Power:
25mm² per field, 80 A
Departure:
- for 10mm²
line - for 16mm wire²
• standards: DIN VDE 0603 part 2

Technical data

  • Depth [mm]
    46
  • Installation
    Clamp and screw
  • Width [mm]
    191
  • PKWIU
    27.33.13.0
  • Number of poles
    4
  • Rated current [A]
    100
  • Height [mm]
    60

Other technical data

  • Number of poles
    4
  • Connection type
    Screwing
  • Contact safe
    No
  • Width
    191 mm
  • Nominal current
    100 A
  • Mounting method
    Screw
  • Height
    55 mm
  • Depth
    53 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 25 pcs. 600 pcs.
Weight (kg) 0,404 0,405 10,520 277,480
Width (m) 0,057 0,060 0,275 0,800
Length (m) 0,055 0,055 0,235 1,150
Depth (m) 0,193 0,190 0,395 1,200
