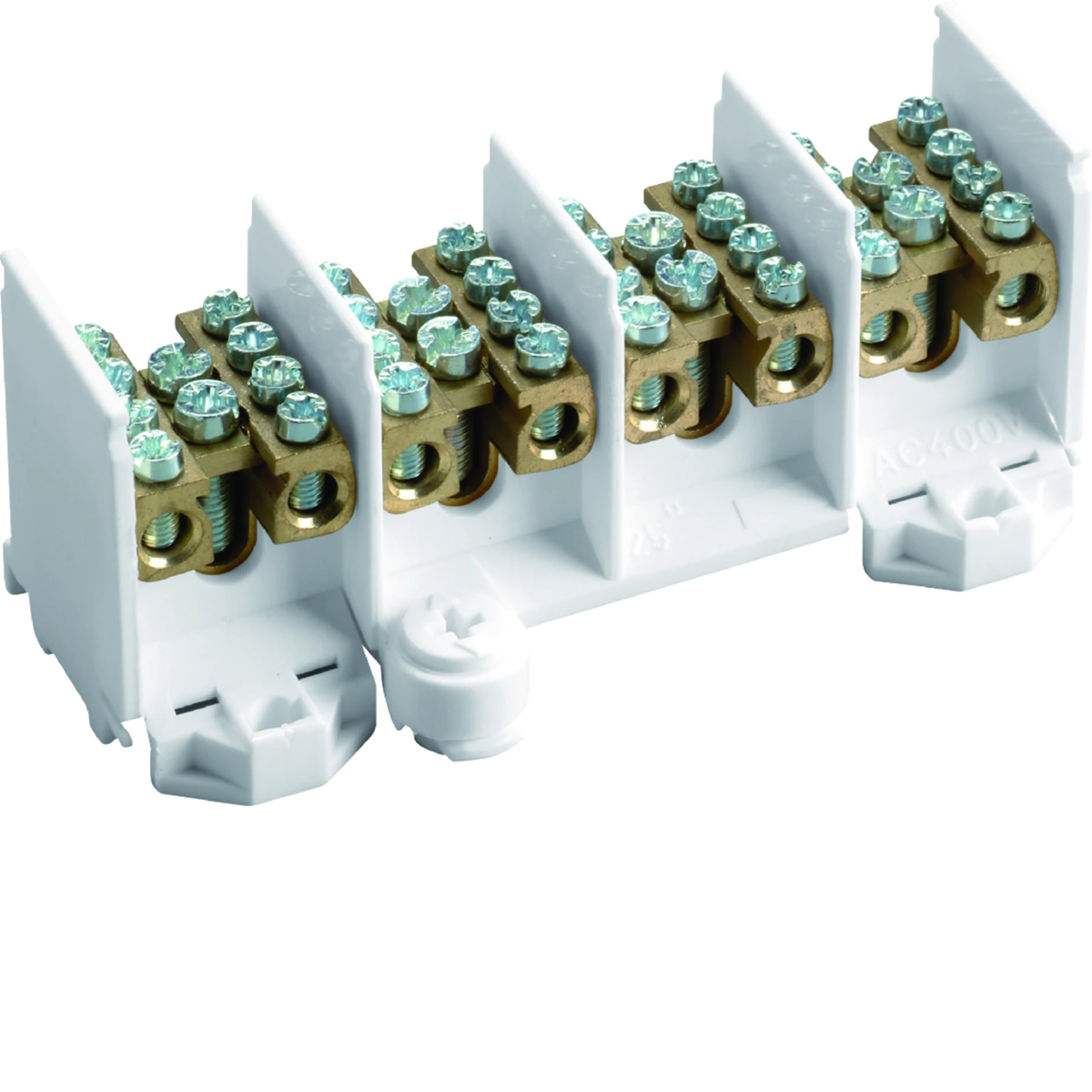

4-pole branch terminals 25/4x16mm2 K28N
local index:
TEG021HAGE
Catalog No:
K28N
EAN code:
4010330711497
Price:
37,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
• mounting on TS35 mounting rail, 1-, 2-pole horizontal, 4-, 5-pole horizontal and vertical
• screw heads: +/- PZ 2
• AC 400V
• brass clamps
Power:
25mm² per field, 80 A
Departure:
- for 10mm²
line
- for 16mm wire²
• standards: DIN VDE 0603 part 2
Technical data
-
Depth [mm]49
-
InstallationClamp and screw
-
Width [mm]119
-
PKWIU27.33.13.0
-
Number of poles4
-
Rated current [A]80
-
Height [mm]62
Other technical data
-
Number of poles4
-
Connection typeScrewing
-
Contact safeNo
-
Width119 mm
-
Nominal current80 A
-
Mounting methodScrew
-
Height62 mm
-
Depth49 mm
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 5 pcs. | 960 pcs. |
| Weight (kg) | 0,315 | 1,660 | 341,720 |
| Width (m) | 0,060 | 0,165 | 0,800 |
| Length (m) | 0,050 | 0,065 | 0,870 |
| Depth (m) | 0,120 | 0,260 | 1,200 |
