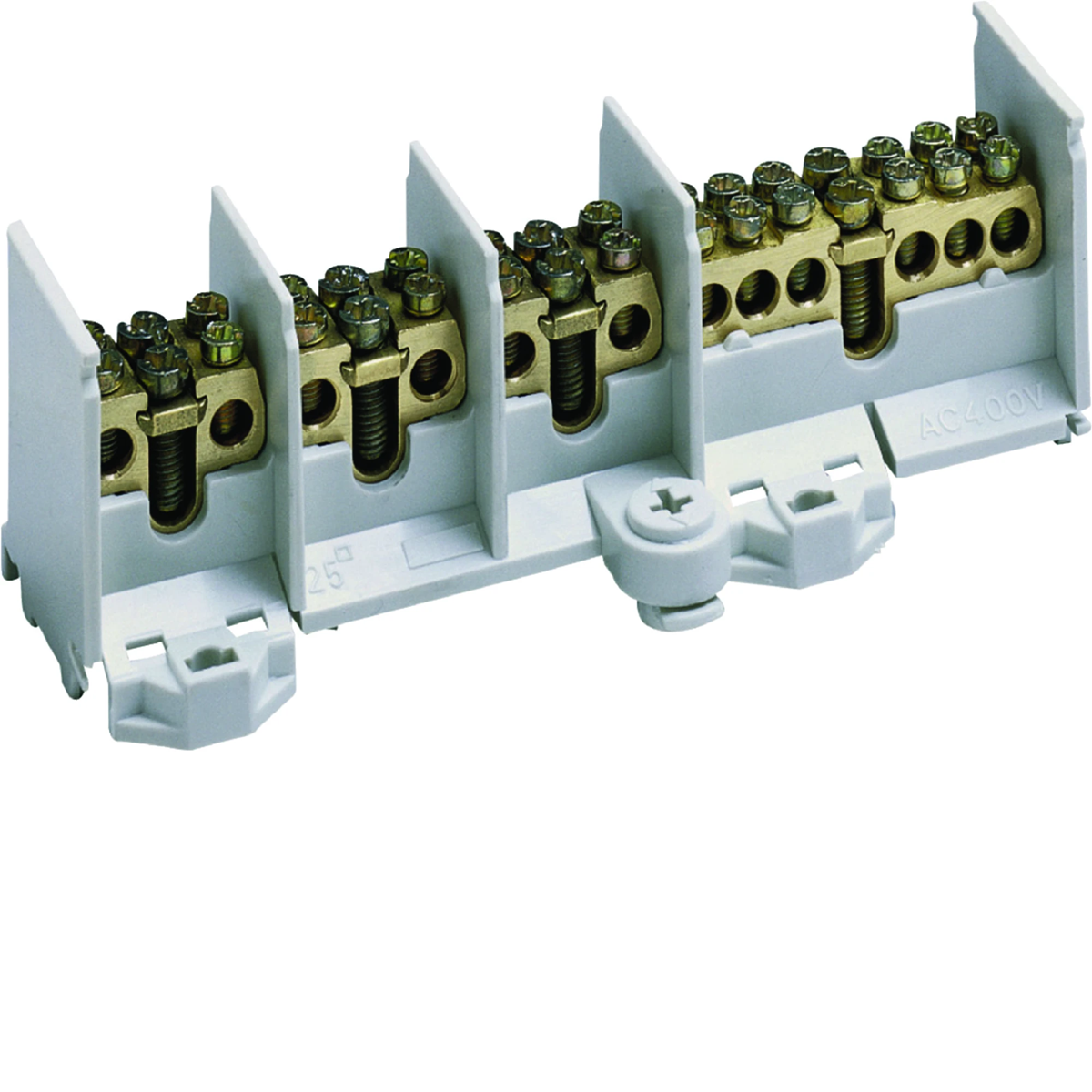

4-pole branch terminals 25/2x16mm2 K37N

local index:
TEG020HAGE
Catalog No:
K37N
EAN code:
4010330711527
Manufacturer: HAGER
Depth [mm]: 49
Number of poles: 4
Installation: Clamp and screw
Price:
27,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

• mounting on TS35 mounting rail, 1-, 2-pole horizontal, 4-, 5-pole horizontal and vertical
• screw heads: +/- PZ 2
• AC 400V
• brass clamps
Power:
25mm² per field, 80 A
Departure:
- for 10mm²
line - for 16mm wire²
• standards: DIN VDE 0603 part 2

Technical data

  • Depth [mm]
    49
  • Installation
    Clamp and screw
  • Width [mm]
    148
  • PKWIU
    27.33.13.0
  • Number of poles
    4
  • Rated current [A]
    80
  • Height [mm]
    62

Other technical data

  • Number of poles
    4
  • Connection type
    Screwing
  • Contact safe
    No
  • Width
    148 mm
  • Nominal current
    80 A
  • Mounting method
    Screw
  • Height
    62 mm
  • Depth
    49 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 5 pcs. 960 pcs.
Weight (kg) 0,273 1,370 286,040
Width (m) 0,160 0,160 0,800
Length (m) 0,040 0,070 0,950
Depth (m) 0,070 0,260 1,200
