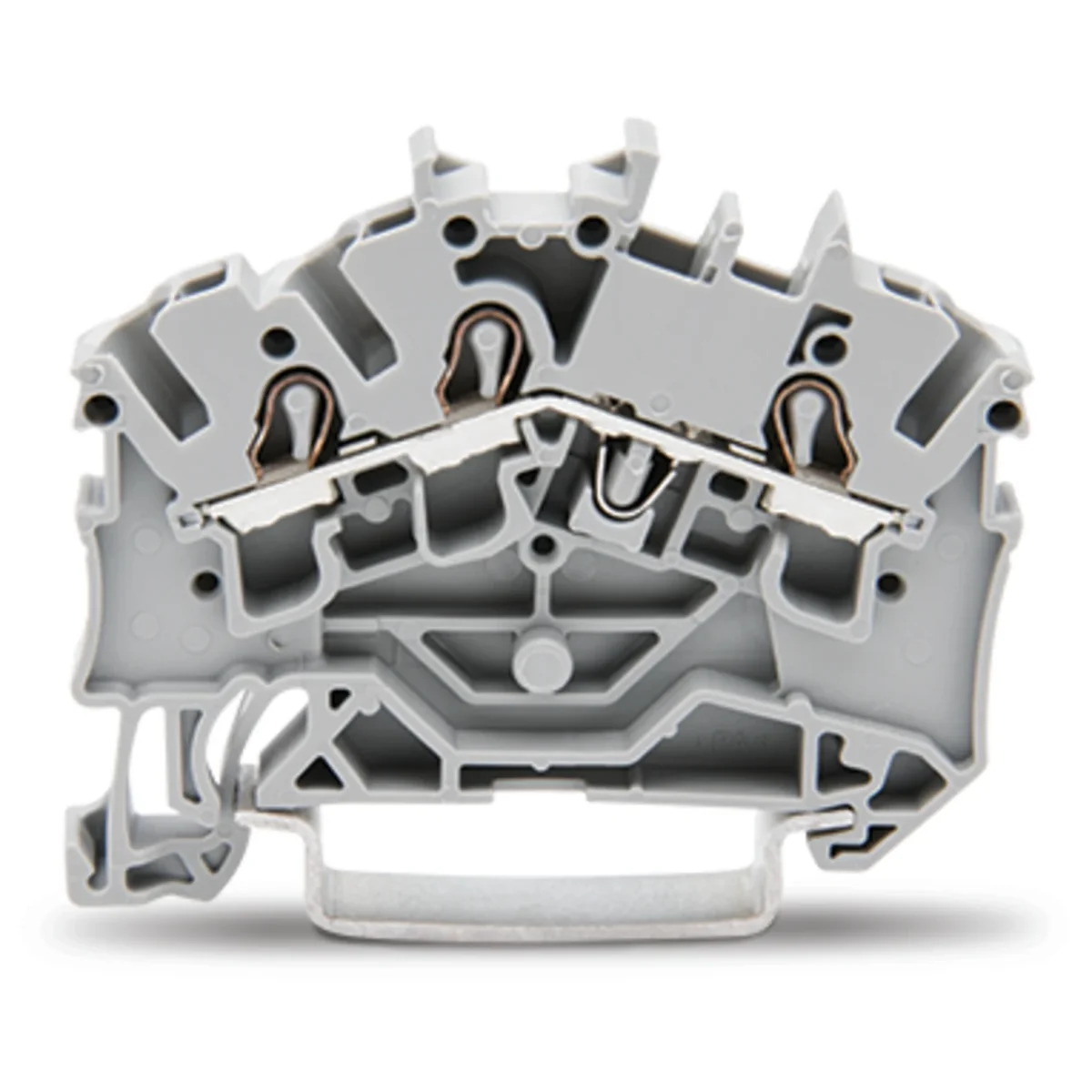

3-wire terminal block 2.5mm² TOPJOBS gray 100pcs 2002-6301
local index:
TEG220WAGO
Catalog No:
2002-6301
EAN code:
4044918964920
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Color:
Gray
Number of potentials:
1
Rated current [A]:
32
See full description
Price:
97,83 €
gross / pkg.
(including VAT 23%)
0,98 € gross/pcs.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Three-conductor Ex e II pass-through terminal block
Technical data
Color
Gray
Rated current [A]
32
Series
2002
Dirt zone
3
Rated impulse voltage [kV]
8
Number of connectors
3
Number of potentials
1
Clamp type
CAGE CLAMP S clamp
How to install the cable
Front mounting
Pieces in the package
100
Accurate color
Gray
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.25 ... 4 mm²
Connectable conductor cross section solid-core
0.75 ... 4 mm²
Rated current In
24 A
Type of electrical connection 1
Spring clamp connection
Connection position
Inclined
Number of clamp positions per level
3
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
38.9 mm
Explosion-tested version 'Ex e'
No
Colour
Grey
Connectable conductor cross section fine-strand with cable end sleeve
0.75 ... 2.5 mm²
Connectable conductor cross section multi-wired
0.25 ... 2.5 mm²
Rated voltage
800 V
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
5.2 mm
Length
52 mm
Closing plate required
Yes
Internally connected stages
No
Bulk packaging
A kind of package
Karton
Quantity
1 pkg.
Weight (kg)
0,620
Volume (m3)
0,002
Width (m)
0,110
Length (m)
0,275
Depth (m)
0,050
