3-wire PE connector 6 mm², yellow-green 2006-1307 2006-1307

Name: 3-wire PE connector 6 mm², yellow-green 2006-1307
Brand: WAGO ELWAG
SKU: TEB465WAGO
Price: 20.96 PLN
Availability: BackOrder

local index:

TEB465WAGO

Catalog number:

2006-1307

EAN code:

4017332999717

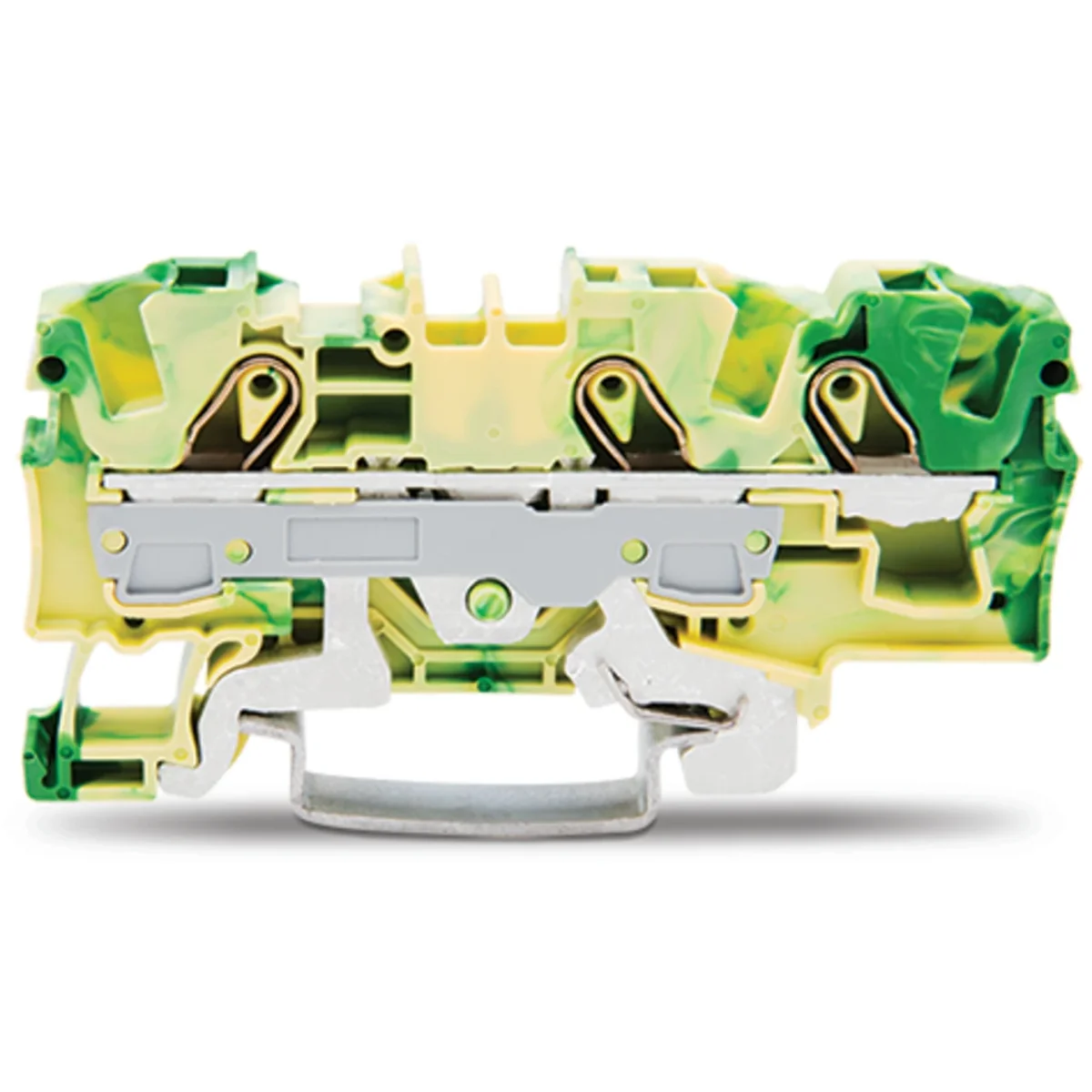

3-wire PE connector 6 mm², yellow-green 2006-1307

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Price:

20,96 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Other technical data

PEN function possible

Yes
Connectable conductor cross section fine-strand with cable end sleeve

1.5 ... 6 mm²
Connectable conductor cross section multi-wired

0.5 ... 6 mm²
Type of electrical connection 2

Spring clamp connection
Number of clamp positions per level

3
Material insulation body

Thermoplastic
Width

7.5 mm
Depth

32.9 mm
Colour

Green/yellow

Connectable conductor cross section fine-strand without cable end sleeve

0.5 ... 10 mm²
Connectable conductor cross section solid-core

1 ... 10 mm²
Type of electrical connection 1

Spring clamp connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Height

73.3 mm
Closing plate required

Yes

Manufacturer details

Manufacturer

WAGO GmbH & Co. KG
Address

32423 Minden Hansastraße 27 Niemcy
E-mail

wago.elwag@wago.com

Bulk packaging

A kind of package	Karton
Quantity	25 pcs.
Weight (kg)	0,549
Volume (m3)	0,001
Width (m)	0,094
Length (m)	0,222
Depth (m)	0,048
