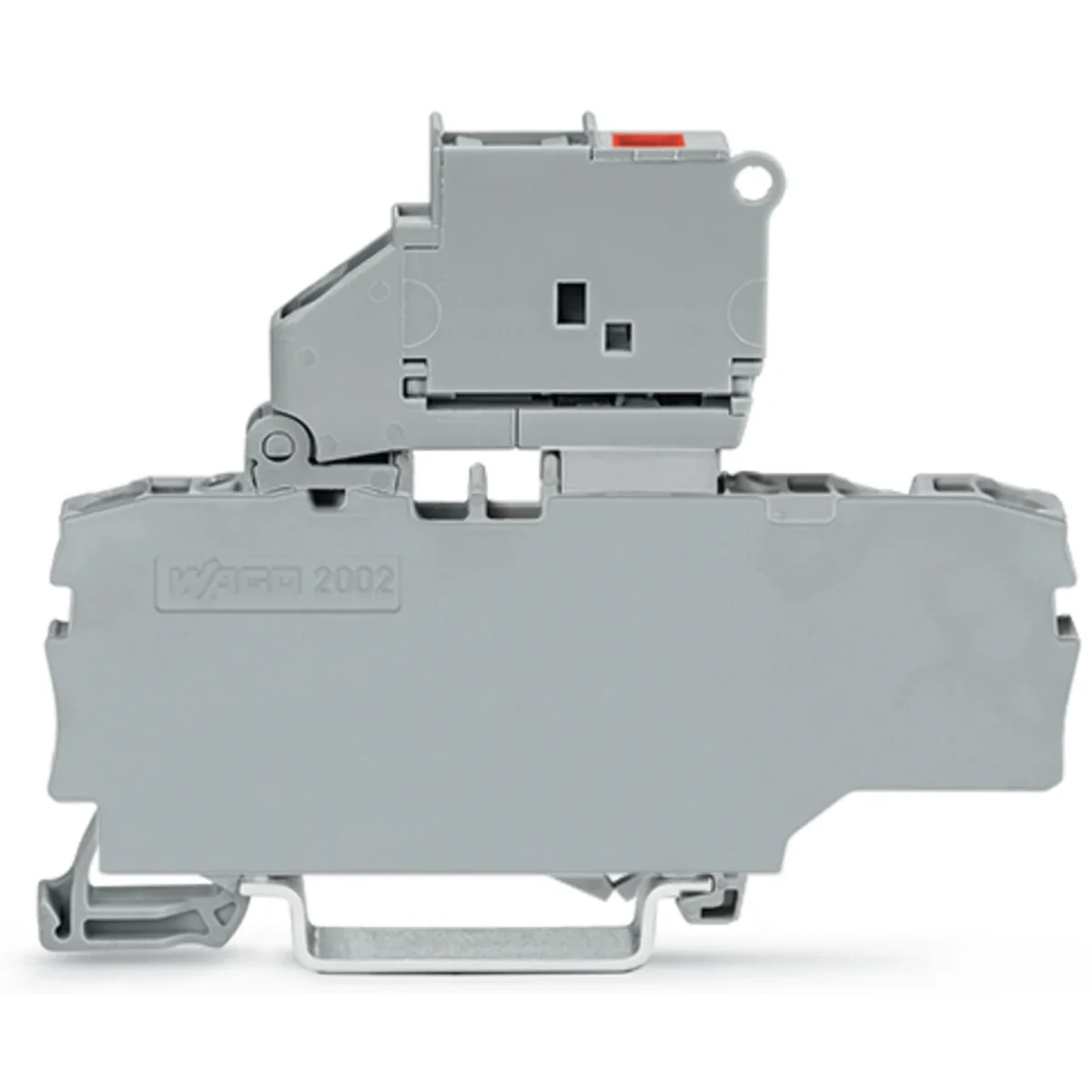

3-wire fuse terminal block with hinged fuse holder with end plate, gray 2002-1711/1000-541 2002-1711/1000-541

Name: 3-wire fuse terminal block with hinged fuse holder with end plate, gray 2002-1711/1000-541
Brand: WAGO ELWAG
SKU: TEE008WAGO
Price: 53.01 PLN
Availability: BackOrder

Índice local:

TEE008WAGO

Número de catálogo:

2002-1711/1000-541

Código EAN:

4066966335569

3-wire fuse terminal block with hinged fuse holder with end plate, gray 2002-1711/1000-541

Haga clic en la foto para ampliar

Fabricante: WAGO ELWAG

Precio:

53,01 zł

gross / uds.

(IVA incluido 23%)

2 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Empaquetado a granel

Datos técnicos

Otros datos técnicos

Type of fuse insert

G-fuse 5x20 mm
Type of indication element for defect indication

LED
Voltage type for defect indication

AC
Connectable conductor cross section fine-strand with cable end sleeve

0.75 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.25 ... 2.5 mm²
Rated voltage

250 V
Type of electrical connection 2

Spring clamp connection
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Height

76.8 mm
Closing plate required

No

Type of fuse holder

Swivelling
Supply voltage for defect-indication

12 ... 30 V
Connectable conductor cross section fine-strand without cable end sleeve

0.25 ... 4 mm²
Connectable conductor cross section solid-core

0.75 ... 4 mm²
Rated current In

6.3 A
Type of electrical connection 1

Spring clamp connection
Number of levels

1
Material insulation body

Thermoplastic
Width

6.2 mm
Depth

57.6 mm
Colour

Grey

Detalles del fabricante

Fabricante

WAGO GmbH & Co. KG
Dirección

32423 Minden Hansastraße 27 Niemcy
Email

wago.elwag@wago.com

Empaquetado a granel

una especie de paquete	Karton
Cantidad	50 uds.
Peso (kg)	0,820
Volumen (m3)	0,002
Ancho (m)	0,095
Longitud (m)	0,355
Profundidad (m)	0,070
