Connecting cables and wires
Connectors
Rail connectors

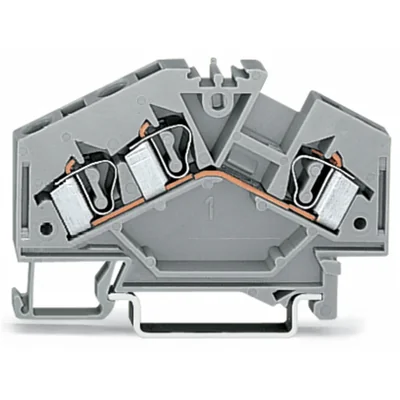

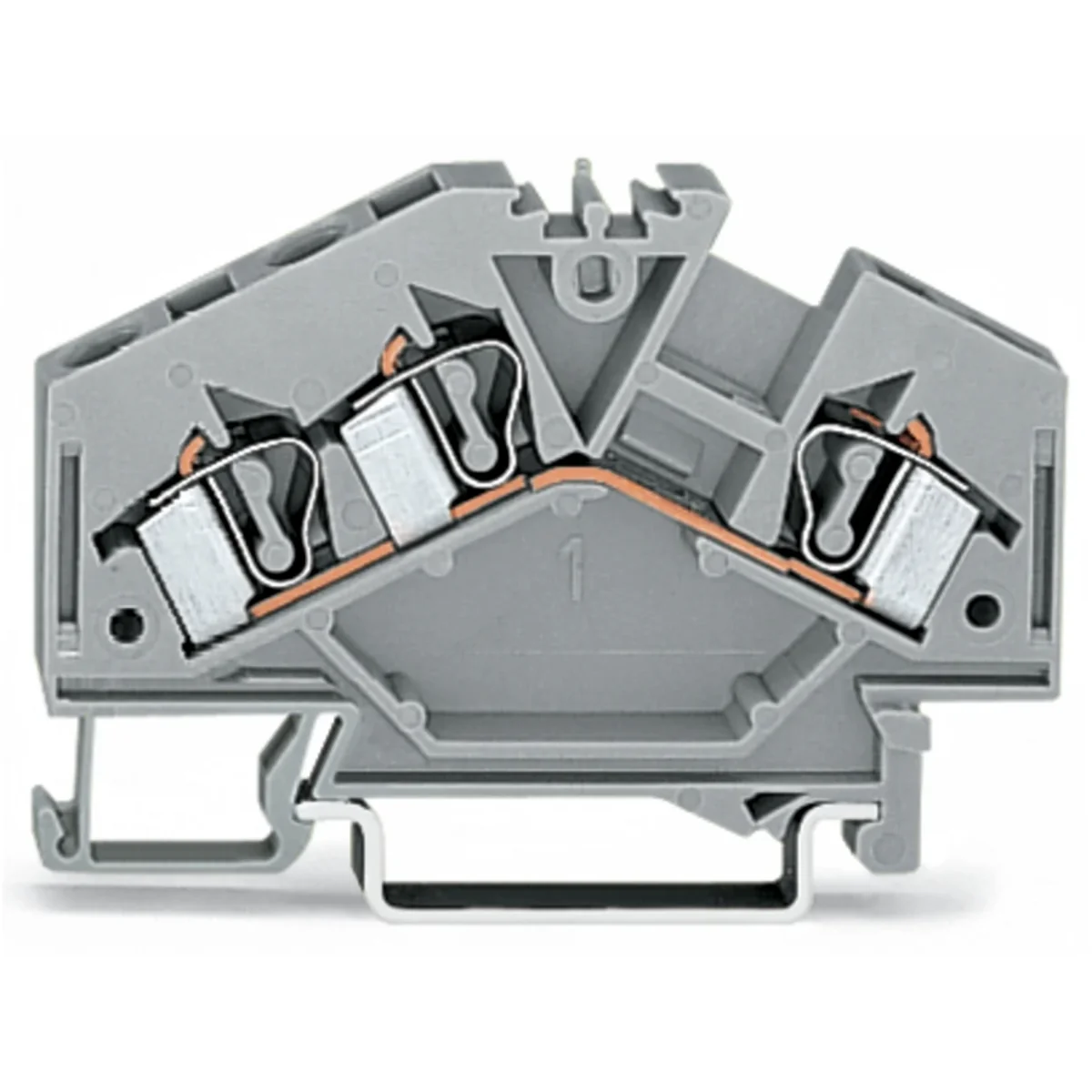

3-wire connector 4mm² gray 100pcs 281-631
local index:
TES170WAGO
Catalog No:
281-631
EAN code:
4044918323871
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Color:
Gray
Rated current [A]:
32
Gauge [AWG]:
2014-12-28 00:00:00
See full description
Price:
144,01 €
gross / pkg.
(including VAT 23%)
1,44 € gross/pcs.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Three-wire feed-through terminal.
Technical data
Color
Gray
Gauge [AWG]
2014-12-28 00:00:00
Series
281
Dirt zone
3
Weight [g]
10.401
Accurate color
Gray
Rated current [A]
32
Clamp type
CAGE CLAMP
How to install the cable
Angular
Pieces in the package
100
Rated impulse voltage [kV]
8
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.08 ... 4 mm²
Connectable conductor cross section multi-wired
0.08 ... 4 mm²
Rated voltage
800 V
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
6 mm
Length
61.5 mm
Closing plate required
Yes
Internally connected stages
No
Connectable conductor cross section solid-core
0.08 ... 4 mm²
Rated current In
32 A
Type of electrical connection 1
Spring clamp connection
Connection position
Inclined
Number of clamp positions per level
3
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
37 mm
Explosion-tested version 'Ex e'
No
Colour
Grey
Bulk packaging
A kind of package
Karton
Quantity
1 pkg.
Weight (kg)
1,095
Volume (m3)
0,002
Width (m)
0,141
Length (m)
0,336
Depth (m)
0,052
