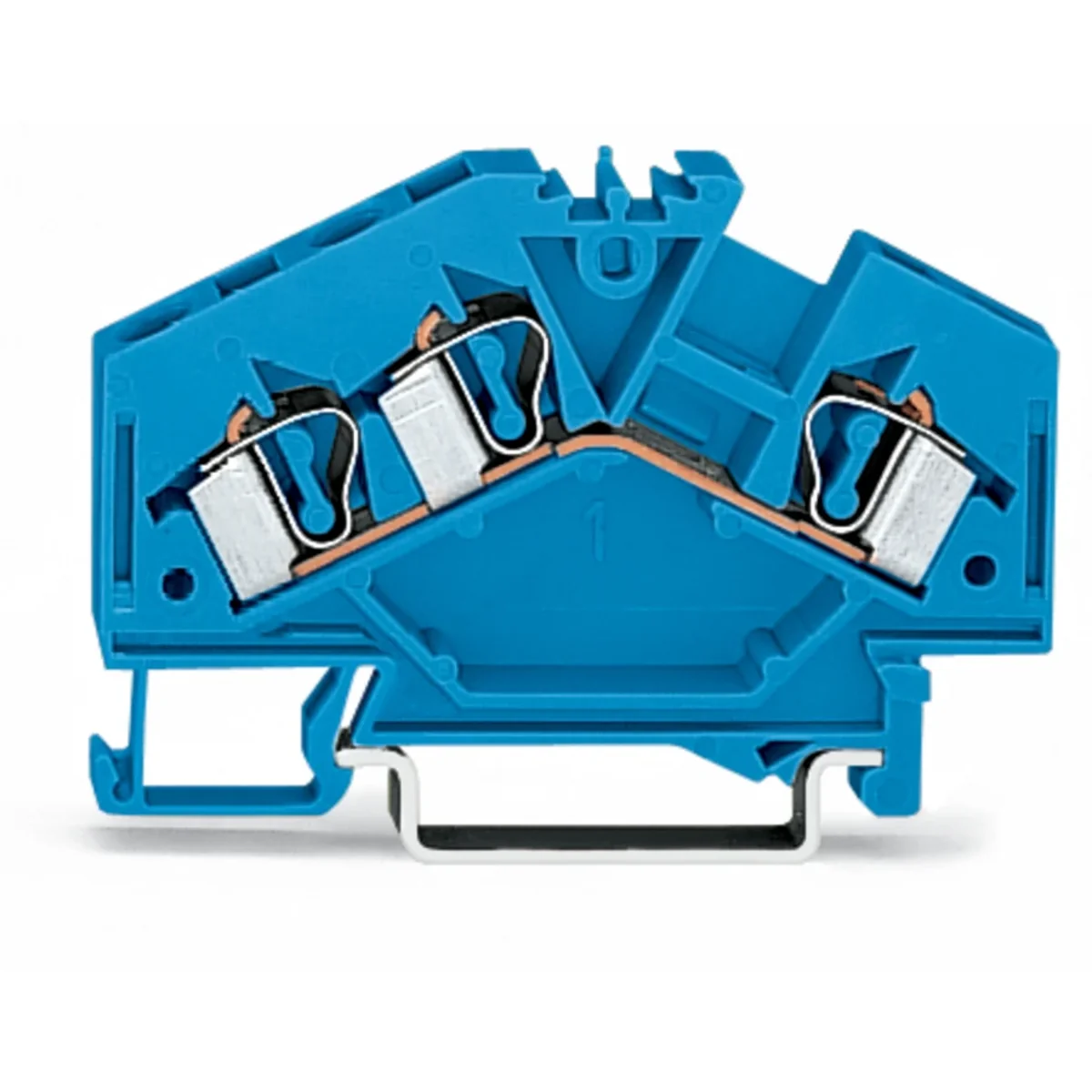

3-wire connector 4mm² blue 281-651

local index:
TES056WAGO
Catalog No:
281-651
EAN code:
4044918323901
Manufacturer: WAGO ELWAG
Stripping length [mm]: 0.37
Depth [mm]: 61.5
Color: Blue
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
0,80 €
gross / pcs.
(including VAT 23%)
Last lowest price: 0,80 € gross
Base price: 2,45 € gross -67%
Delivery in 3h
Accessible 13 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

3-wire connector 4 mm2 blue

Technical data

  • Stripping length [mm]
    0.37
  • Color
    Blue
  • Number of potentials
    1
  • Surge voltage [kV]
    8
  • Fire load [MJ]
    0.185
  • Rated current [A]
    32
  • Type of wiring
    Front wiring
  • Degree of contamination
    3
  • Wire connection technique
    CAGE CLAMP
  • Height [mm]
    37
  • Maximum stripping length [mm]
    10
  • Number of connectors
    3
  • Depth [mm]
    61.5
  • Construction
    Angled design
  • Installation
    On the TH-35 rail
  • Rated voltage EN [V]
    800
  • The plane of description
    Description in the middle
  • Gauge [AWG]
    28
  • Series
    281
  • Width [mm]
    6
  • Weight [g]
    10.218
  • Accurate color
    Blue
  • Minimum stripping length [mm]
    9

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 4 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 4 mm²
  • Rated voltage
    800 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    6 mm
  • Length
    61.5 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
  • Connectable conductor cross section solid-core
    0.08 ... 4 mm²
  • Rated current In
    32 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Inclined
  • Number of clamp positions per level
    3
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    37 mm
  • Explosion-tested version 'Ex e'
    Yes
  • Colour
    Blue

Bulk packaging

A kind of package Karton
Quantity 100 pcs.
Weight (kg) 1,097
Volume (m3) 0,002
Width (m) 0,141
Length (m) 0,336
Depth (m) 0,052
