el12 Connecting cables and wires Connectors Screwless connectors 3-wire connector 2.5mm² orange 100pcs
el12 sale What WAGO will connect... 3-wire connector 2.5mm² orange 100pcs
3-wire connector 2.5mm² orange 100pcs
3-wire connector 2.5mm² orange 100pcs

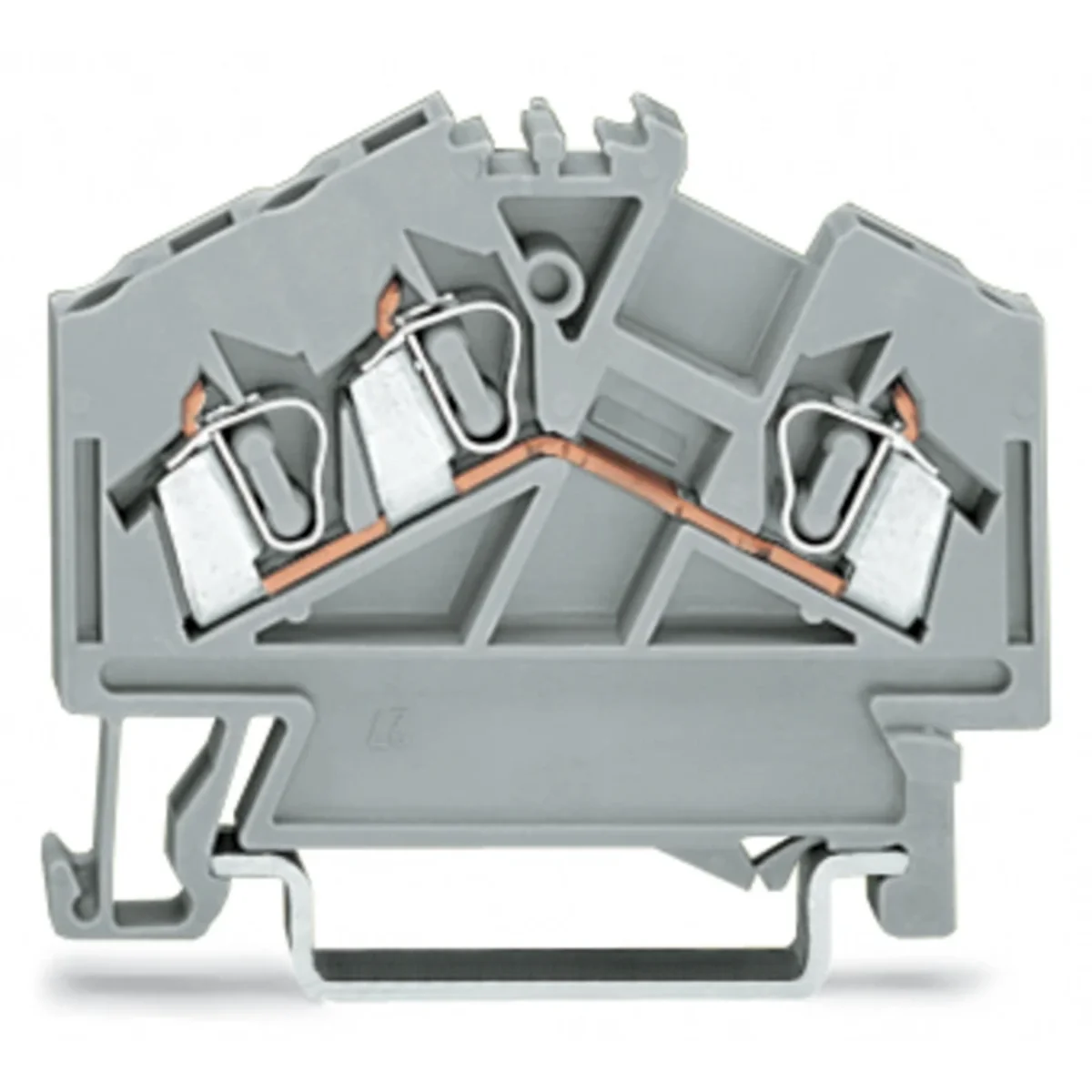

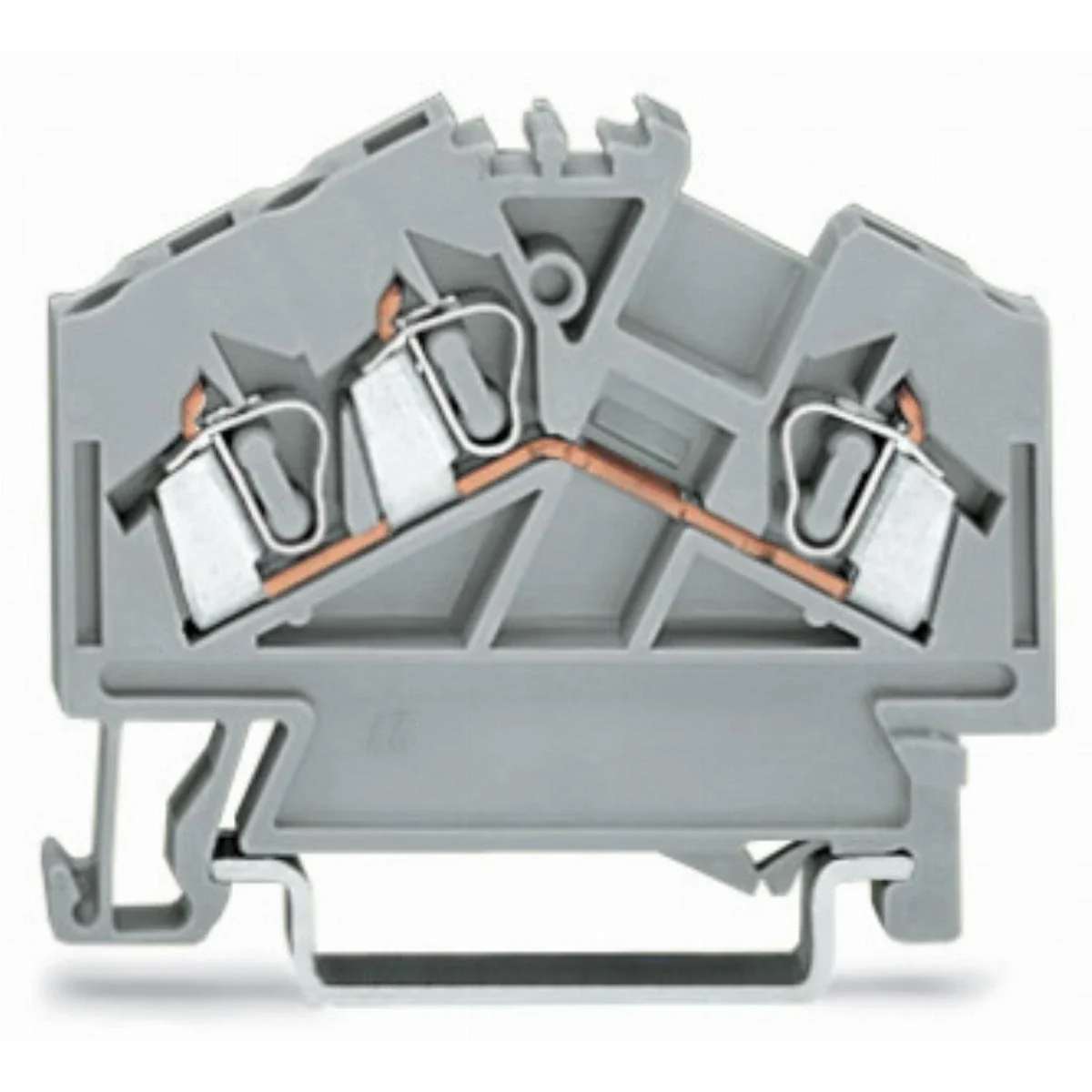

Click on the photo to enlarge

3-wire connector 2.5mm² orange 100pcs
3-wire connector 2.5mm² orange 100pcs
WAGO ELWAG

3-wire connector 2.5mm² orange 100pcs 280-654

local index:
TEB144WAGO
Catalog No:
280-654
EAN code:
4044918325936
Price:
127,97 €
gross / pkg.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,49 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

3-wire connector 2.5 mm2 orange

Print the product sheet Report an error

Technical data

  • Stripping length [mm]
    0.33
  • Color
    Silver
  • Number of poles
    3
  • Installation
    On the TH-35 rail
  • Rated voltage EN [V]
    800
  • The plane of description
    Description in the middle
  • Gauge [AWG]
    28
  • Series
    280
  • Width [mm]
    5
  • Wire connection technique
    CAGE CLAMP®
  • Height [mm]
    28
  • Maximum stripping length [mm]
    9
  • Number of connectors
    3
  • Depth [mm]
    64
  • Construction
    Horizontal design
  • Total number of potentials
    1
  • Surge voltage [kV]
    8
  • Fire load [MJ]
    0.123
  • Rated current [A]
    24
  • Type of wiring
    Front wiring
  • Degree of contamination
    3
  • Pieces in the package
    100
  • Weight [g]
    7,576
  • Accurate color
    Orange
  • Minimum stripping length [mm]
    8

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 2.5 mm²
  • Rated voltage
    800 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    5 mm
  • Length
    50.5 mm
  • Closing plate required
    yes
  • Internally connected stages
    no
  • Connectable conductor cross section solid-core
    0.08 ... 2.5 mm²
  • Rated current In
    24 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Inclined
  • Number of clamp positions per level
    3
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    36.5 mm
  • Explosion-tested version 'Ex e'
    no
  • Colour
    Orange
