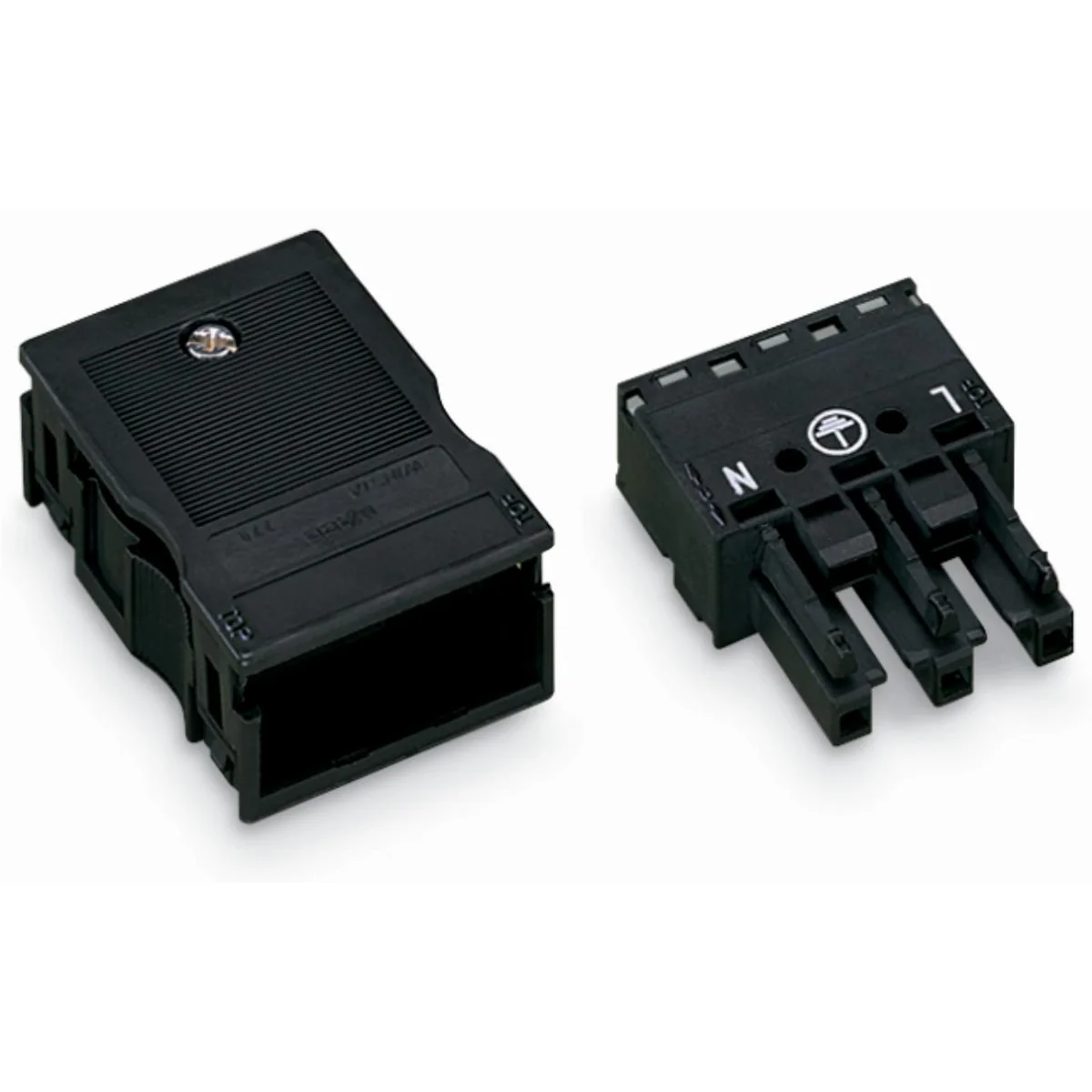

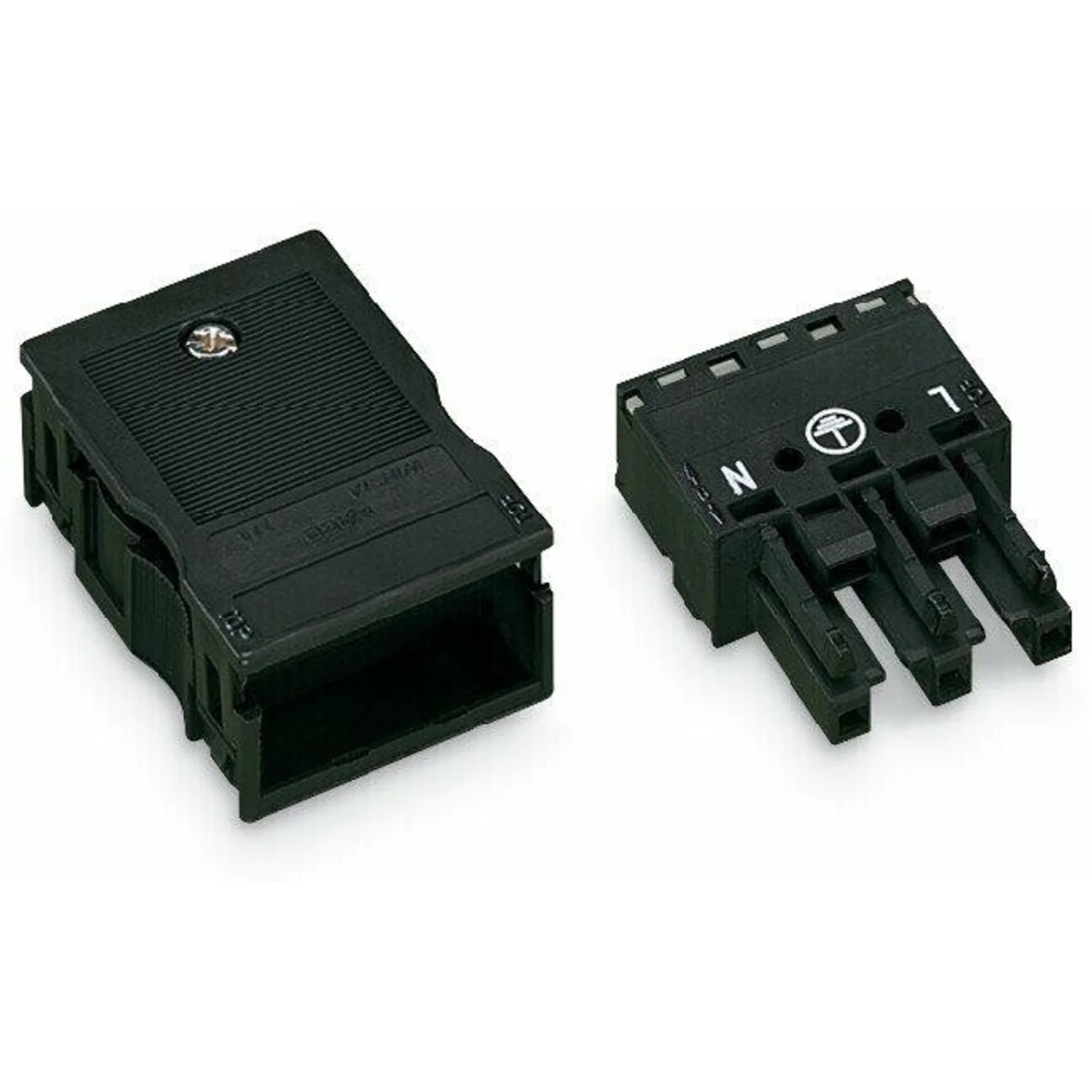

3-way socket with strain relief housing WINSTA black 770-103

local index:
TEB533WAGO
Catalog No:
770-103
EAN code:
4044918252096
3-way socket with strain relief housing WINSTA black
3-way socket with strain relief housing WINSTA black
3-way socket with strain relief housing WINSTA black
3-way socket with strain relief housing WINSTA black
3-way socket with strain relief housing WINSTA black
3-way socket with strain relief housing WINSTA black
3-way socket with strain relief housing WINSTA black
3-way socket with strain relief housing WINSTA black

Click on the photo to enlarge

Manufacturer: WAGO ELWAG
Number of sockets: 6
Number of tracks: 3
Color: Gray
See full description
Price:
6,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

Socket with housing protecting the wires against pulling out 3-way pitch 10 mm/0.394 in full protection against wrong plugging wire diameter 8-12 mm

Technical data

  • Number of sockets
    6
  • Color
    Gray
  • Rated current [A]
    25
  • Clamp type
    CAGE CLAMP S clamp
  • Dirt zone
    3
  • Accurate color
    Gray
  • Number of tracks
    3
  • Number of potentials
    3
  • Gauge [AWG]
    2014-12-24 00:00:00
  • Series
    770
  • Rated impulse voltage [kV]
    4

Other technical data

  • Rated voltage
    250 V
  • Number of poles
    3
  • Connection type
    Spring clamp connection
  • Cable diameter
    8 ... 11.5 mm
  • Connection cross section (solid-core)
    0.5 ... 4 mm²
  • Pole codification
    L, N, PE
  • Colour coding/contact insert
    Black
  • With strain relief
    Yes
  • Max. continuous temperature resistance strain relief
    105 °C
  • Halogen free
    No
  • Surface treatment contacts
    Other
  • Continuity resistance
    3 mΩ

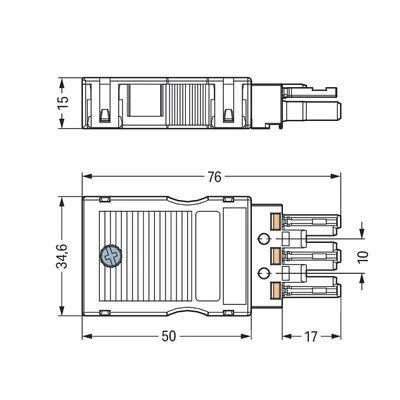

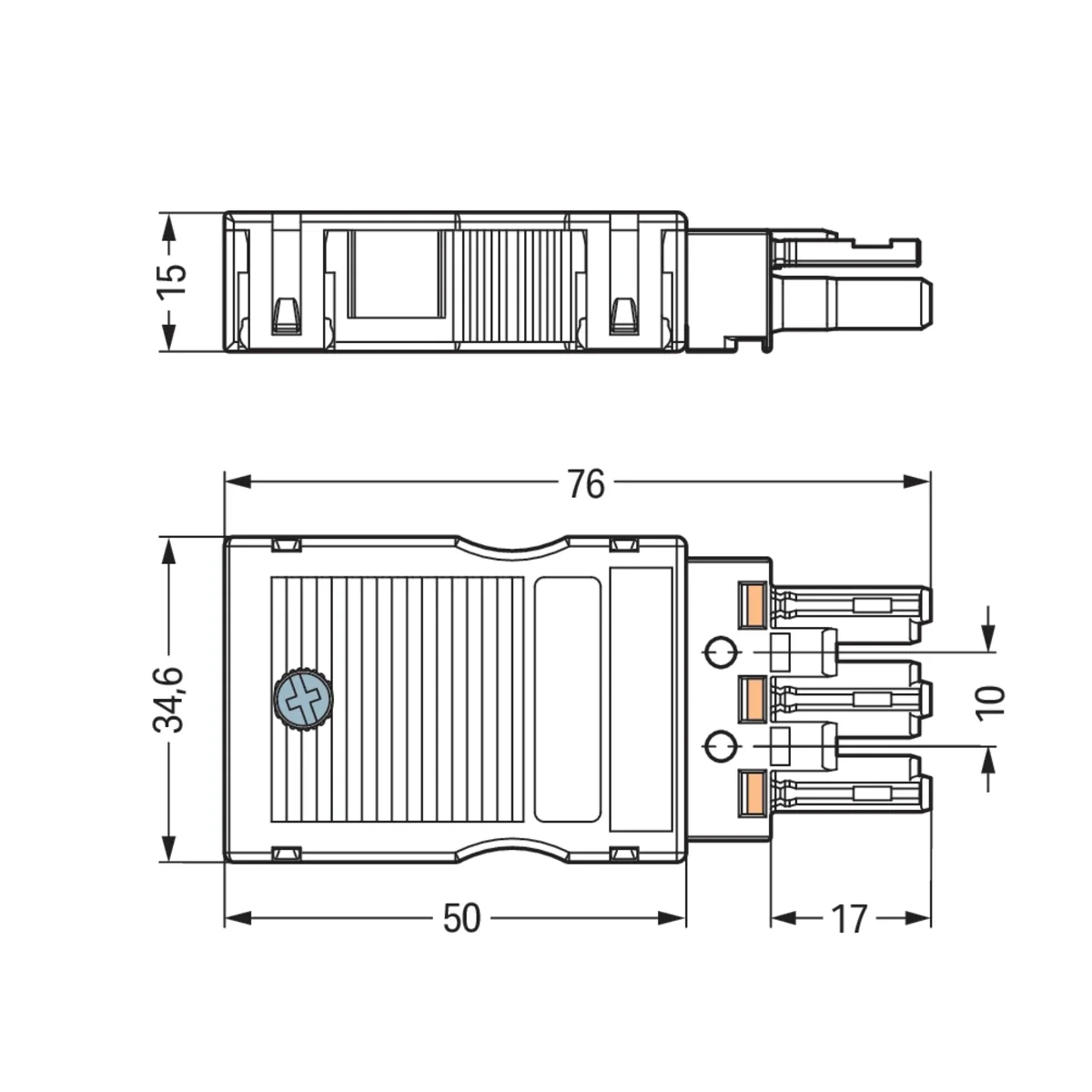

  • Length
    76 mm
  • Width
    34.6 mm
  • Rated current
    25 A
  • Degree of protection (IP)
    IP20
  • Model
    Bus
  • Connection cross section (fine-strand)
    0.5 ... 4 mm²
  • Number of connections per pole
    2
  • Mechanical coding
    Yes
  • Type of locking
    Separate
  • Max. continuous temperature resistance contact part
    85 °C
  • Housing material
    Polyamide (PA)
  • Contact material
    Other
  • Pollution degree
    3
  • Rated surge voltage
    4 kV
  • Height
    15 mm

Manufacturer details

  • Manufacturer
    WAGO ELWAG SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
  • Address
    50-506 UL. PIĘKNA 58A
  • E-mail
    wago.elwag@wago.com
  • Tax identification number
    8961025689

Bulk packaging

A kind of package Karton Karton
Quantity 25 pcs. 25 pcs.
Weight (kg) 0,545 0,545
Volume (m3) 0,002 0,002
Width (m) 0,191 0,191
Length (m) 0,202 0,202
Depth (m) 0,064 0,064
