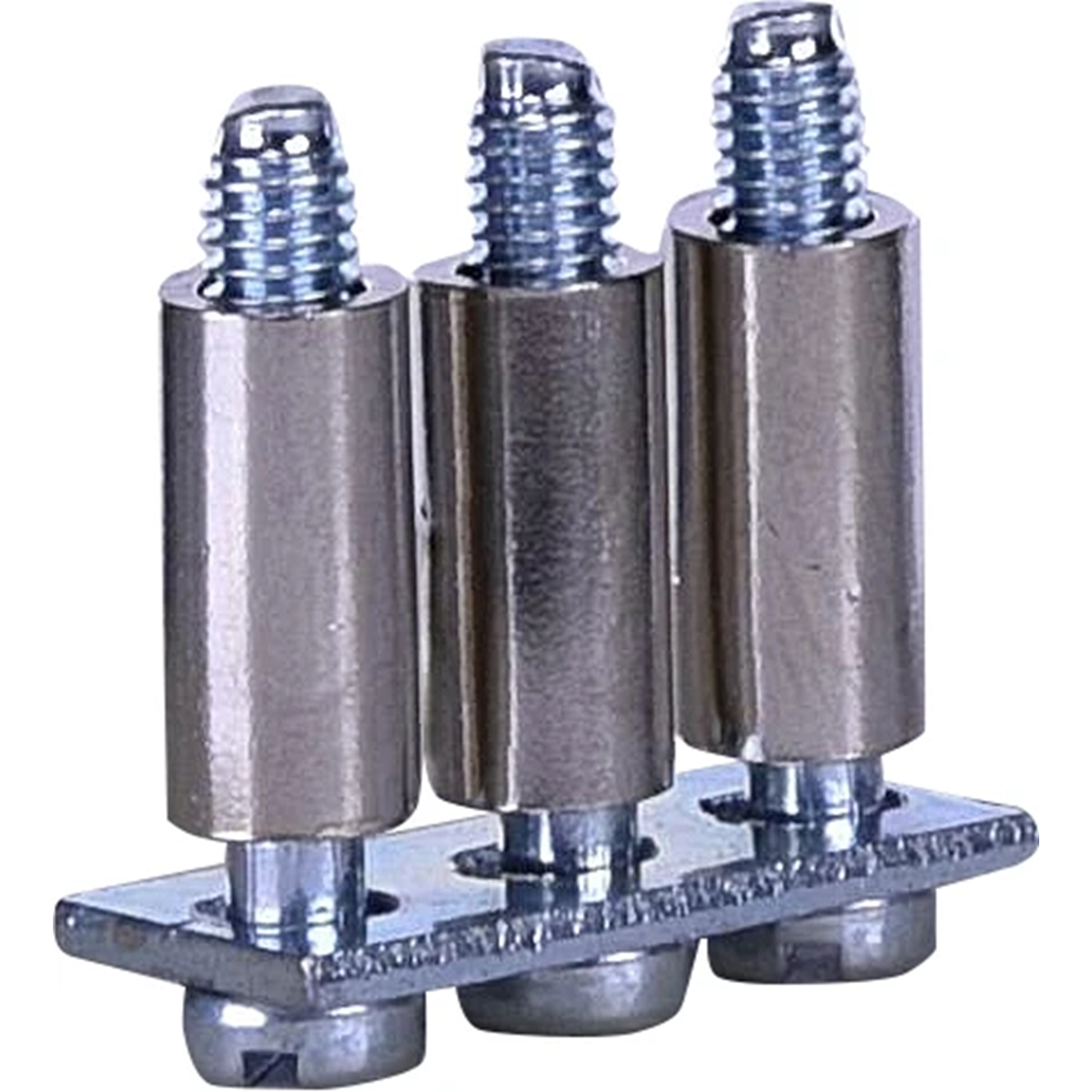

3-way short-circuiting device MP 3 2.5 003901020

local index:
TES006ETIP
Catalog No:
003901020
EAN code:
5904722916050
Manufacturer: ETI POLAM
Type: MP 3p 2.5
Price:
1,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

For use, among others in low-voltage panels and junction and control boxes, in order to obtain functional and safe connections of electrical wires between electrical devices. Basic parameters, the knowledge of which is necessary for the proper operation of this type of products (i.e. type of connector, rated voltage, permissible cable cross-section) are placed on each module.

Advantages:

  •  enclosures made of colored polyamide 66 (type VS) - non-flammable,
  •  rated current up to 415 A, →rated terminal cross-section from 2.5 up to 240 mm2;
  •  possibility of operation in temperatures from -40 to +100o C,
  •  possibility of bridging connectors,
  •  mounting on rail TH 15, TH 32, TH 35,
  •  the housing prevents the hand from touching live screws.

Technical data

  • Type
    MP 3p 2.5
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Wire commoning chain
  • Insulated
    No
  • Number of bridged clamps
    3
  • Mounting method
    Screwable

Bulk packaging

A kind of package Pudełko
Quantity 50 pcs.
Weight (kg) 0,176
Volume (m3) 0,000
Width (m) 0,130
Length (m) 0,105
Depth (m) 0,020
