3-way plug with strain relief housing WINSTA black 770-113

Name: 3-way plug with strain relief housing WINSTA black
Brand: WAGO ELWAG
SKU: ANL002WAGO
Price: 25.94 PLN
Availability: BackOrder

local index:

ANL002WAGO

Catalog number:

770-113

EAN code:

4044918254083

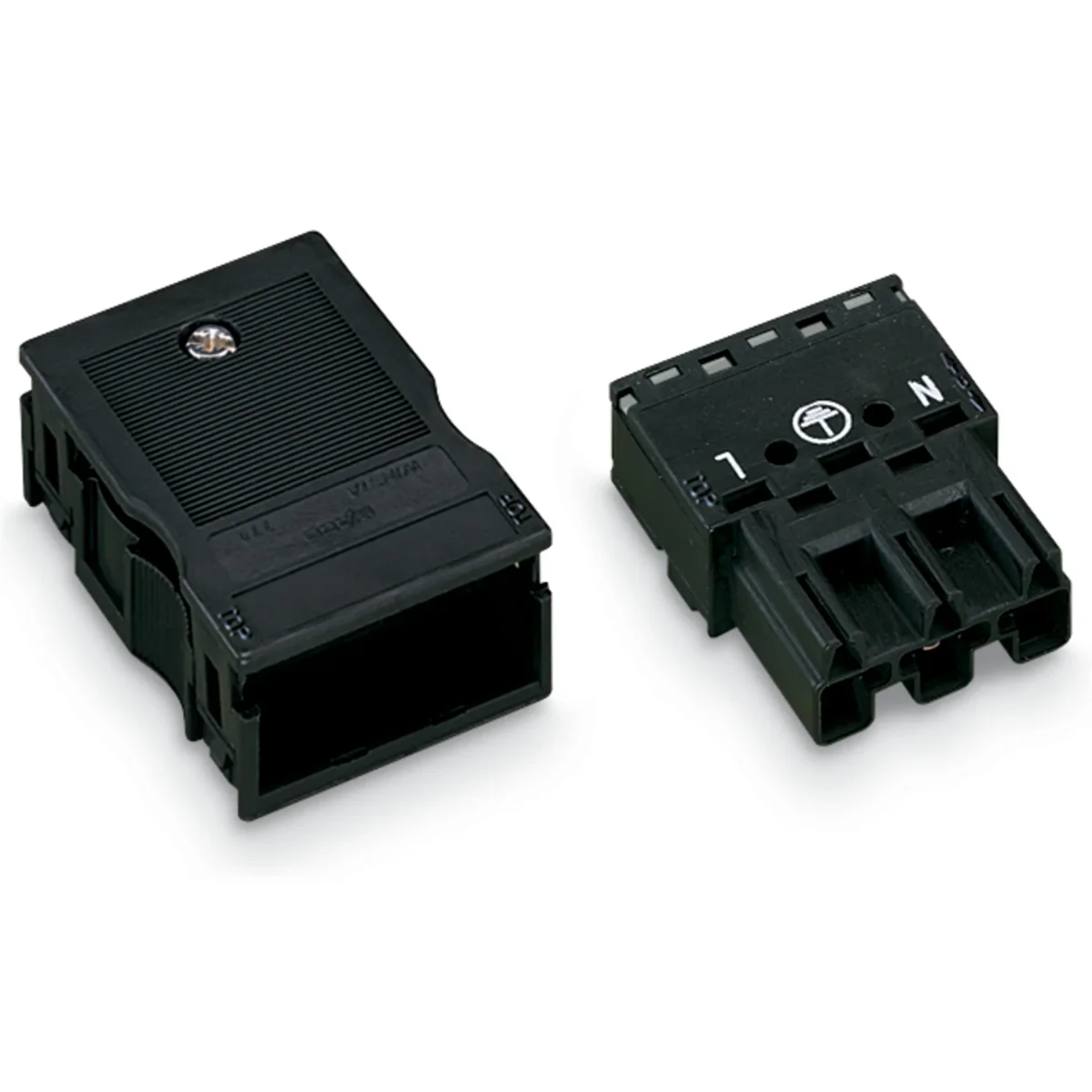

3-way plug with strain relief housing WINSTA black

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Number of sockets: 6

Number of tracks: 3

Color: Black

See full description

Price:

25,94 zł

gross / pcs.

(including VAT 23%)

up to 2 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Plug with strain relief housing 3-way 10 mm/0.394 in pitch full protection against mismating cable diameter 8-12 mm

Technical data

Number of sockets

6
Color

Black
Number of wires per terminal

2
Gauge [AWG]

2014-12-20 00:00:00
Series

770
Rated impulse voltage [kV]

4

Number of tracks

3
Number of potentials

3
Rated current [A]

25
Clamp type

CAGE CLAMP S clamp
Dirt zone

3
Accurate color

Black

Other technical data

Rated voltage

250 V
Number of poles

3
Connection type

Spring clamp connection
Cable diameter

8 ... 11.5 mm
Connection cross section (solid-core)

0.5 ... 4 mm²
Pole codification

L, N, PE
Colour coding/contact insert

Black
With strain relief

Yes
Max. continuous temperature resistance strain relief

105 °C
Halogen free

No
Surface treatment contacts

Other
Continuity resistance

3 mΩ

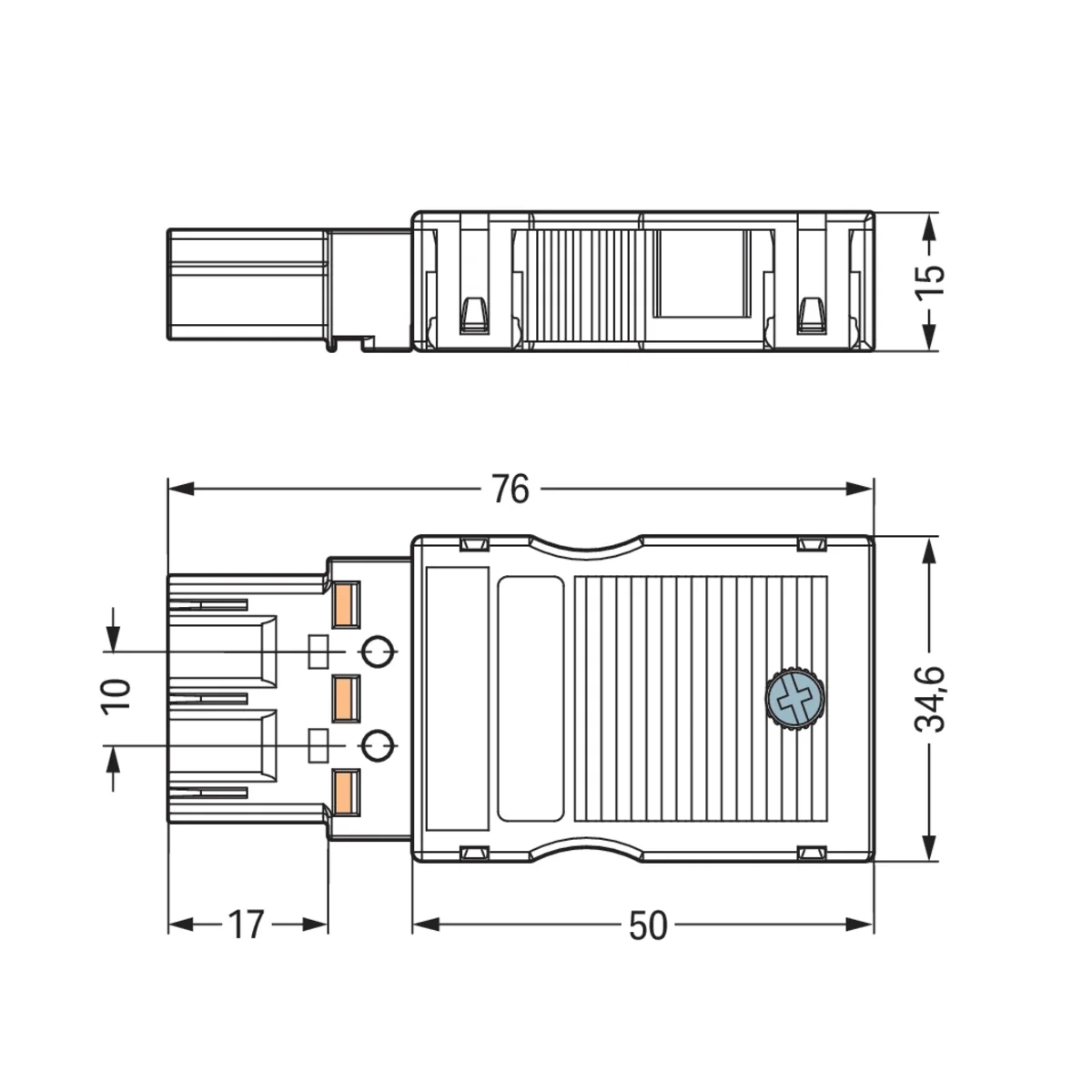

Length

76 mm
Width

34.6 mm

Rated current

25 A
Degree of protection (IP)

IP20
Model

Plug
Connection cross section (fine-strand)

0.5 ... 4 mm²
Number of connections per pole

2
Mechanical coding

Yes
Type of locking

Separate
Max. continuous temperature resistance contact part

85 °C
Housing material

Polyamide (PA)
Contact material

Other
Pollution degree

3
Rated surge voltage

4 kV
Height

15 mm

Manufacturer details

Manufacturer

WAGO GmbH & Co. KG
Address

32423 Minden Hansastraße 27 Niemcy
E-mail

wago.elwag@wago.com

Bulk packaging

A kind of package	Karton	Karton
Quantity	25 pcs.	25 pcs.
Weight (kg)	0,558	0,558
Volume (m3)	0,002	0,002
Width (m)	0,191	0,191
Length (m)	0,202	0,202
Depth (m)	0,064	0,064
