3-pole socket 1.5mm² 2xL, 1xPE orange 730-103

Name: 3-pole socket 1.5mm² 2xL, 1xPE orange
Brand: WAGO ELWAG
SKU: ANM001WAGO
Price: 4.83 PLN

local index:

ANM001WAGO

Catalog No:

730-103

EAN code:

4050821429715

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Number of tracks: 3

Color: Silver

Rated current [A]: 10

See full description

Price:

4,83 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

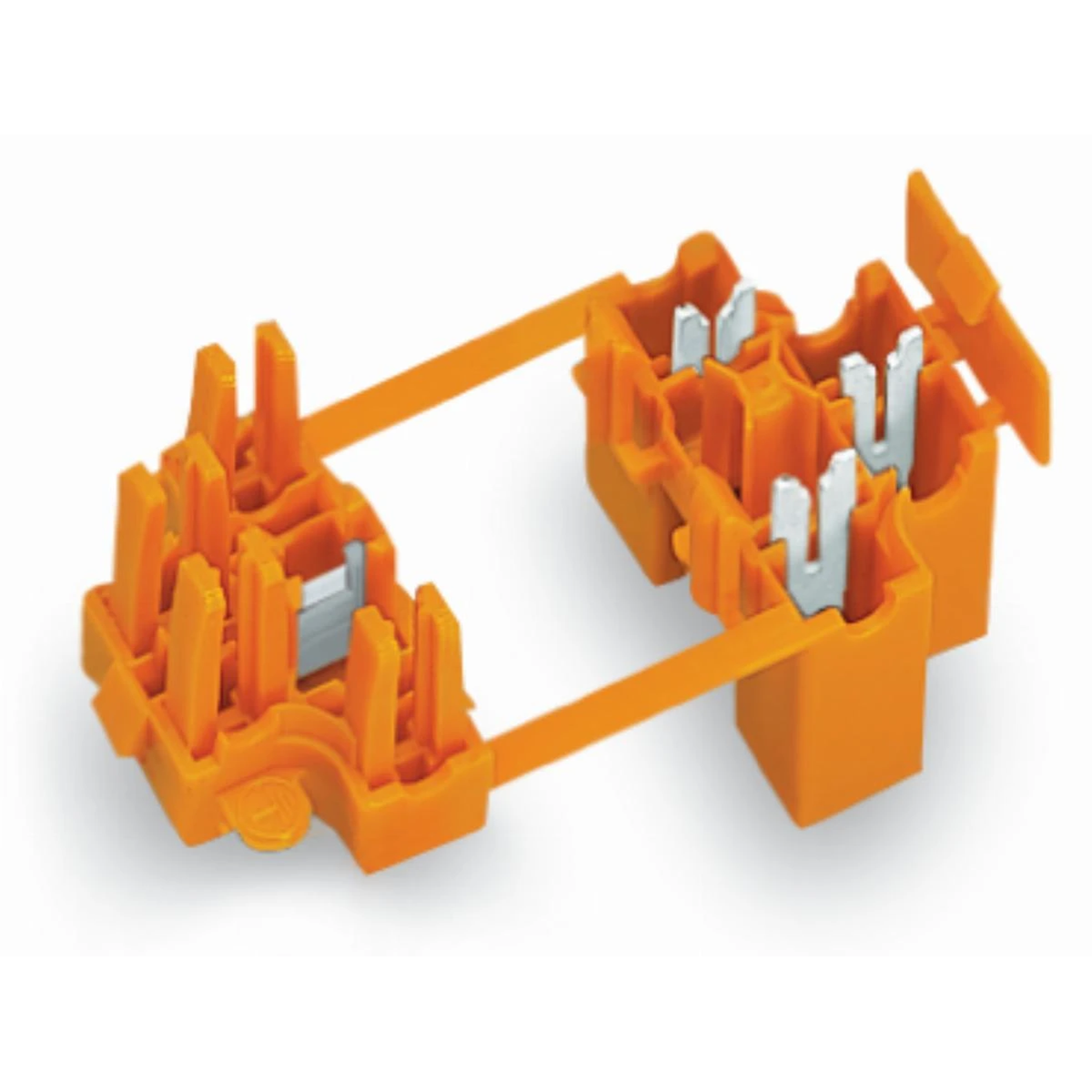

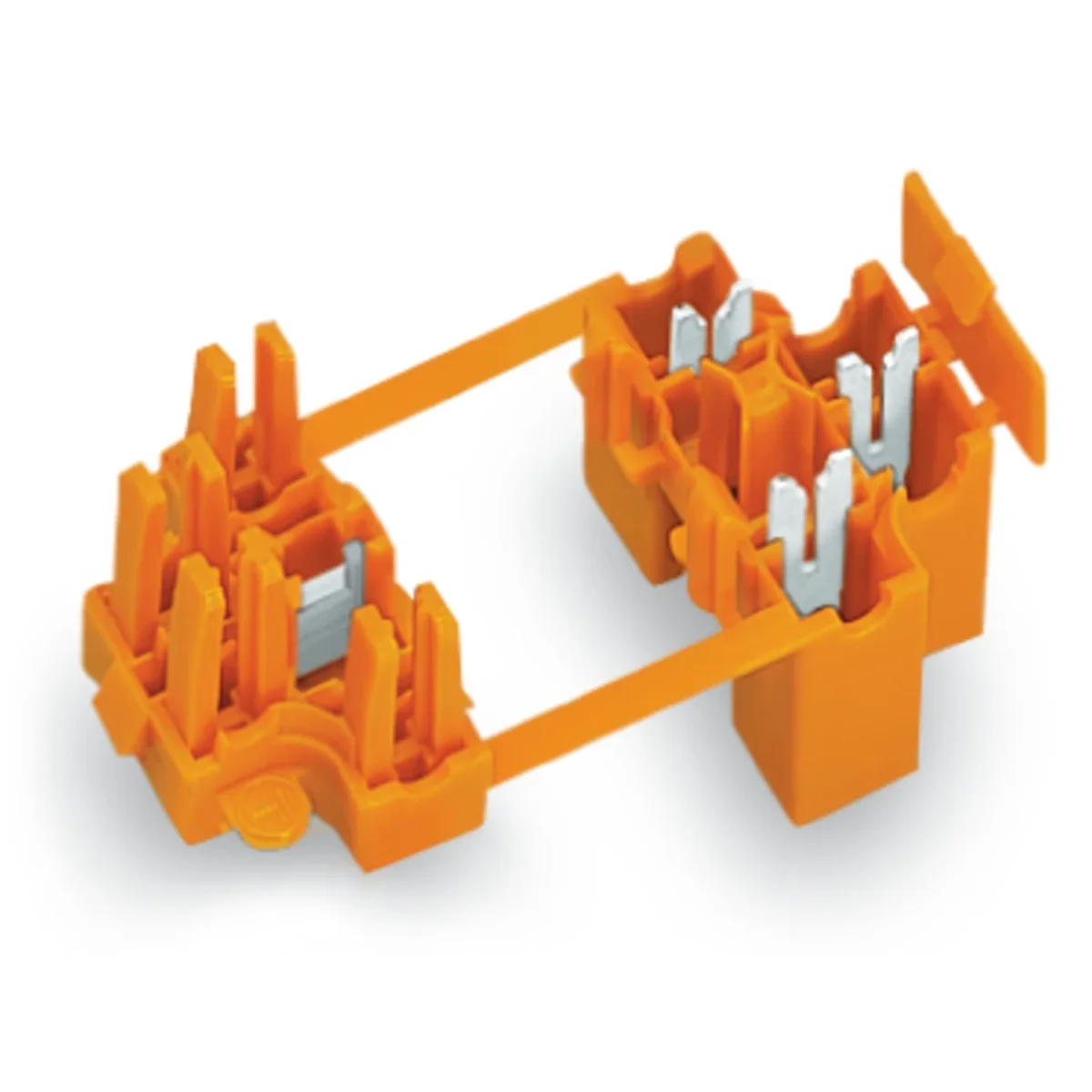

Socket with automatic cutting of the phase wire, 3-way

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

0.08 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.08 ... 2.5 mm²
Rated voltage

500 V
Type of electrical connection 2

Insulation displacement connection
Number of clamp positions per pole

1
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Wysokość przy najniższym sposobie montażu

27 mm
Closing plate required

No
Transparent

No

Connectable conductor cross section fine-strand without cable end sleeve

0.08 ... 2.5 mm²
Connectable conductor cross section solid-core

0.25 ... 1.5 mm²
Rated current In

10 A
Type of electrical connection 1

Insulation displacement connection
Number of poles

3
Mounting method

Other
Operating temperature

105 ... 105 °C

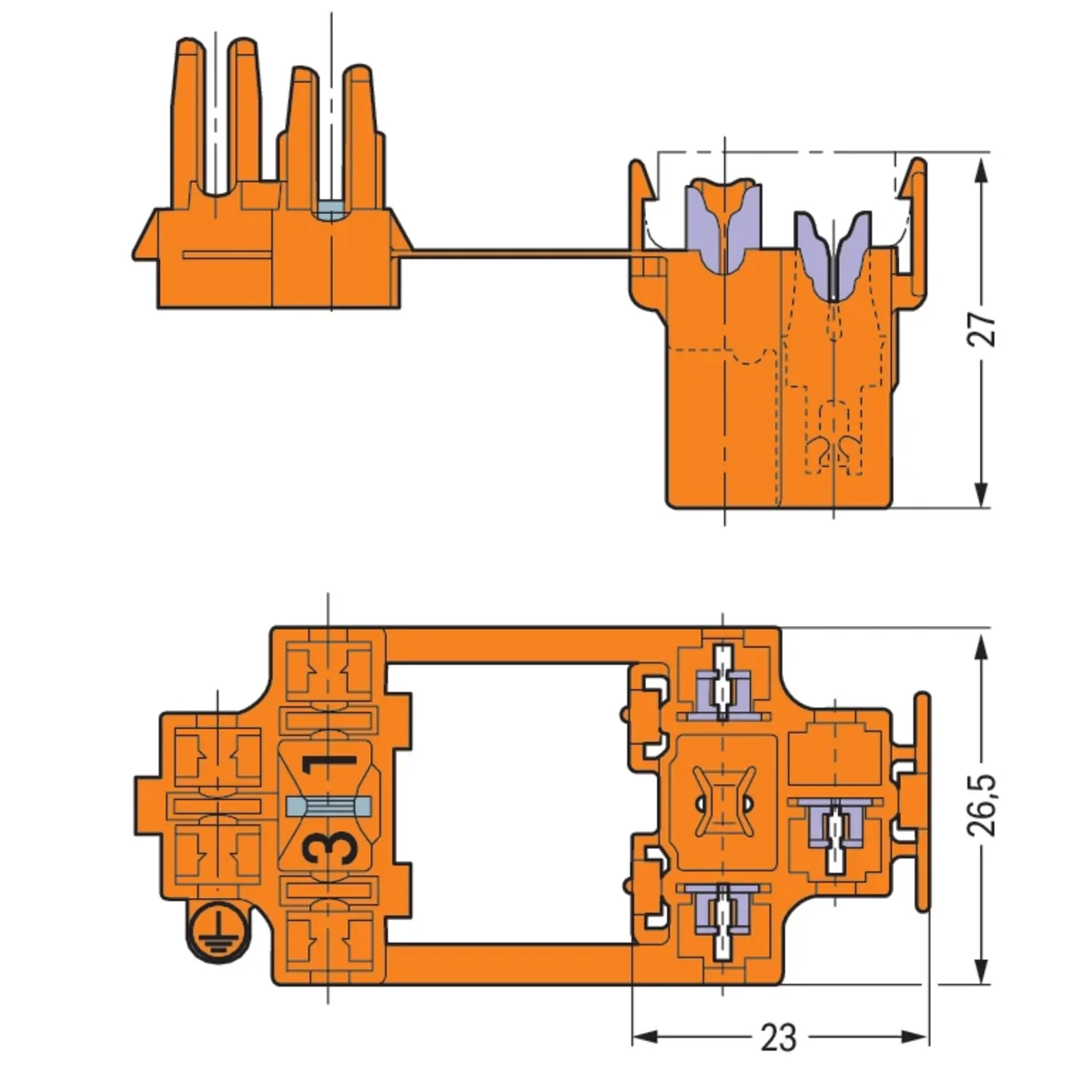

Width/grid dimension

26.1 mm
Length

23 mm
Colour

Orange
