Connecting cables and wires
Connectors
Screwless connectors

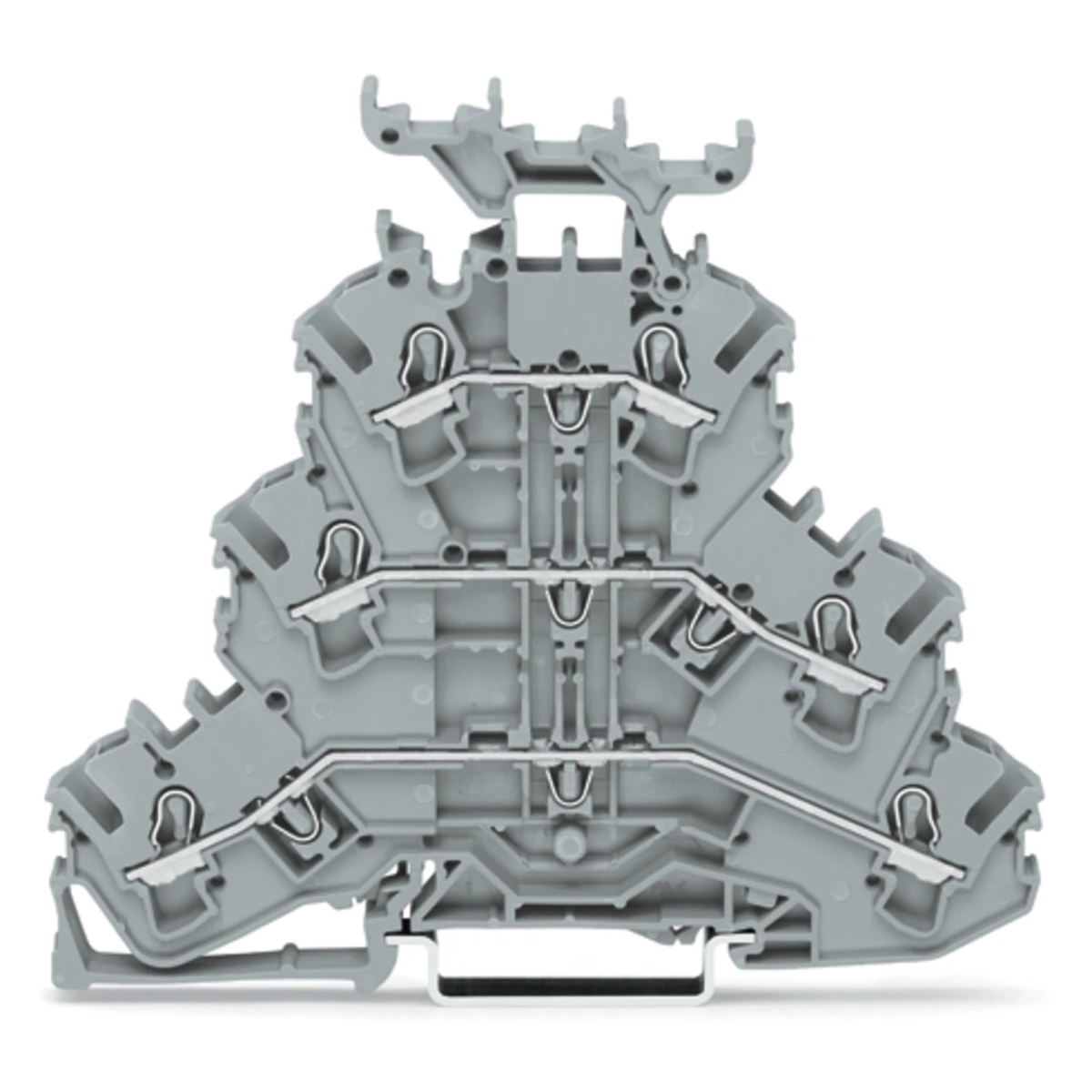

3-deck terminal block 2.5mm² TOPJOBS L/L/L gray 50pcs 2002-3231
local index:
TEB163WAGO
Catalog No:
2002-3231
EAN code:
4044918989756
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
number of phases:
3
Number of terminals:
6
Number of potentials:
3
See full description
Price:
152,35 €
gross / pkg.
(including VAT 23%)
3,05 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
3-deck 2.5mm2 TOPJOBS L/L/L Gray
Technical data
number of phases
3
Number of potentials
3
Maximum voltage [V]
500
Surge voltage [kV]
6
Rated current [A]
28
Cable type
One-wire + stranded
Degree of contamination
3
Pieces in the package
50
Number of connectors
6
Number of terminals
6
Number of levels
3
Installation
On the TH-35 rail
Rated voltage EN (Ex e II) [V]
440
Gauge [AWG]
22
Series
2002
Width [mm]
5.2
Height [mm]
81.5
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.25 ... 4 mm²
Connectable conductor cross section solid-core
0.75 ... 4 mm²
Rated current In
24 A
Type of electrical connection 1
Spring clamp connection
Connection position
Atop
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
81.5 mm
Explosion-tested version 'Ex e'
No
Colour
Grey
Connectable conductor cross section fine-strand with cable end sleeve
0.75 ... 2.5 mm²
Connectable conductor cross section multi-wired
0.25 ... 2.5 mm²
Rated voltage
500 V
Type of electrical connection 2
Spring clamp connection
Number of levels
3
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
5.2 mm
Length
93.5 mm
Closing plate required
Yes
Internally connected stages
No
Bulk packaging
A kind of package
Karton
Quantity
1 pkg.
Weight (kg)
0,955
Volume (m3)
0,002
Width (m)
0,105
Length (m)
0,285
Depth (m)
0,094
