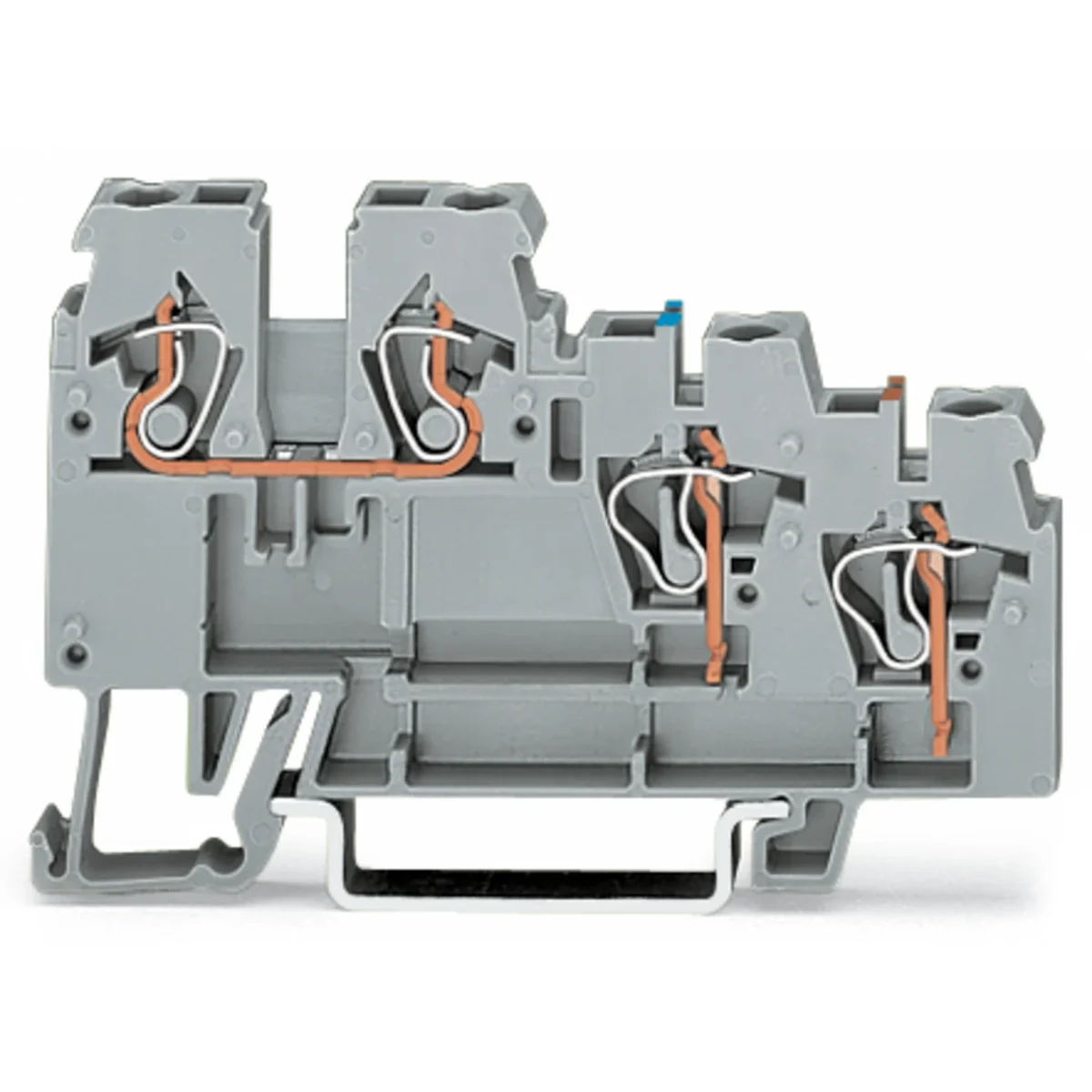

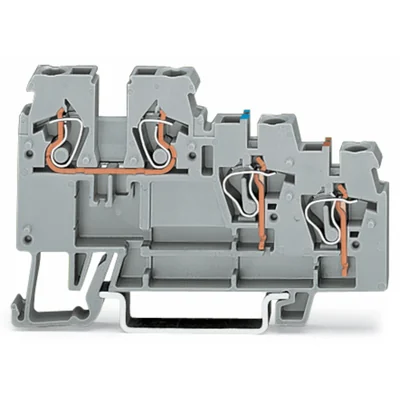

3-deck CAGE CLAMP signal terminal block 2.5mm2 grey 270-560
local index:
TES129WAGO
Catalog No:
270-560
EAN code:
4050821035251
Price:
1,77 €
gross / pcs.
(including VAT 23%)
Last lowest price:
1,77 € gross
Price history for this product
1. 1,77 € gross / pcs.
2. Last lowest price:
1,77 €
3. Base price:
4,62 €
-62%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
4,62 € gross
-62%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description
Connector with holes for wires with color printing.
Technical data
-
Depth [mm]39
-
ColorGray
-
InstallationOn the TH35 rail
-
The plane of descriptionDescription on the side
-
Nominal cross-section [mm²]2.5
-
Wire connection techniqueCAGE CLAMP
-
Rated impulse voltage [kV]4
-
Number of terminals4
-
Number of potentials3
-
Rated voltage [V]250
-
Rated current [A]18
-
Width [mm]5
-
Height [mm]68
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 2.5 mm²
-
Connectable conductor cross section solid-core0.08 ... 2.5 mm²
-
Rated current In18 A
-
Number of levels3
-
Internally connected stagesNo
-
Type of electrical connection 2Spring clamp connection
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu39 mm
-
Explosion-tested version 'Ex e'No
-
ColourGrey
-
LED switching forNo
-
With shield connectionNo
-
Disconnect functionNo
-
Connectable conductor cross section fine-strand with cable end sleeve0.25 ... 1.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 2.5 mm²
-
Rated voltage250 V
-
Number of clamp positions per level4
-
Type of electrical connection 1Spring clamp connection
-
Connection positionAtop
-
Cross connectableNo
-
Operating temperature105 ... 105 °C
-
Width/grid dimension5 mm
-
Length68 mm
-
Closing plate requiredYes
-
Colour light sourceNone
-
With PE connectionNo
-
With power supply functionNo
Manufacturer details
-
ManufacturerWAGO ELWAG Sp. z o.o.
-
Address50-506 Wrocław Piękna 58A
-
E-mail
-
Tax identification number8961025689
-
GLN4017332000000
Bulk packaging
| A kind of package | Karton |
| Quantity | 50 pcs. |
| Weight (kg) | 0,495 |
| Volume (m3) | 0,001 |
| Width (m) | 0,080 |
| Length (m) | 0,278 |
| Depth (m) | 0,058 |
