2-wire terminal block 7-pole, grey 264-107
local index:
TEG087WAGO
Catalog No:
264-107
EAN code:
4044918425865
Manufacturer:
WAGO ELWAG
Color: Gray
Price:
3,62 €
gross / pcs.
(including VAT 23%)
Last lowest price:
8,79 € gross
Price history for this product
1. 3,62 € gross / pcs.
2. Last lowest price:
8,79 €
3. Base price:
9,14 €
-60%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
9,14 € gross
-60%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description

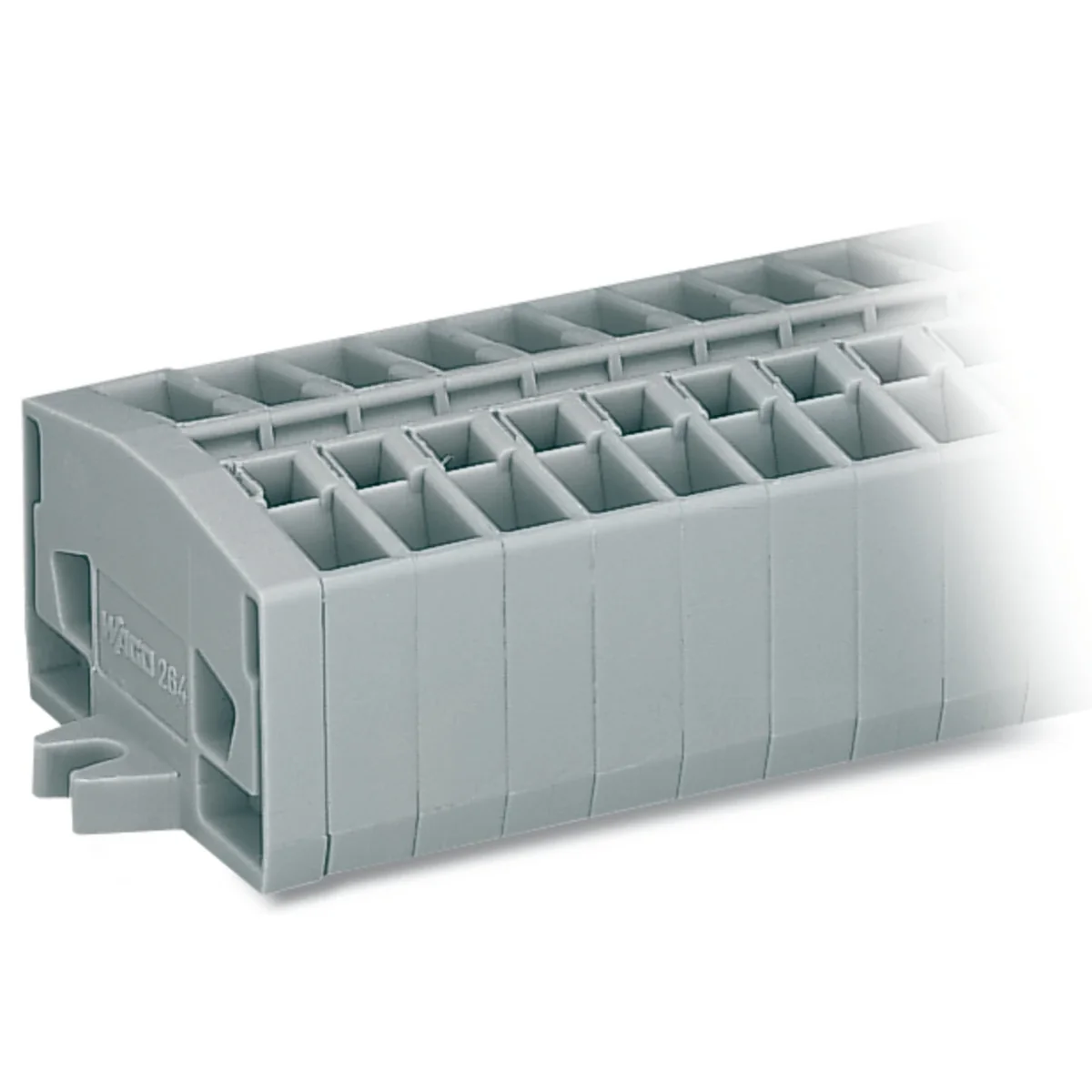

2-wire terminal block 7-pole, grey
Technical data
-
ColorGray
Other technical data
-
Drill hole distance centrically51.6 mm
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 2.5 mm²
-
Connectable conductor cross section solid-core0.08 ... 2.5 mm²
-
Rated current In24 A
-
Type of electrical connection 1Spring clamp connection
-
Connection positionAtop
-
Number of clamp positions per pole2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu22 mm
-
Closing plate requiredNo
-
TransparentNo
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve0.25 ... 1.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 2.5 mm²
-
Rated voltage800 V
-
Type of electrical connection 2Spring clamp connection
-
Number of poles7
-
Mounting methodOther
-
Operating temperature105 ... 105 °C
-
Width/grid dimension58 mm
-
Length32 mm
-
ColourGrey
Bulk packaging
| A kind of package | Karton |
| Quantity | 100 pcs. |
| Weight (kg) | 2,950 |
| Volume (m3) | 0,005 |
| Width (m) | 0,140 |
| Length (m) | 0,228 |
| Depth (m) | 0,180 |
