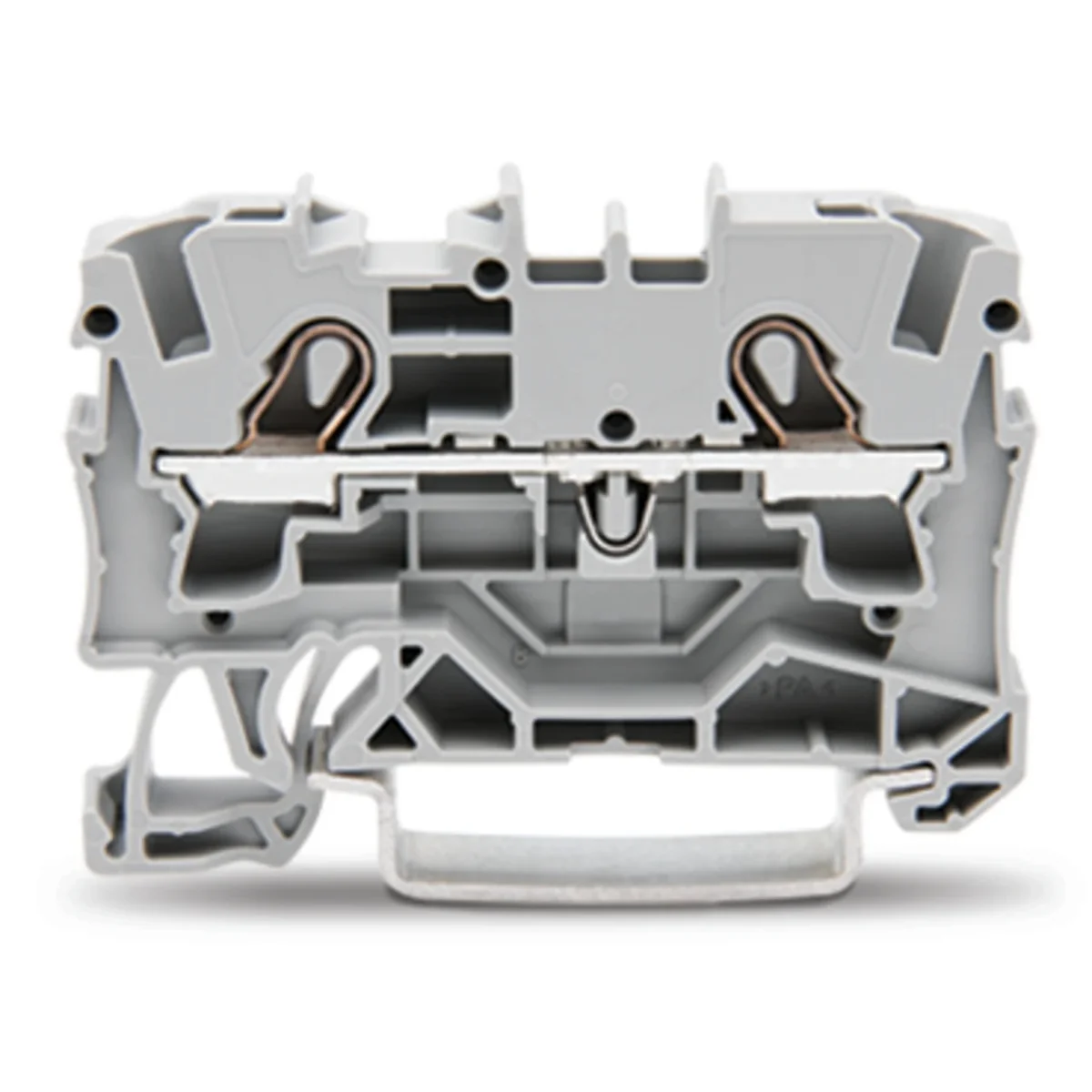

2-wire terminal block 4mm² TOPJOBS gray 50pcs 2004-1201

local index:
TEG200WAGO
Catalog No:
2004-1201
EAN code:
4017332071055
Manufacturer: WAGO ELWAG
Color: Gray
Number of potentials: 2
Rated current [A]: thirty
Price:
45,17 €
gross / pkg.
(including VAT 23%)
0,90 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Ex e II 2-conductor feed-through terminal block

Technical data

  • Color
    Gray
  • Rated current [A]
    thirty
  • Series
    2004
  • Pieces in the package
    50
  • Accurate color
    Gray
  • Number of potentials
    2
  • Clamp type
    CAGE CLAMP S clamp
  • Dirt zone
    3
  • Rated impulse voltage [kV]
    8
  • Number of connectors
    2

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.5 ... 6 mm²
  • Connectable conductor cross section solid-core
    1 ... 6 mm²
  • Rated current In
    32 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    33 mm
  • Explosion-tested version 'Ex e'
    Yes
  • Colour
    Grey
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.75 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.5 ... 4 mm²
  • Rated voltage
    800 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    6.2 mm
  • Length
    52.5 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,394
Volume (m3) 0,002
Width (m) 0,098
Length (m) 0,330
Depth (m) 0,048
