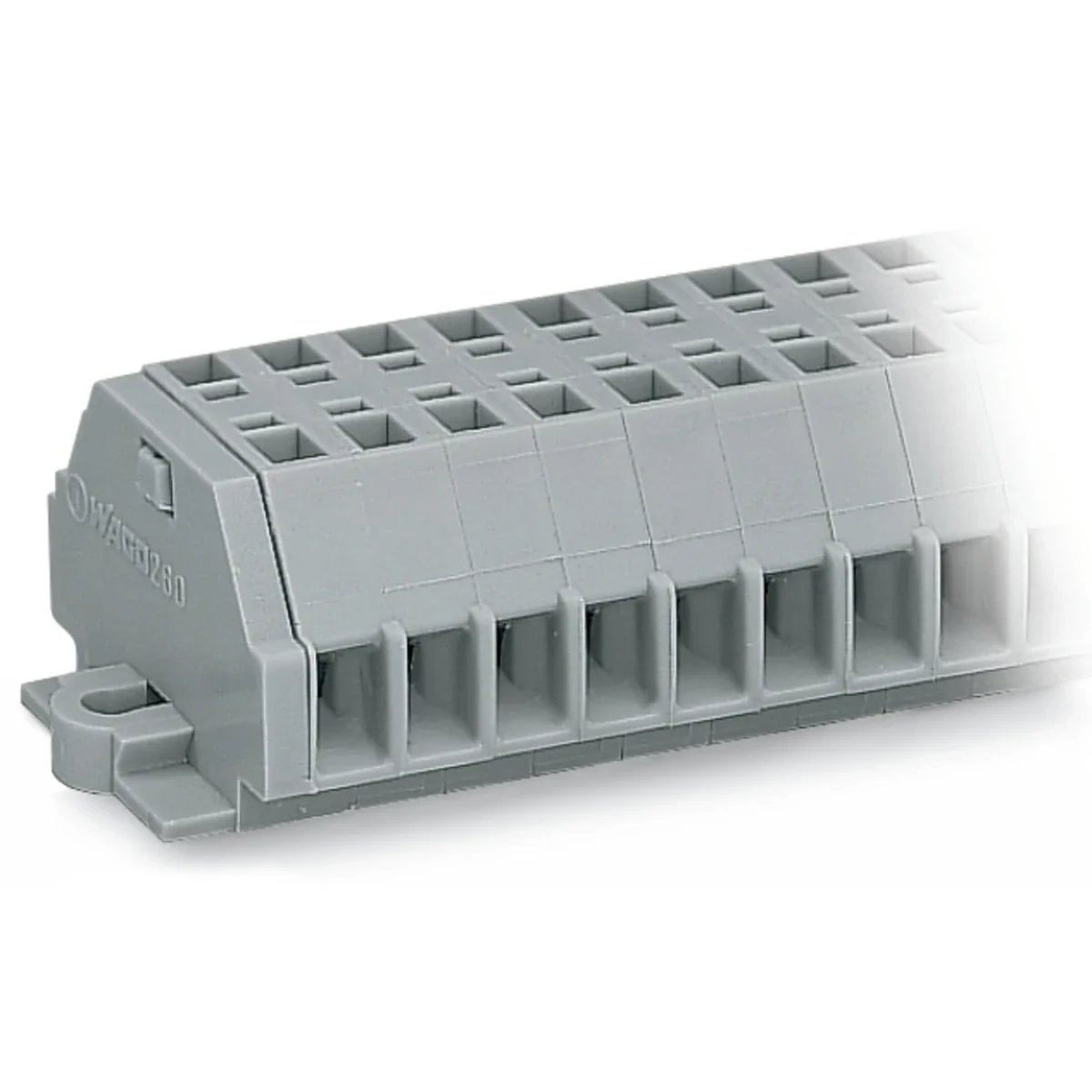

2-wire terminal block 12-pole, gray 260-112 260-112
local index:
TEB610WAGO
Catalog number:
260-112
EAN code:
4044918598910
Manufacturer:
WAGO ELWAG
Price:
21,24 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-

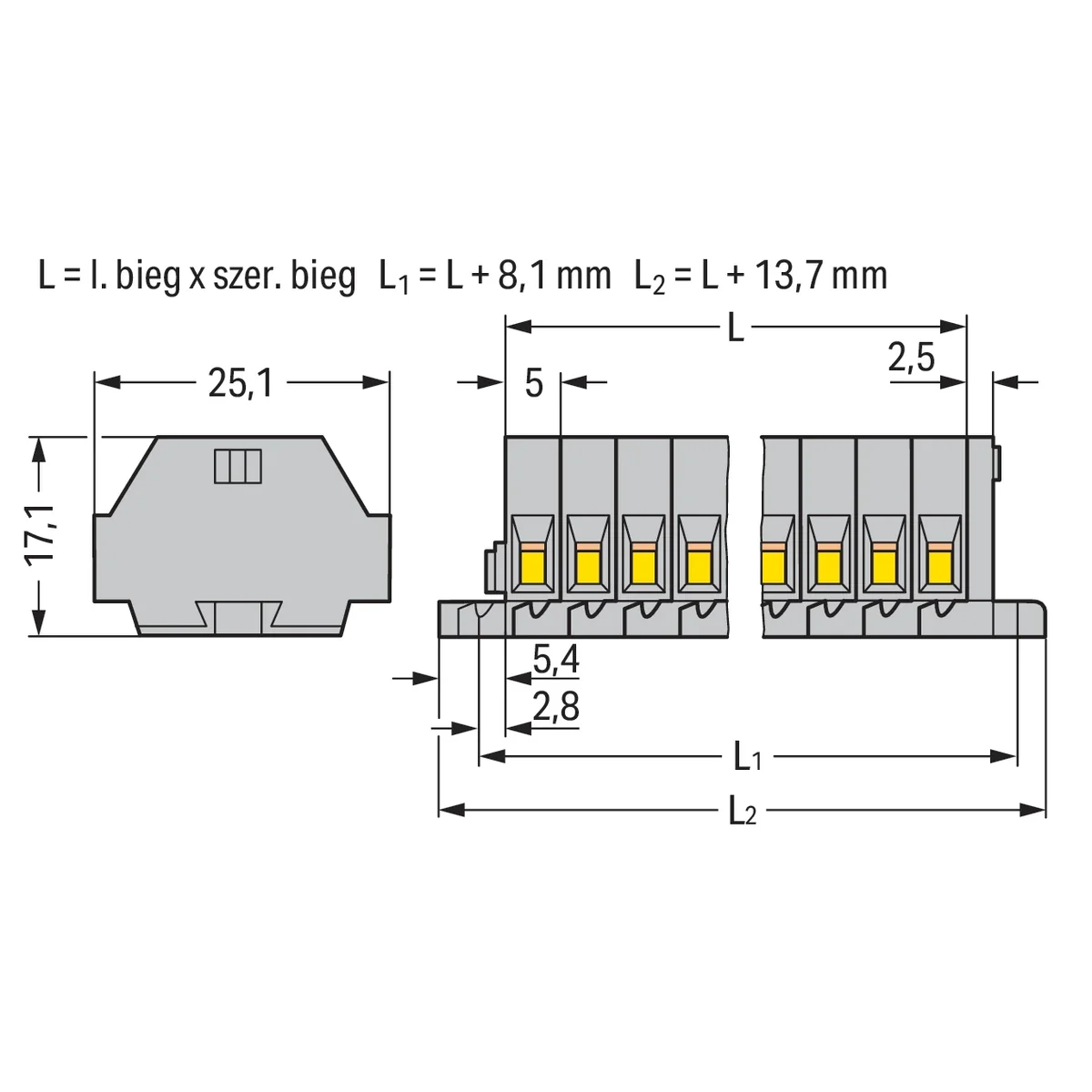

Drill hole distance centrically69.1 mm
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 1.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 1.5 mm²
-
Rated voltage400 V
-
Type of electrical connection 2Spring clamp connection
-
Number of clamp positions per pole2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Width73.7 mm
-
Depth17.1 mm
-
ColourGrey
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section solid-core0.08 ... 1.5 mm²
-
Rated current In18 A
-
Type of electrical connection 1Spring clamp connection
-
Number of poles12
-
Mounting methodOther
-
Operating temperature-30 ... 85 °C
-
Halogen freeYes
-
Height25.1 mm
-
Closing plate requiredNo
-
TransparentNo
Manufacturer details
-
ManufacturerWAGO GmbH & Co. KG
-
Address32423 Minden Hansastraße 27 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Karton |
| Quantity | 25 pcs. | 25 pcs. |
| Weight (kg) | 0,560 | 0,560 |
| Volume (m3) | 0,002 | 0,002 |
| Width (m) | 0,130 | 0,130 |
| Length (m) | 0,191 | 0,191 |
| Depth (m) | 0,096 | 0,096 |
