2-wire push-button terminal block 2.5 mm², red 2202-1203

Name: 2-wire push-button terminal block 2.5 mm², red
Brand: WAGO ELWAG
SKU: TEB628WAGO
Price: 4.35 PLN
Availability: BackOrder

local index:

TEB628WAGO

Catalog number:

2202-1203

EAN code:

4055143848657

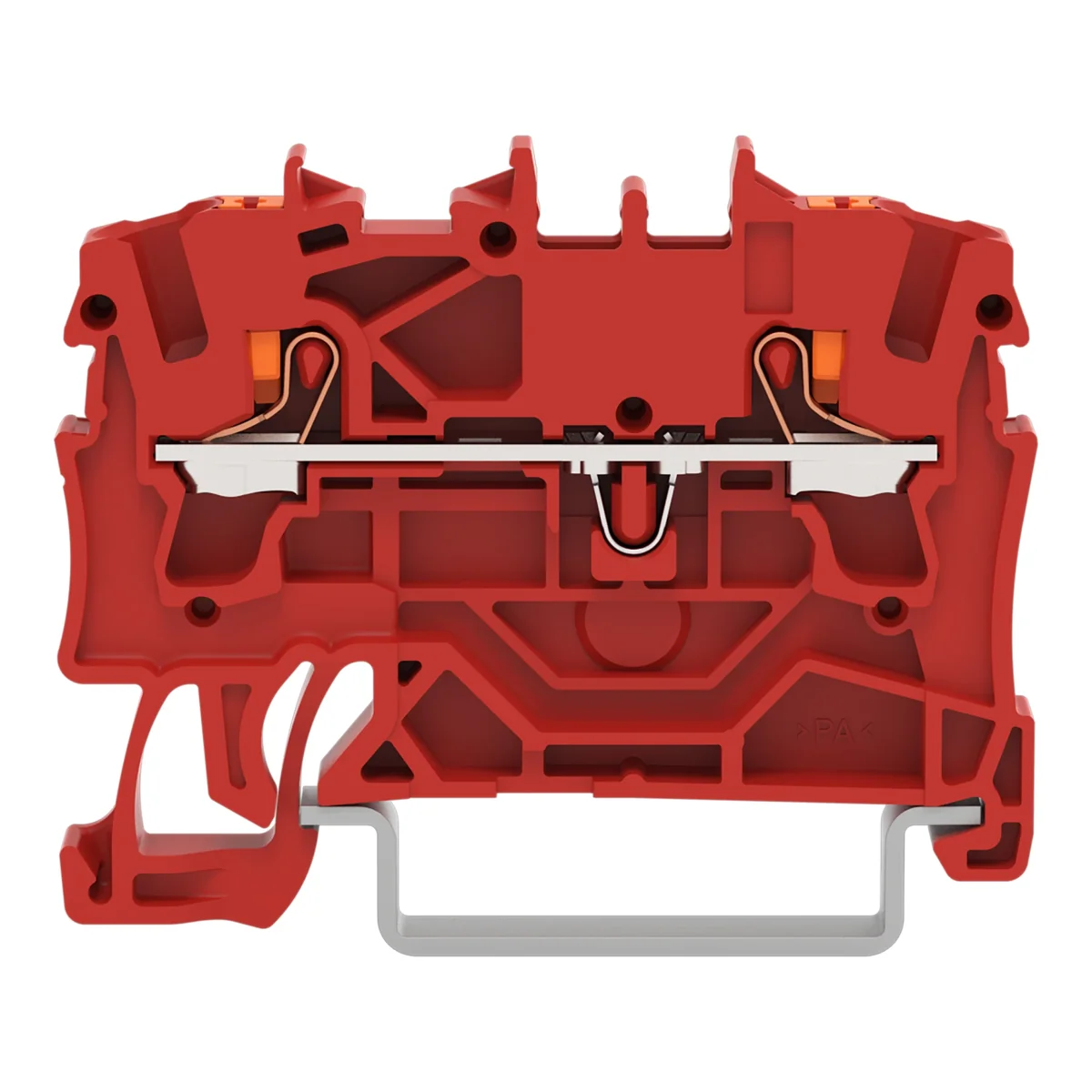

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Price:

4,35 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Connectable conductor cross section fine-strand without cable end sleeve

0.25 ... 4 mm²
Connectable conductor cross section solid-core

0.25 ... 4 mm²
Rated current In

24 A
Type of electrical connection 1

Spring clamp connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Height

48.5 mm
Explosion-tested version 'Ex e'

Yes
Colour

Red

Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.25 ... 2.5 mm²
Rated voltage

800 V
Type of electrical connection 2

Spring clamp connection
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Width

5.2 mm
Depth

32.9 mm
Closing plate required

Yes
Internally connected stages

No
