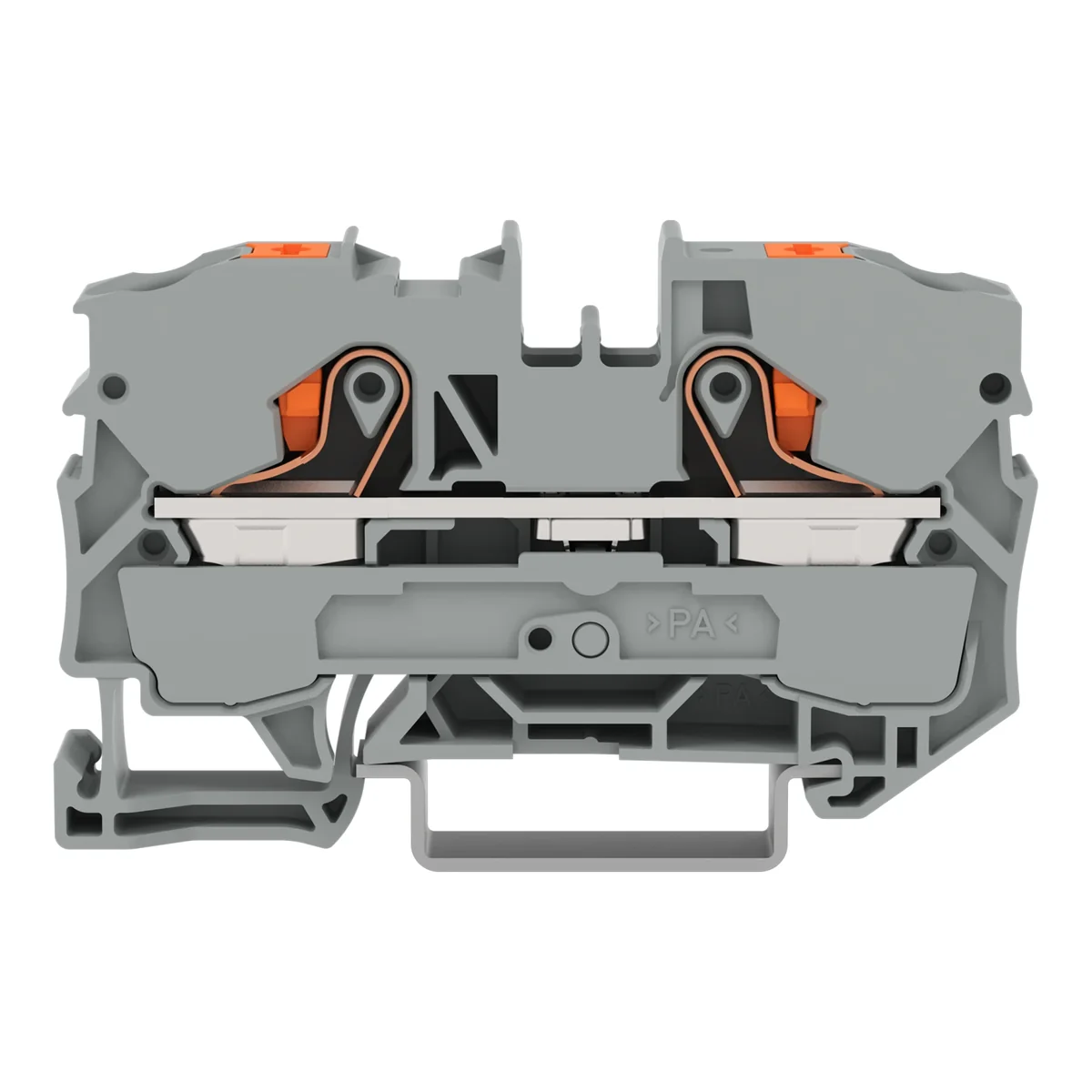

2-wire push-button terminal block 10 mm², gray 2210-1201

Name: 2-wire push-button terminal block 10 mm², gray
Brand: WAGO ELWAG
SKU: TEB597WAGO
Price: 10.34 PLN
Availability: BackOrder

Índice local:

TEB597WAGO

Número de catálogo:

2210-1201

Código EAN:

4055143735698

Haga clic en la foto para ampliar

Fabricante: WAGO ELWAG

Precio:

10,34 zł

gross / uds.

(IVA incluido 23%)

2 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Empaquetado a granel

Datos técnicos

Connectable conductor cross section fine-strand without cable end sleeve

0.5 ... 16 mm²
Connectable conductor cross section solid-core

2.5 ... 16 mm²
Rated current In

57 A
Type of electrical connection 1

Spring clamp connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Height

67.6 mm
Explosion-tested version 'Ex e'

Yes
Colour

Grey

Connectable conductor cross section fine-strand with cable end sleeve

2.5 ... 10 mm²
Connectable conductor cross section multi-wired

0.5 ... 10 mm²
Rated voltage

800 V
Type of electrical connection 2

Spring clamp connection
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Width

10 mm
Depth

36.9 mm
Closing plate required

Yes
Internally connected stages

No
