2-wire power connector 16 mm², gray 2016-7601

Name: 2-wire power connector 16 mm², gray
Brand: WAGO ELWAG
SKU: TES192WAGO
Price: 11.66 PLN
Availability: BackOrder

Index local:

TES192WAGO

Numéro de catalogue:

2016-7601

Code EAN:

4045454725082

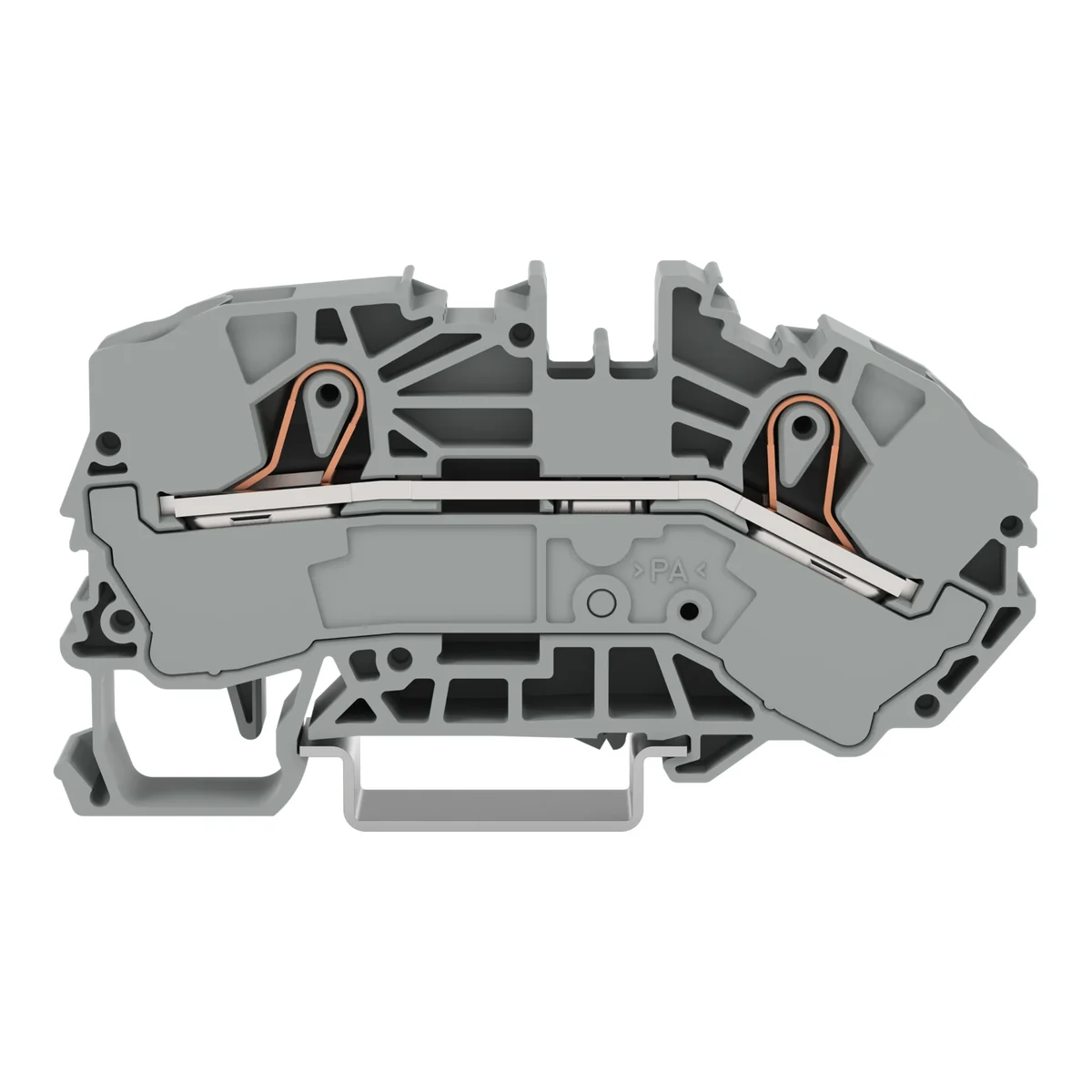

Cliquer sur la photo pour l'agrandir

Producteur: WAGO ELWAG

Prix:

11,66 zł

gross / pcs.

(y compris la TVA 23%)

2 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Données techniques Détails du fabricant Emballage en vrac

Données techniques

Connectable conductor cross section fine-strand without cable end sleeve

0.5 ... 25 mm²
Connectable conductor cross section solid-core

0.25 ... 16 mm²
Rated current In

76 A
Type of electrical connection 1

Spring clamp connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Height

85.7 mm
Explosion-tested version 'Ex e'

No
Colour

Grey

Connectable conductor cross section fine-strand with cable end sleeve

0.5 ... 16 mm²
Connectable conductor cross section multi-wired

0.5 ... 16 mm²
Rated voltage

800 V
Type of electrical connection 2

Spring clamp connection
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Width

12 mm
Depth

40.8 mm
Closing plate required

Yes
Internally connected stages

No
