2-wire installation connectors for all types of wires 221-412/995-016

Name: 2-wire installation connectors for all types of wires
Brand: WAGO ELWAG
SKU: TEB389WAGO
Price: 31.12 PLN
Availability: InStock

Index local:

TEB389WAGO

Numéro de catalogue:

221-412/995-016

Code EAN:

4066966001761

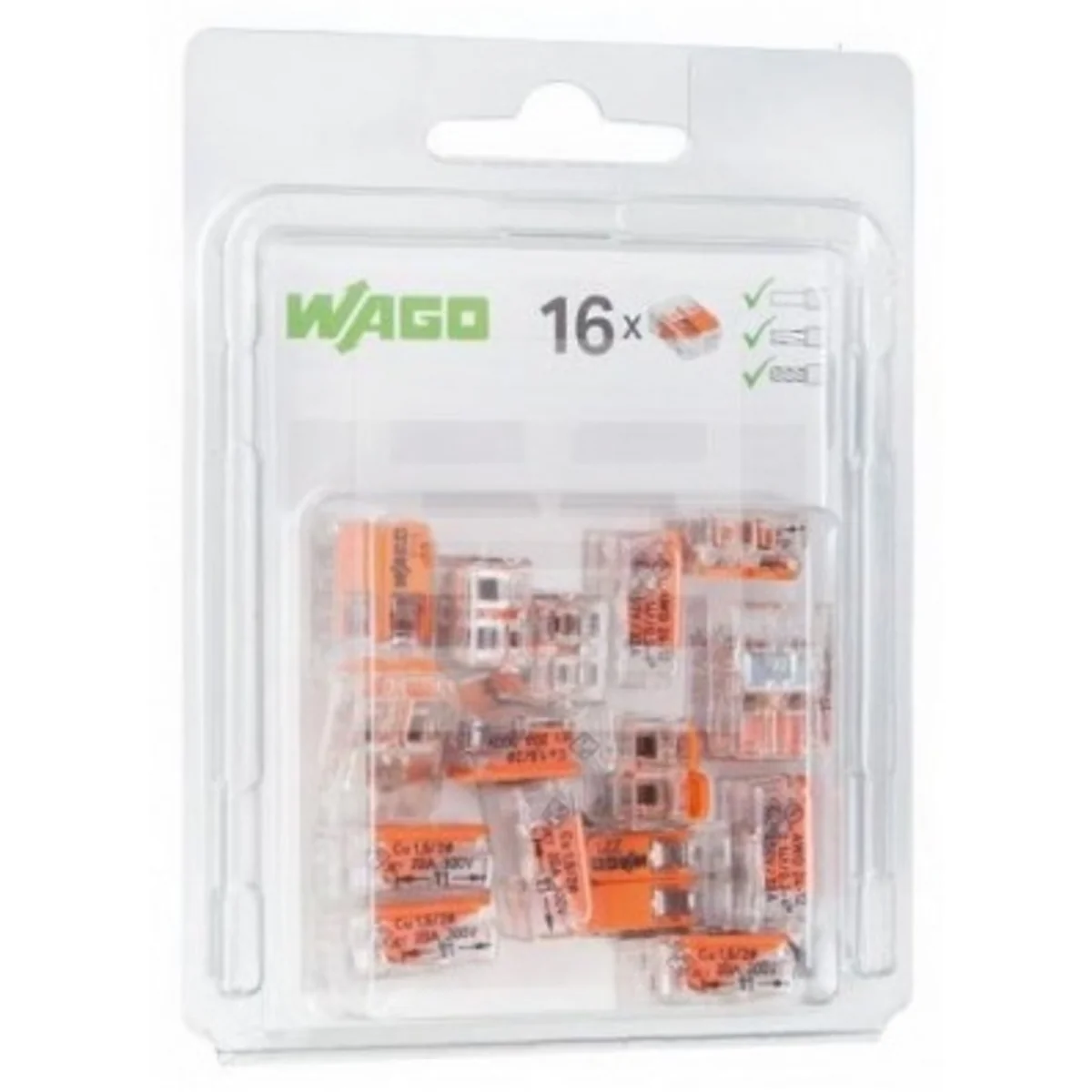

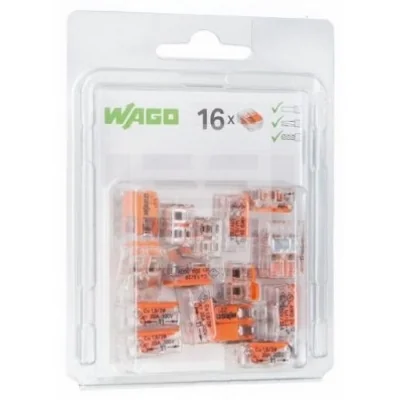

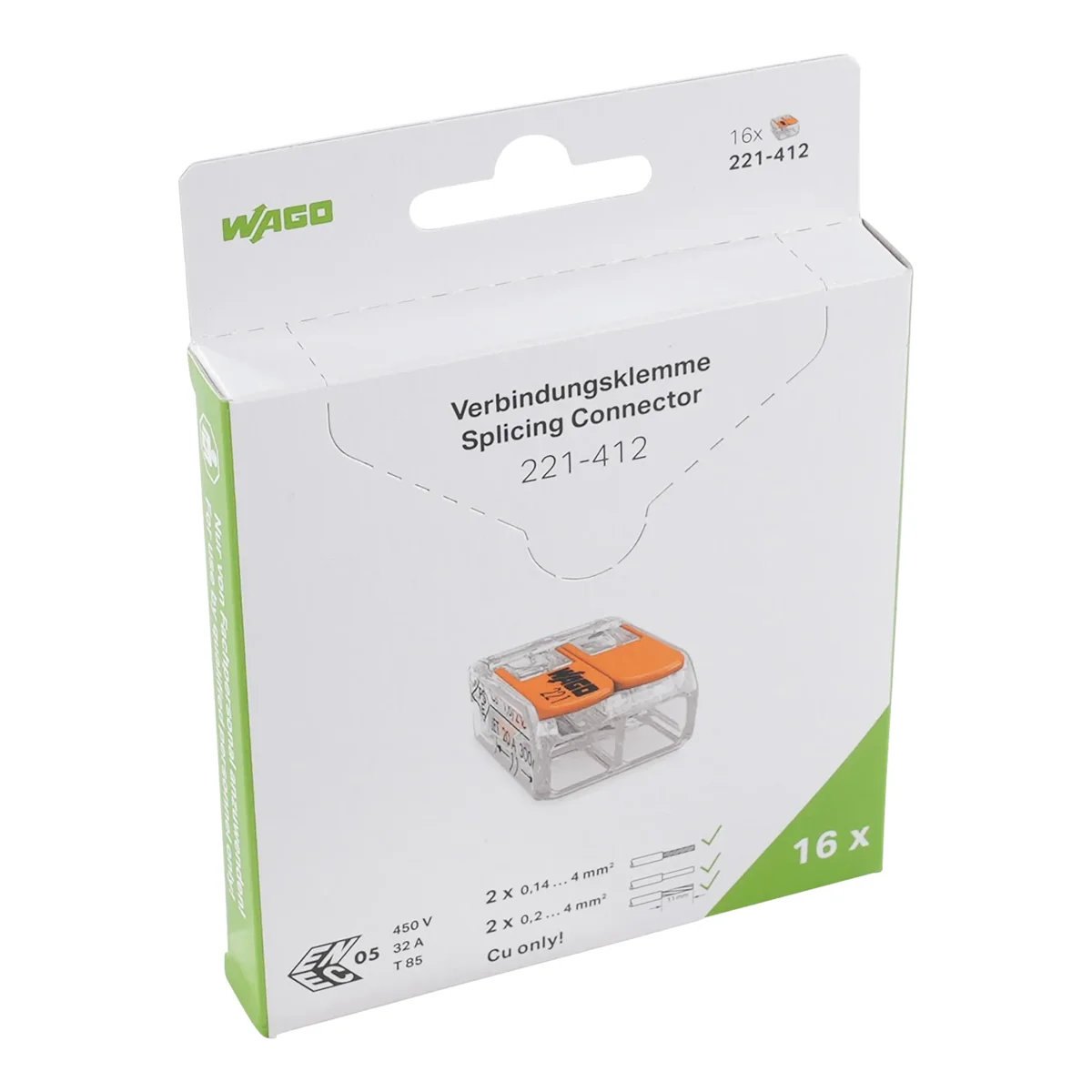

2-wire installation connectors for all types of wires

Cliquer sur la photo pour l'agrandir

Producteur: WAGO ELWAG

Depth [mm]: 18.6

Overvoltage category: III

Color: Transparent | Orange

Voir la description complète

Prix:

31,12 zł

gross / pack

(y compris la TVA 23%)

1,95 zł gross/pcs.

Accessible 43 pack

Quantité pack

(plusieurs:

1

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

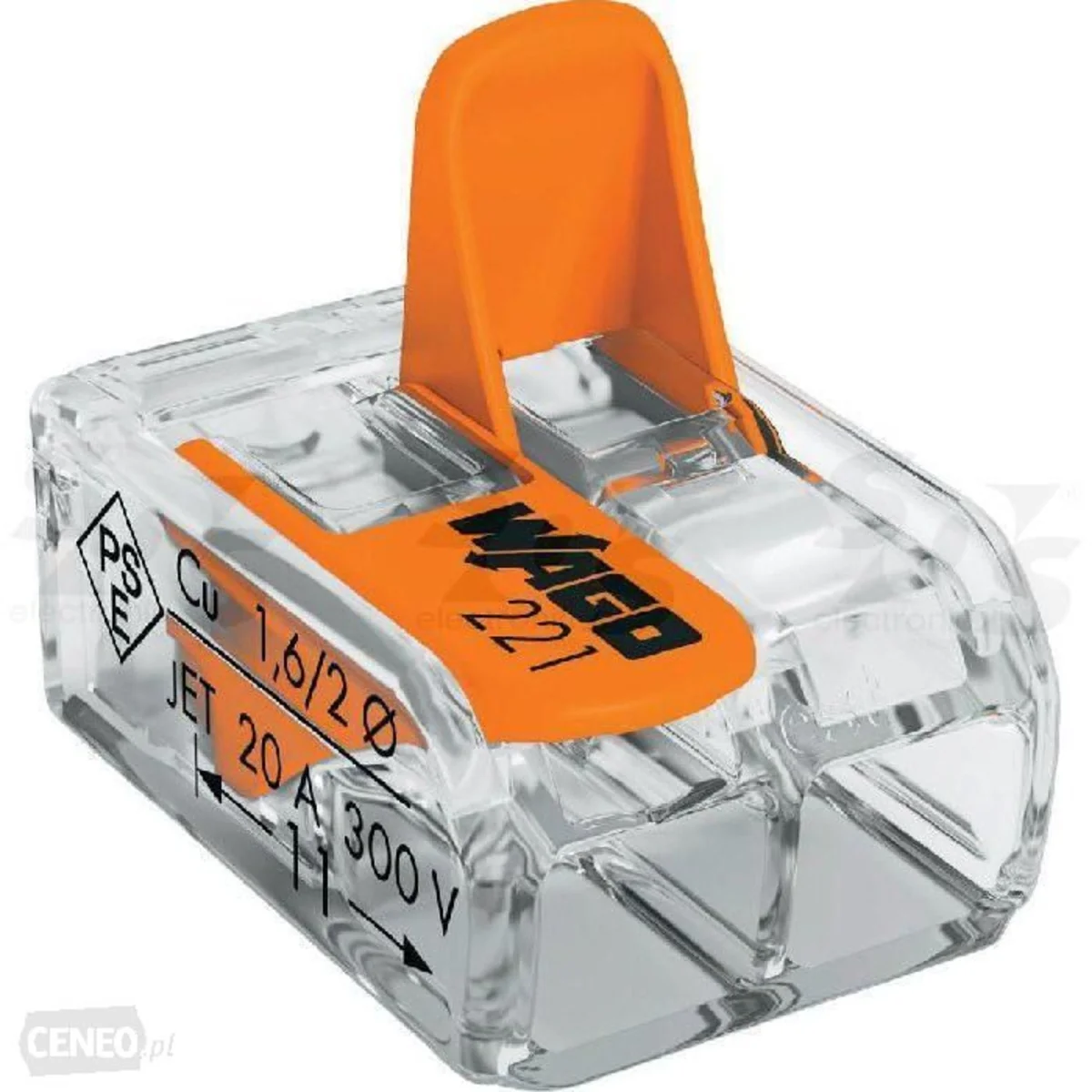

The new family of WAGO 221 series connectors enables faster and easier creation of a safe installation using various types of cables: single-wire, stranded or multi-wire.
The 221 series is designed for a nominal current of 32A and a nominal voltage of 450V and therefore can be used in 230V / 400V networks. The transparent housing provides full control of the placement of wires.

Données techniques

Depth [mm]

18.6
Color

Transparent Orange
Material

PC
Fire load [MJ]

0.049
Clamp type

Lever
Degree of contamination

2
Pieces in the package

16
Height [mm]

8.3
Number of connectors

2
Suitable cross sections [mm²]

0.14 0.25 0.34 0.5 0.75 1 1.5 2.5 4
Wire stripping length [mm]

11

Overvoltage category

III
Number of potentials

1
Rated voltage [V]

450
Rated current [A]

32
Family

221
Width [mm]

13.1
Weight [g]

1.7
Rated impulse voltage [kV]

4
Flammability class

V2
Clamping technique

CAGE CLAMP®

Autres données techniques

Number of clamp positions

2
With operation lever

Yes
Transparent

Yes
Nominal current

32 A
Suitable for flexible conductors

Yes
Conductor cross section flexible (fine-strand) with cable end sleeve

0.14 ... 4 mm²
AWG-range

12 ... 24

Nominal cross section

0.2 ... 4 mm²
Colour

Colourless
Nominal voltage

450 V
Suitable for solid conductors

Yes
Suitable for multi-wire conductors

Yes
Conductor cross section solid (solid, stranded)

0.2 ... 4 mm²
