2-wire connector L/L TOPJOBS gray 50pcs. 2000-2201

Name: 2-wire connector L/L TOPJOBS gray 50pcs.
Brand: WAGO ELWAG
SKU: TES756WAGO
Price: 163.42 PLN

Index local:

TES756WAGO

Numéro de catalogue:

2000-2201

Code EAN:

4050821891703

Cliquer sur la photo pour l'agrandir

Producteur: WAGO ELWAG

Color: Gray

Number of levels: 2

Rated current [A]: 13.5

Voir la description complète

Prix:

163,42 €

gross / pack

(y compris la TVA 23%)

3,27 € gross/pcs.

Livraison en 3h

jusqu'à 2 semaines (jours ouvrables)

Ramassage en 1h

Quantité pack

(plusieurs:

1

)

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

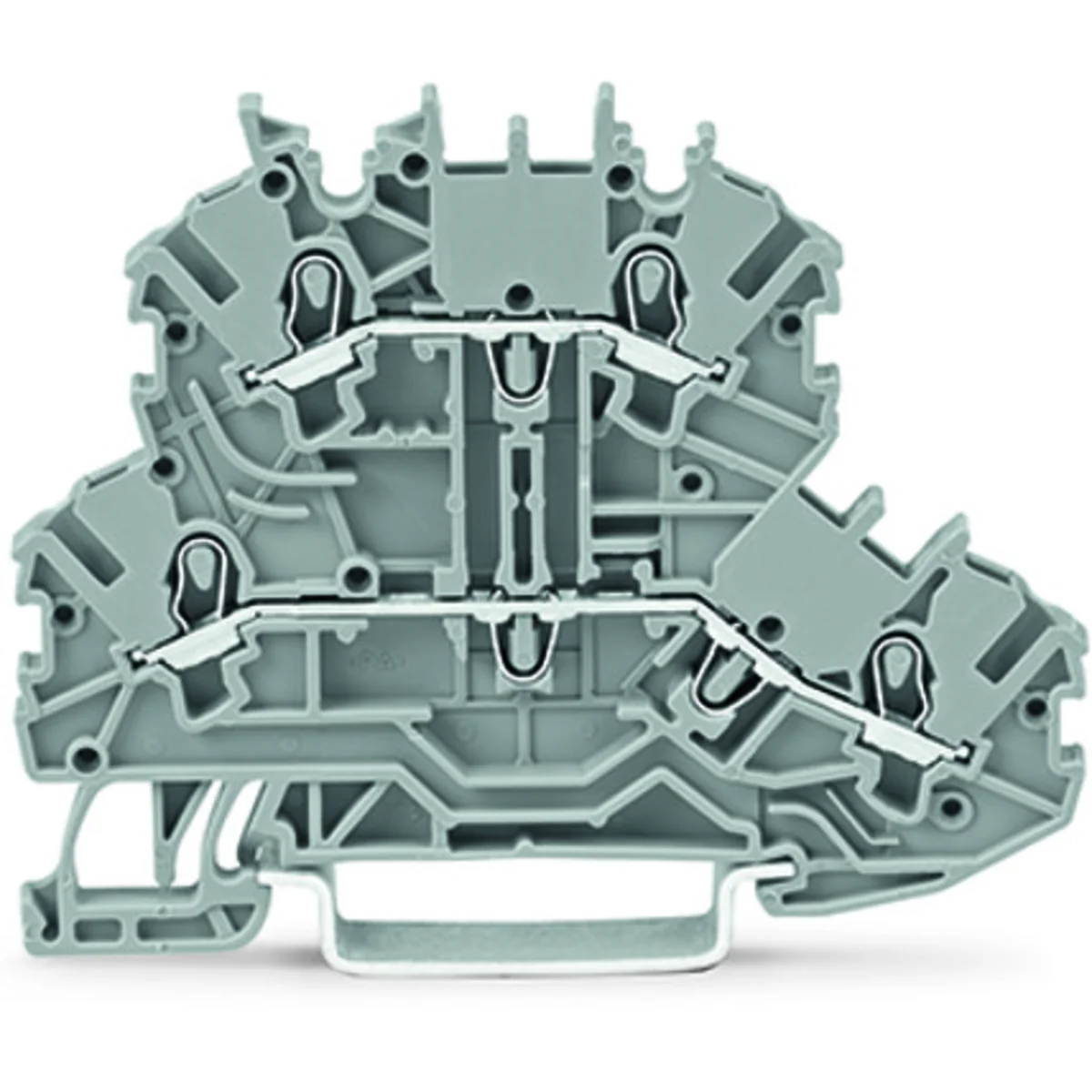

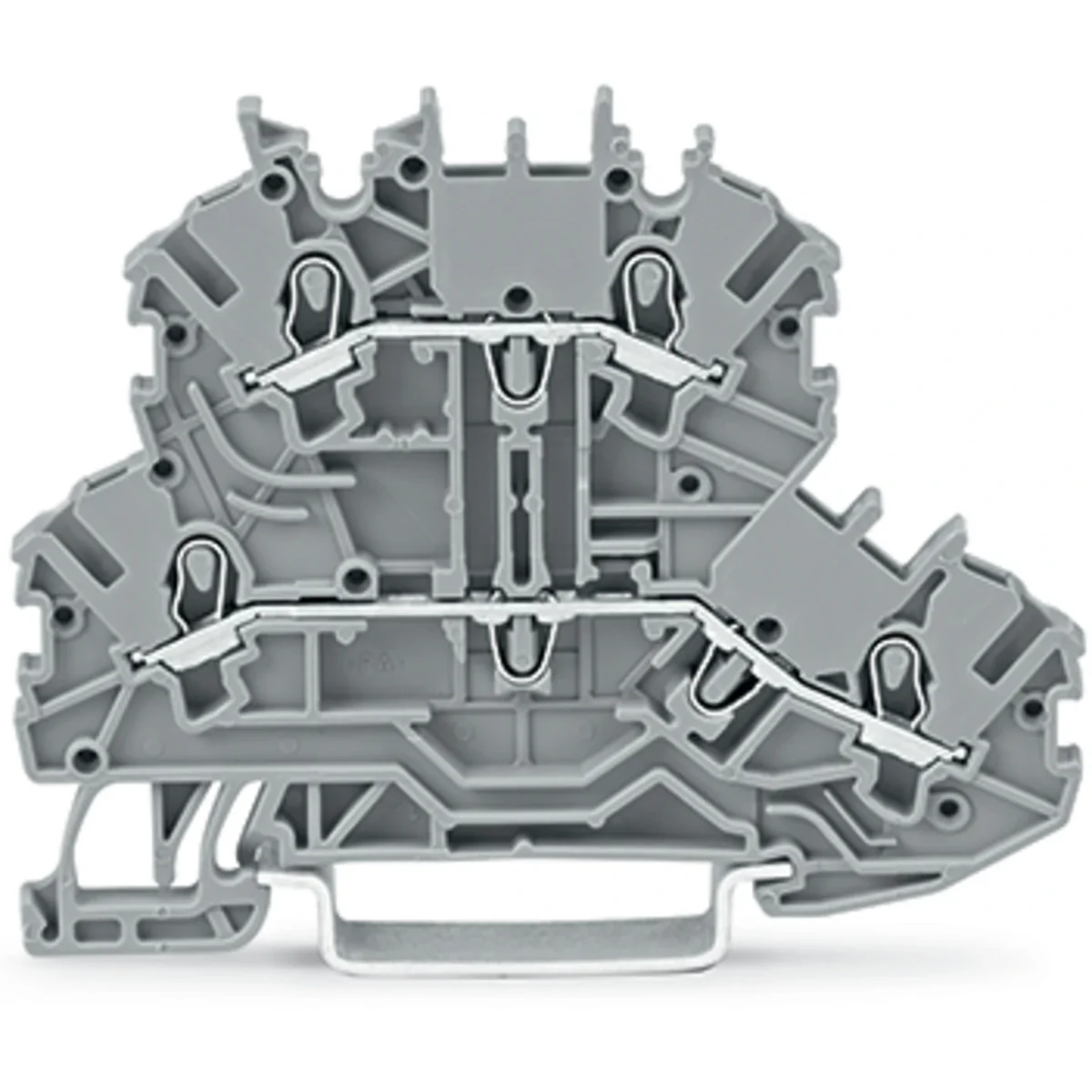

Double-deck feed/through L/L terminal block without marker carrier, gray housing.

Connectable conductor cross section fine-strand without cable end sleeve

0.14 ... 1.5 mm²
Connectable conductor cross section solid-core

0.5 ... 1.5 mm²
Rated current In

13.5 A
Type of electrical connection 1

Spring clamp connection
Connection position

Atop
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Wysokość przy najniższym sposobie montażu

52 mm
Explosion-tested version 'Ex e'

No
Colour

Grey

Connectable conductor cross section fine-strand with cable end sleeve

0.5 ... 0.75 mm²
Connectable conductor cross section multi-wired

0.14 ... 1 mm²
Rated voltage

500 V
Type of electrical connection 2

Spring clamp connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Width/grid dimension

3.5 mm
Length

69.7 mm
Closing plate required

Yes
Internally connected stages

No
