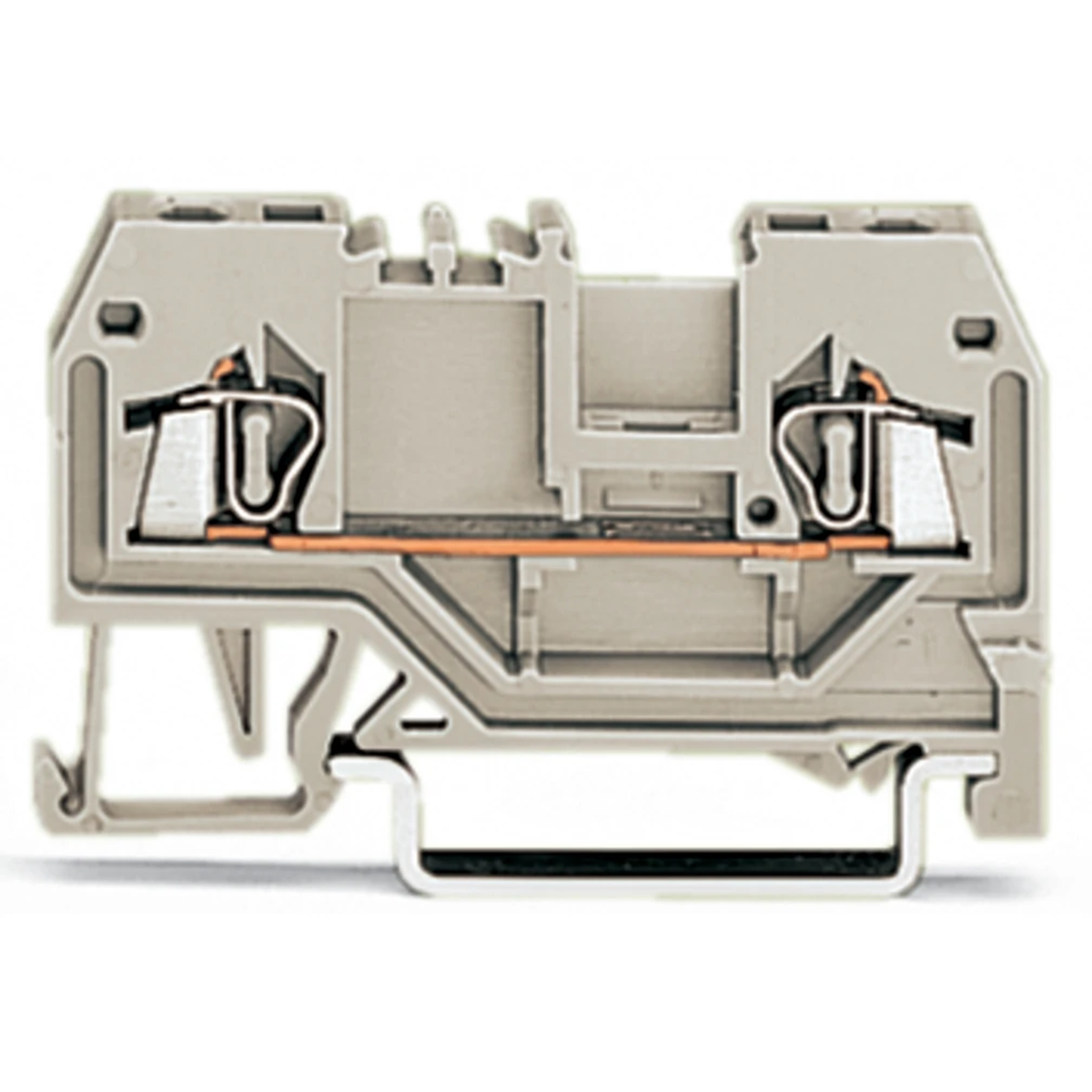

2-wire connector Ex 1.5mm² light gray 100pcs. 279-992

local index:
TEB153WAGO
Catalog No:
279-992
EAN code:
4044918524735
Manufacturer: WAGO ELWAG
Product group: 1 (strip terminal blocks)
Color: Gray
Number of potentials: 1
Price:
80,85 €
gross / pkg.
(including VAT 23%)
0,81 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

WAGO ELWAG Sp. z o. o. - 2-wire connector Ex 1.5 Mm2 Light grey

Technical data

  • Product group
    1 (strip terminal blocks)
  • Number of potentials
    1
  • Gauge [AWG]
    24 - 16
  • Series
    279
  • Pieces in the package
    100
  • Number of connectors
    2
  • Color
    Gray
  • Rated current [A]
    15
  • Clamp type
    CAGE CLAMP
  • How to install the cable
    Front mounting
  • Accurate color
    light gray

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.2 ... 1.5 mm²
  • Connectable conductor cross section multi-wired
    0.2 ... 1.5 mm²
  • Rated voltage
    550 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    4 mm
  • Length
    52 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
  • Connectable conductor cross section solid-core
    0.2 ... 1.5 mm²
  • Rated current In
    15 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    27 mm
  • Explosion-tested version 'Ex e'
    Yes
  • Colour
    Other

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,494
Volume (m3) 0,002
Width (m) 0,115
Length (m) 0,270
Depth (m) 0,037
