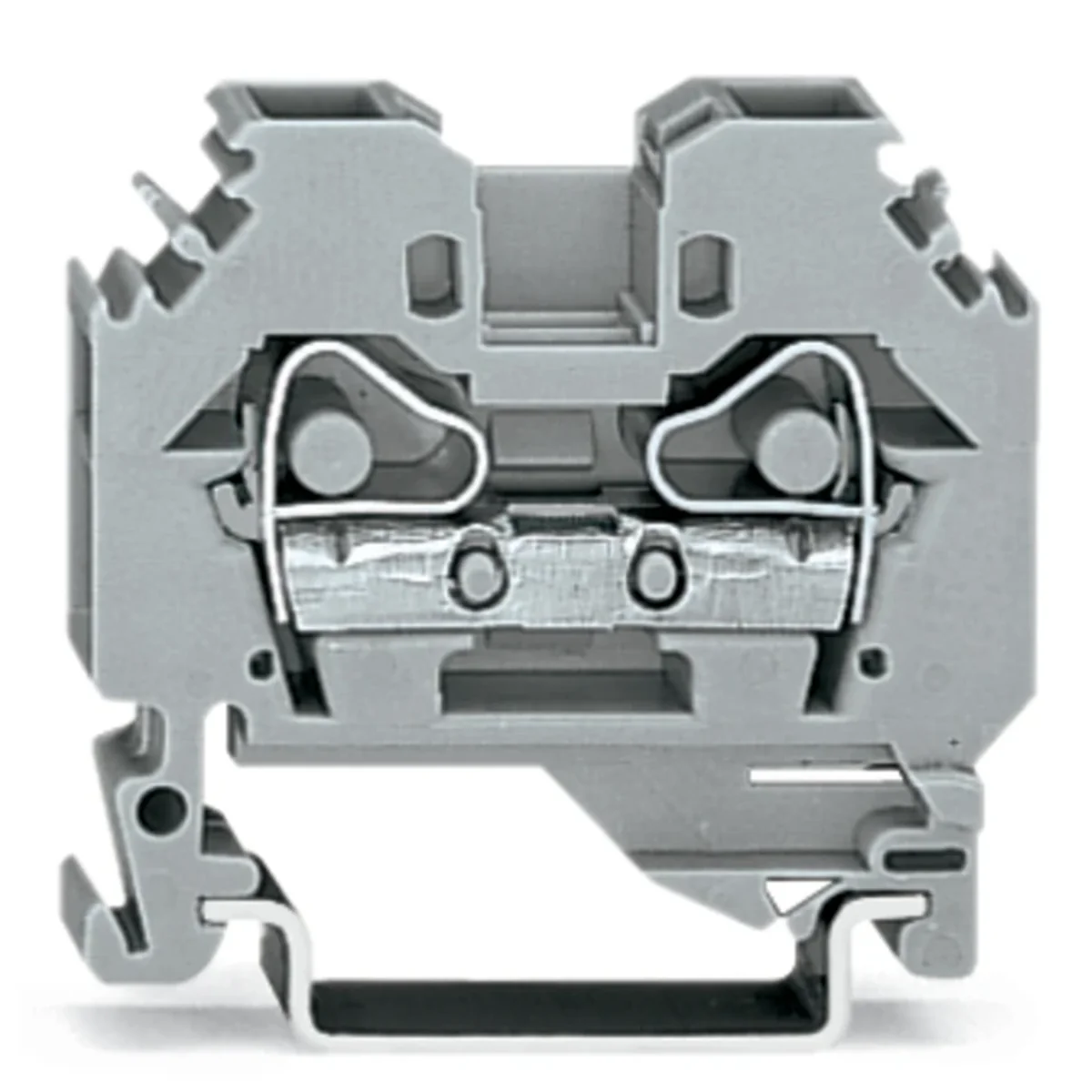

2-wire connector 6mm² gray 50pcs 282-101

local index:
TEB231WAGO
Catalog No:
282-101
EAN code:
4044918511070
Manufacturer: WAGO ELWAG
Color: Gray
Rated current [A]: 41
Gauge [AWG]: 2014-10-24 00:00:00
Price:
76,21 €
gross / pkg.
(including VAT 23%)
1,52 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

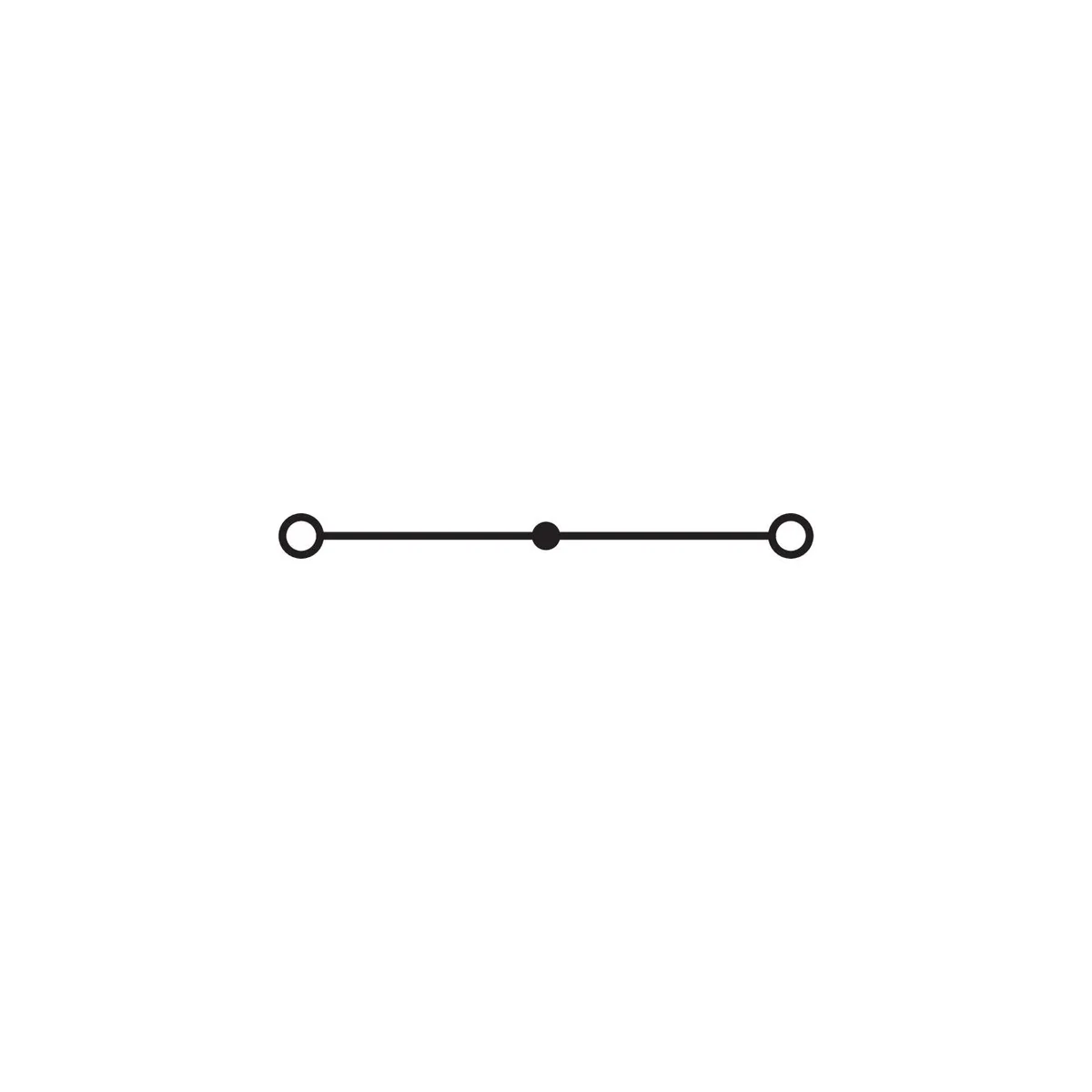

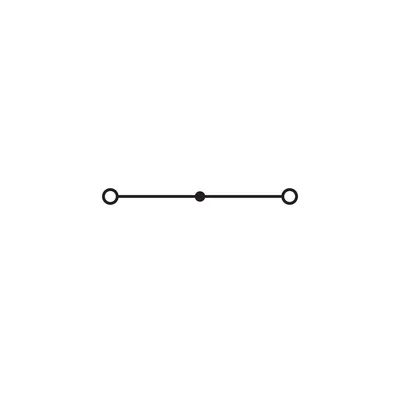

2-wire feed-through terminal.

Technical data

  • Color
    Gray
  • Gauge [AWG]
    2014-10-24 00:00:00
  • Series
    282
  • Pieces in the package
    50
  • Rated impulse voltage [kV]
    8
  • Rated current [A]
    41
  • Clamp type
    CAGE CLAMP
  • Dirt zone
    3
  • Weight [g]
    11.286

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.2 ... 6 mm²
  • Connectable conductor cross section multi-wired
    0.2 ... 6 mm²
  • Rated voltage
    800 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    8 mm
  • Length
    46.5 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
  • Connectable conductor cross section solid-core
    0.2 ... 6 mm²
  • Rated current In
    41 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    37 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,609
Volume (m3) 0,001
Width (m) 0,102
Length (m) 0,267
Depth (m) 0,048
