Connecting cables and wires
Connectors
Screwless connectors

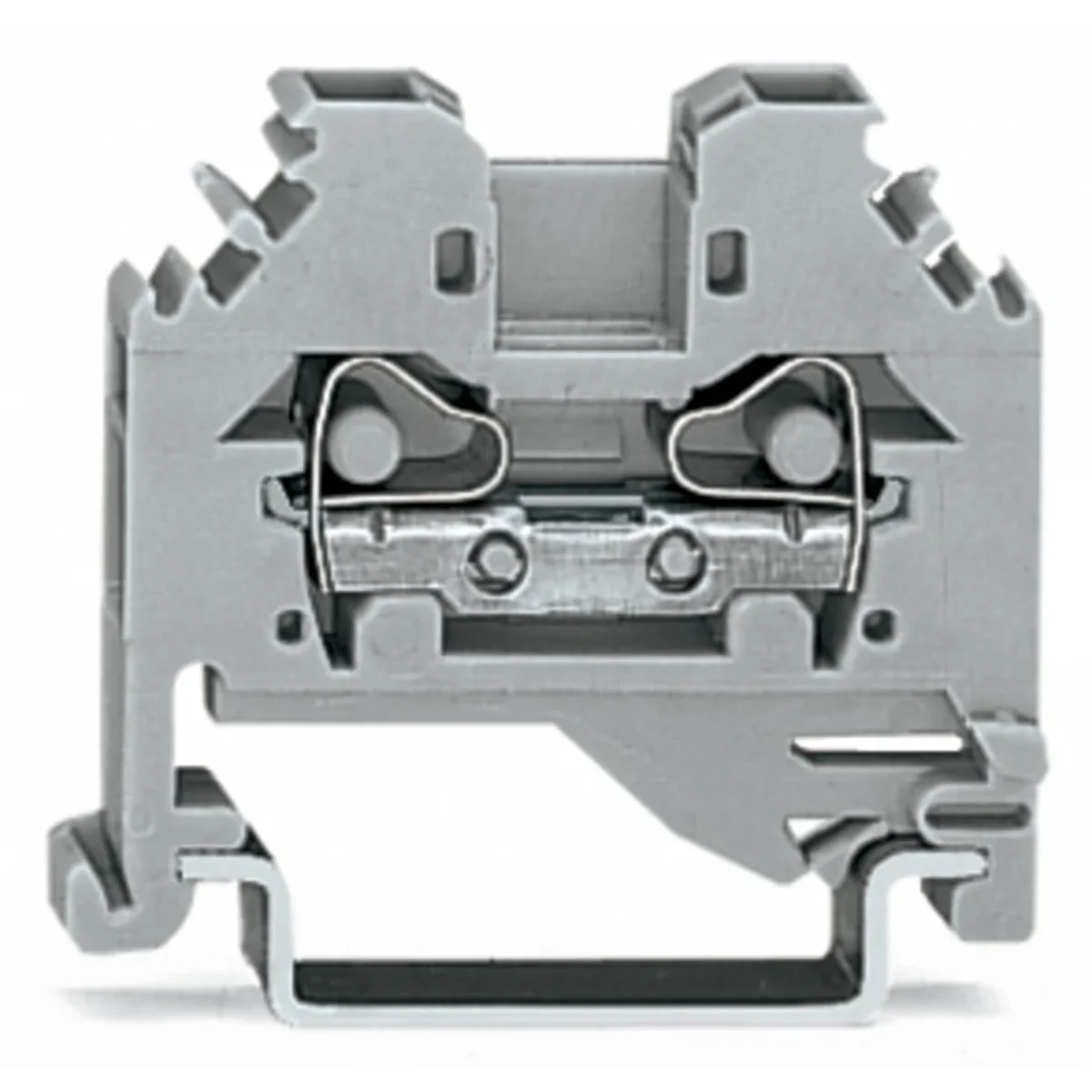

2-wire connector 4mm² gray 100pcs 281-101
local index:
TEB262WAGO
Catalog No:
281-101
EAN code:
4044918618168
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Product group:
1 (strip terminal blocks)
Color:
Gray
Number of potentials:
1
See full description
Price:
98,81 €
gross / pkg.
(including VAT 23%)
0,99 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
2-wire feed-through terminal
Technical data
Product group
1 (strip terminal blocks)
Number of potentials
1
Gauge [AWG]
2014-12-28 00:00:00
Series
281
Dirt zone
3
Weight [g]
5.934
Accurate color
Gray
Color
Gray
Rated current [A]
32
Clamp type
CAGE CLAMP
How to install the cable
Front mounting
Pieces in the package
100
Rated impulse voltage [kV]
8
Number of connectors
2
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.08 ... 4 mm²
Connectable conductor cross section multi-wired
0.08 ... 4 mm²
Rated voltage
800 V
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
6 mm
Length
42.5 mm
Closing plate required
Yes
Internally connected stages
No
Connectable conductor cross section solid-core
0.08 ... 4 mm²
Rated current In
32 A
Type of electrical connection 1
Spring clamp connection
Connection position
Sideways
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
32.5 mm
Explosion-tested version 'Ex e'
No
Colour
Grey
Bulk packaging
A kind of package
Karton
Quantity
1 pkg.
Weight (kg)
0,656
Volume (m3)
0,001
Width (m)
0,098
Length (m)
0,319
Depth (m)
0,052
See more >>
