2-wire connector 35mm² blue 285-634

local index:
TEB255WAGO
Catalog No:
285-634
EAN code:
4045454218706
Manufacturer: WAGO ELWAG
Color: Blue
Number of potentials: 1
Rated current [A]: 125
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
4,55 €
gross / pcs.
(including VAT 23%)
Last lowest price: 4,55 € gross
Base price: 14,69 € gross -69%
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

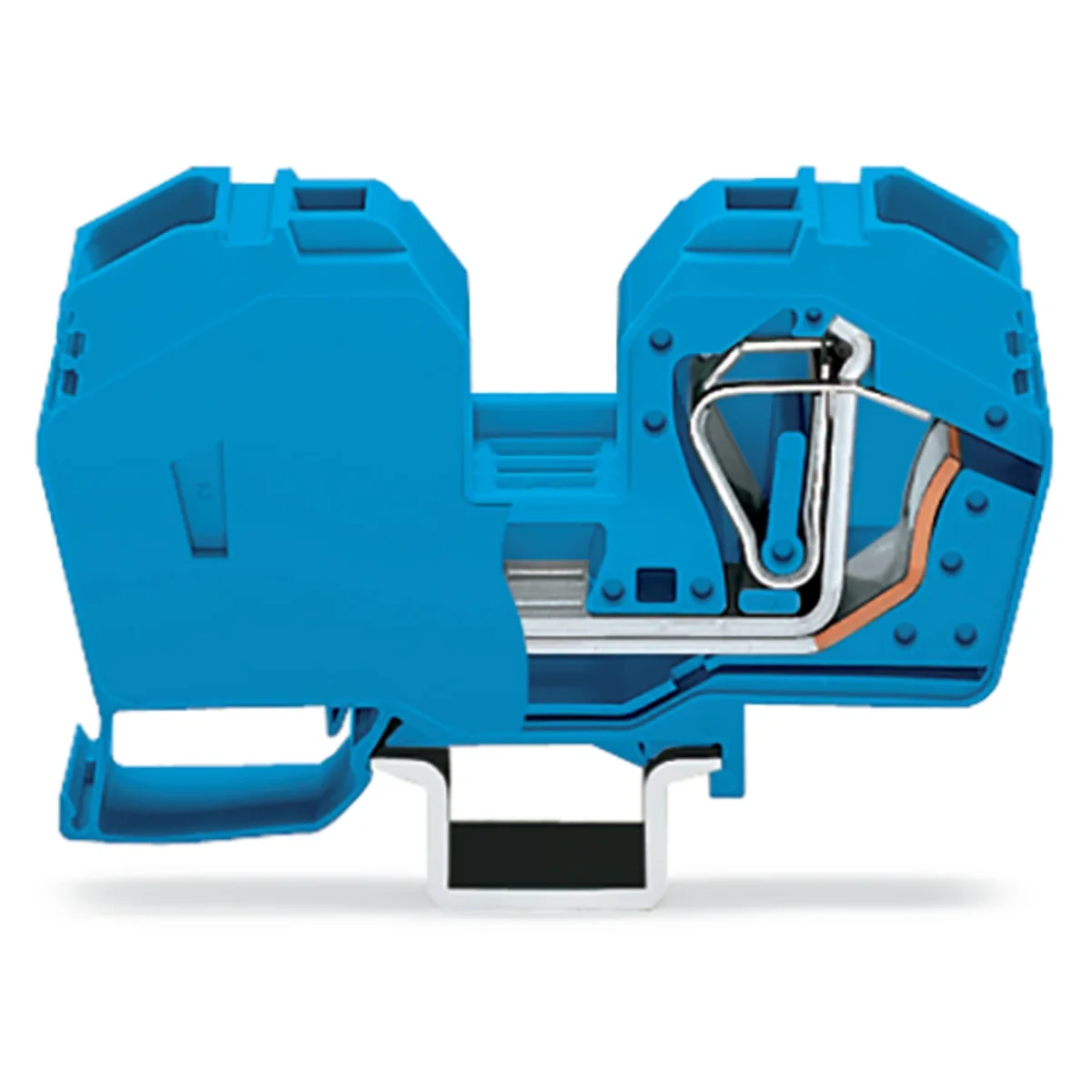

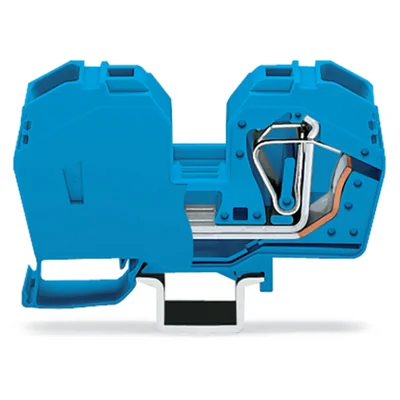

2-conductor feed-through terminal block with integrated end plate

Technical data

  • Color
    Blue
  • Rated current [A]
    125
  • Clamp type
    CAGE CLAMP
  • How to install the cable
    Front mounting
  • Rated impulse voltage [kV]
    8
  • Number of connectors
    2
  • Number of potentials
    1
  • Gauge [AWG]
    2014-10-02 00:00:00
  • Series
    285
  • Dirt zone
    3
  • Accurate color
    Blue

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    6 ... 35 mm²
  • Connectable conductor cross section multi-wired
    6 ... 35 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    16 mm
  • Length
    100 mm
  • Closing plate required
    No
  • Internally connected stages
    No
  • Connectable conductor cross section solid-core
    6 ... 35 mm²
  • Rated current In
    125 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    53 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Blue

Bulk packaging

A kind of package Karton
Quantity 15 pcs.
Weight (kg) 1,409
Volume (m3) 0,003
Width (m) 0,103
Length (m) 0,353
Depth (m) 0,072
