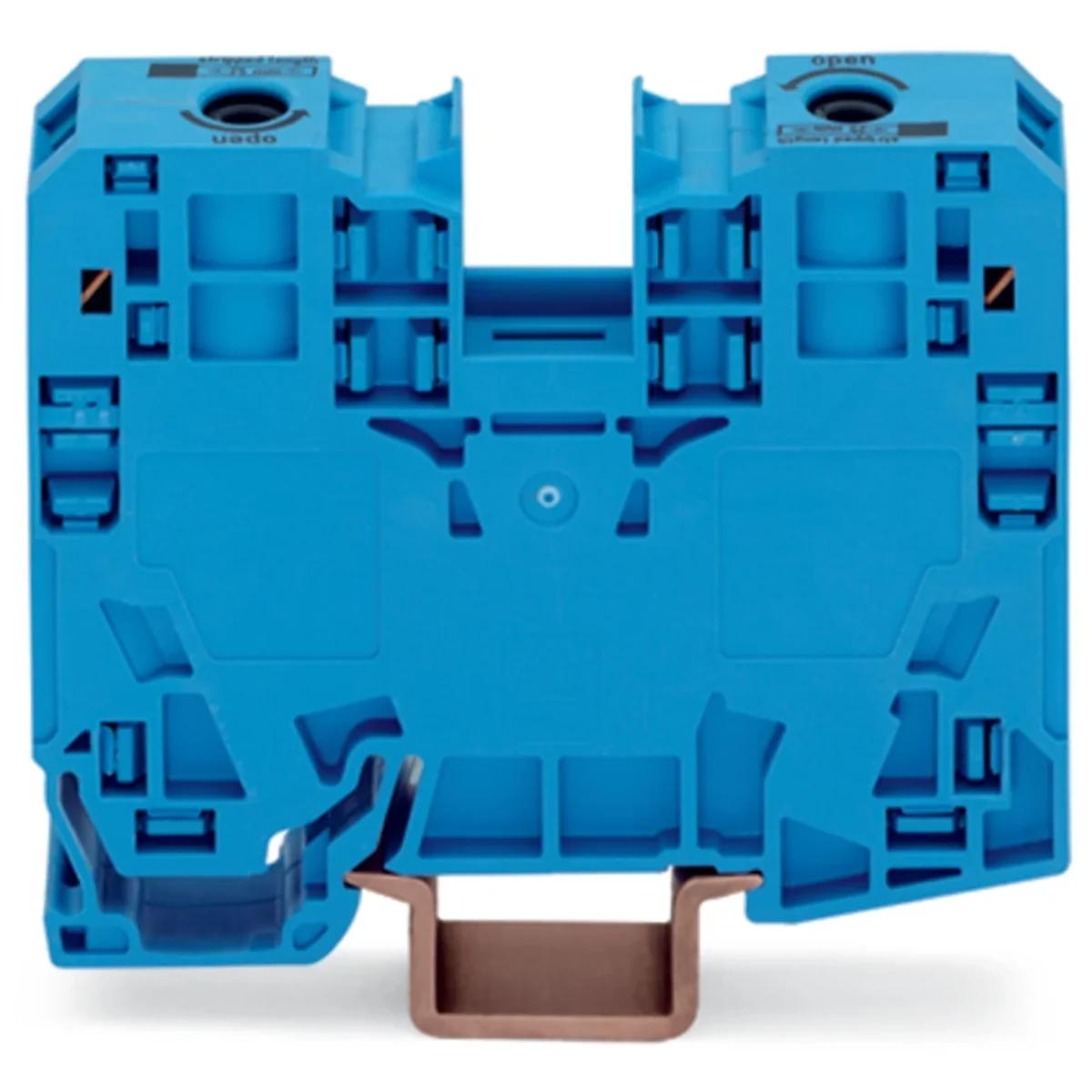

2-wire connector 35mm² blue 15pcs 285-134

local index:
TEB159WAGO
Catalog No:
285-134
EAN code:
4045454507398
Manufacturer: WAGO ELWAG
Stripping length [mm]: 0.98
Depth [mm]: 86
Color: Blue
Price:
107,78 €
gross / pkg.
(including VAT 23%)
7,19 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

2-wire connector 35 mm2 blue

Technical data

  • Stripping length [mm]
    0.98
  • Color
    Blue
  • Number of potentials
    1
  • Surge voltage [kV]
    8
  • Fire load [MJ]
    1.246
  • Rated current [A]
    125
  • Type of wiring
    Side wiring
  • Degree of contamination
    3
  • Pieces in the package
    15
  • Weight [g]
    79,349
  • Maximum stripping length [mm]
    25
  • Number of connectors
    2
  • Depth [mm]
    86
  • Construction
    Horizontal design
  • Installation
    On the TH-35 rail
  • Rated voltage EN [V]
    1000
  • The plane of description
    Description on the side
  • Gauge [AWG]
    10
  • Series
    285
  • Width [mm]
    16
  • Wire connection technique
    POWER CAGE CLAMP
  • Height [mm]
    63
  • Minimum stripping length [mm]
    25

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    6 ... 35 mm²
  • Connectable conductor cross section solid-core
    6 ... 35 mm²
  • Rated current In
    125 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    63 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Blue
  • Connectable conductor cross section fine-strand with cable end sleeve
    6 ... 35 mm²
  • Connectable conductor cross section multi-wired
    6 ... 35 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    16 mm
  • Length
    86 mm
  • Closing plate required
    No
  • Internally connected stages
    No

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 1,252
Volume (m3) 0,002
Width (m) 0,100
Length (m) 0,272
Depth (m) 0,084
