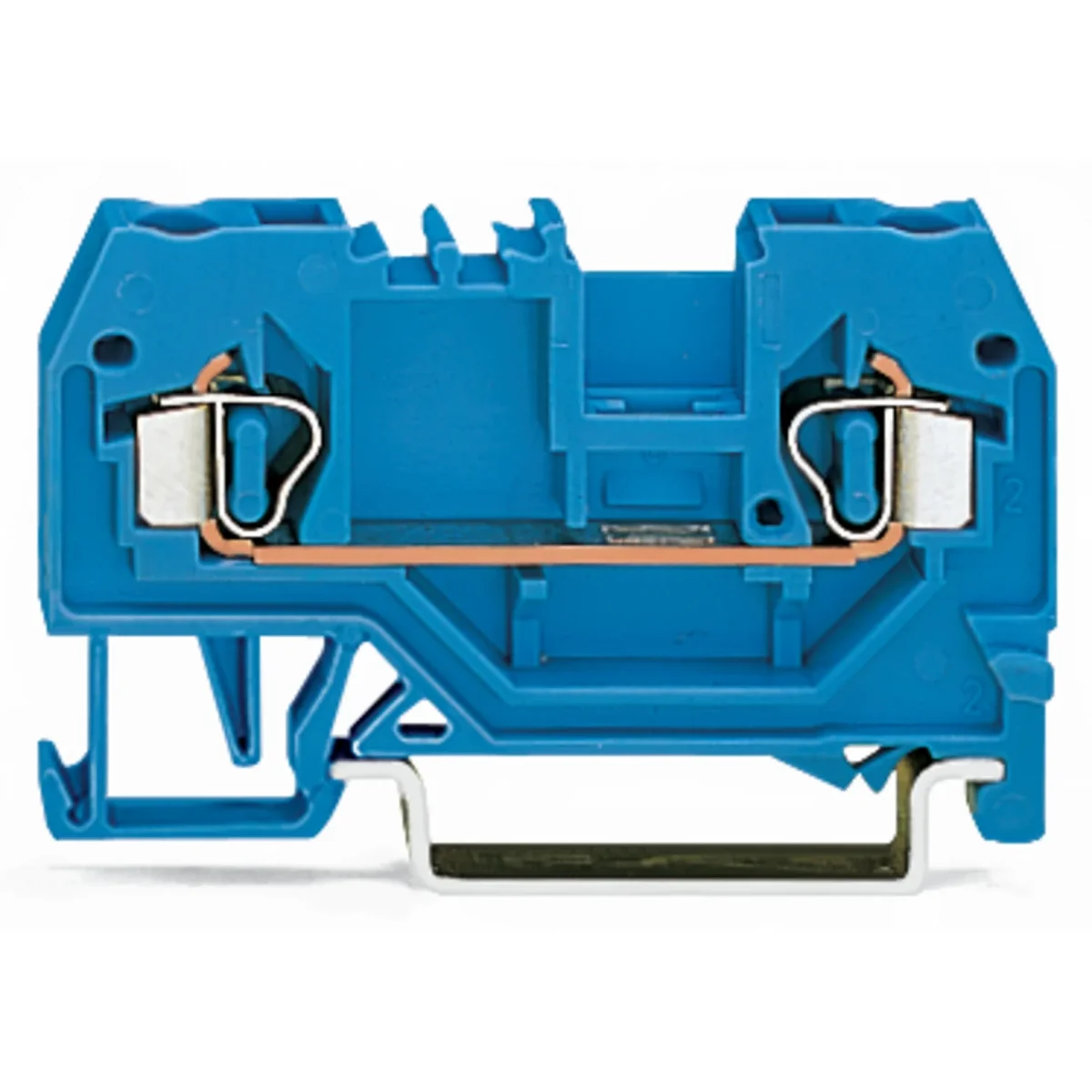

2-wire connector 2.5mm² blue 280-904
local index:
TES147WAGO
Catalog No:
280-904
EAN code:
4044918391870
Manufacturer:
WAGO ELWAG
Product group: 1 (strip terminal blocks)
Color: Blue
Number of potentials: 1
Price:
1,05 €
gross / pcs.
(including VAT 23%)
193,44 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

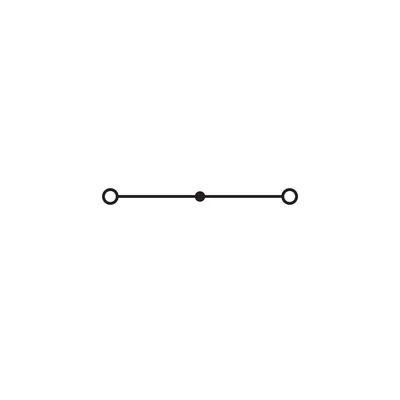

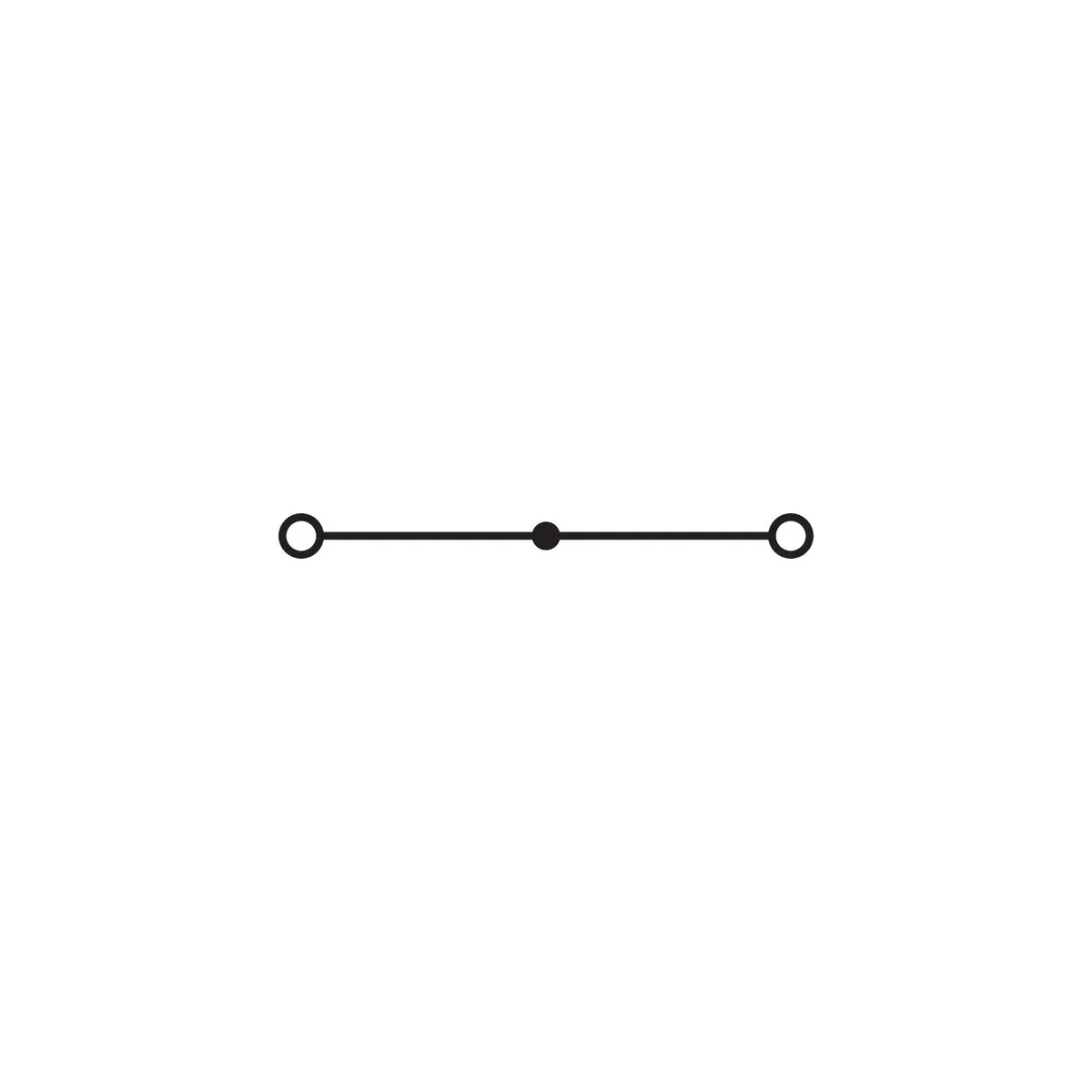

2-conductor feed-through terminal block, also suitable for use in Ex i circuits
Technical data
-
Product group1 (strip terminal blocks)
-
Number of potentials1
-
Gauge [AWG]2014-12-28 00:00:00
-
Series280
-
Dirt zone3
-
Rated impulse voltage [kV]8
-
Number of connectors2
-
ColorBlue
-
Rated current [A]24
-
Clamp typeCAGE CLAMP
-
How to install the cableFront mounting
-
Weight [g]5.428
-
Accurate colorBlue
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 2.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 2.5 mm²
-
Rated voltage800 V
-
Type of electrical connection 2Spring clamp connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature105 ... 105 °C
-
Width/grid dimension5 mm
-
Length53 mm
-
Closing plate requiredYes
-
Internally connected stagesNo
-
Connectable conductor cross section solid-core0.08 ... 2.5 mm²
-
Rated current In24 A
-
Type of electrical connection 1Spring clamp connection
-
Connection positionAtop
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu28 mm
-
Explosion-tested version 'Ex e'Yes
-
ColourBlue
Manufacturer details
-
ManufacturerWAGO ELWAG Sp. z o.o.
-
Address50-506 Wrocław Piękna 58A
-
E-mail
-
Tax identification number8961025689
-
GLN4017332000000
Bulk packaging
| A kind of package | Karton |
| Quantity | 100 pcs. |
| Weight (kg) | 0,617 |
| Volume (m3) | 0,001 |
| Width (m) | 0,115 |
| Length (m) | 0,270 |
| Depth (m) | 0,037 |
