Connecting cables and wires
Connectors
Screwless connectors

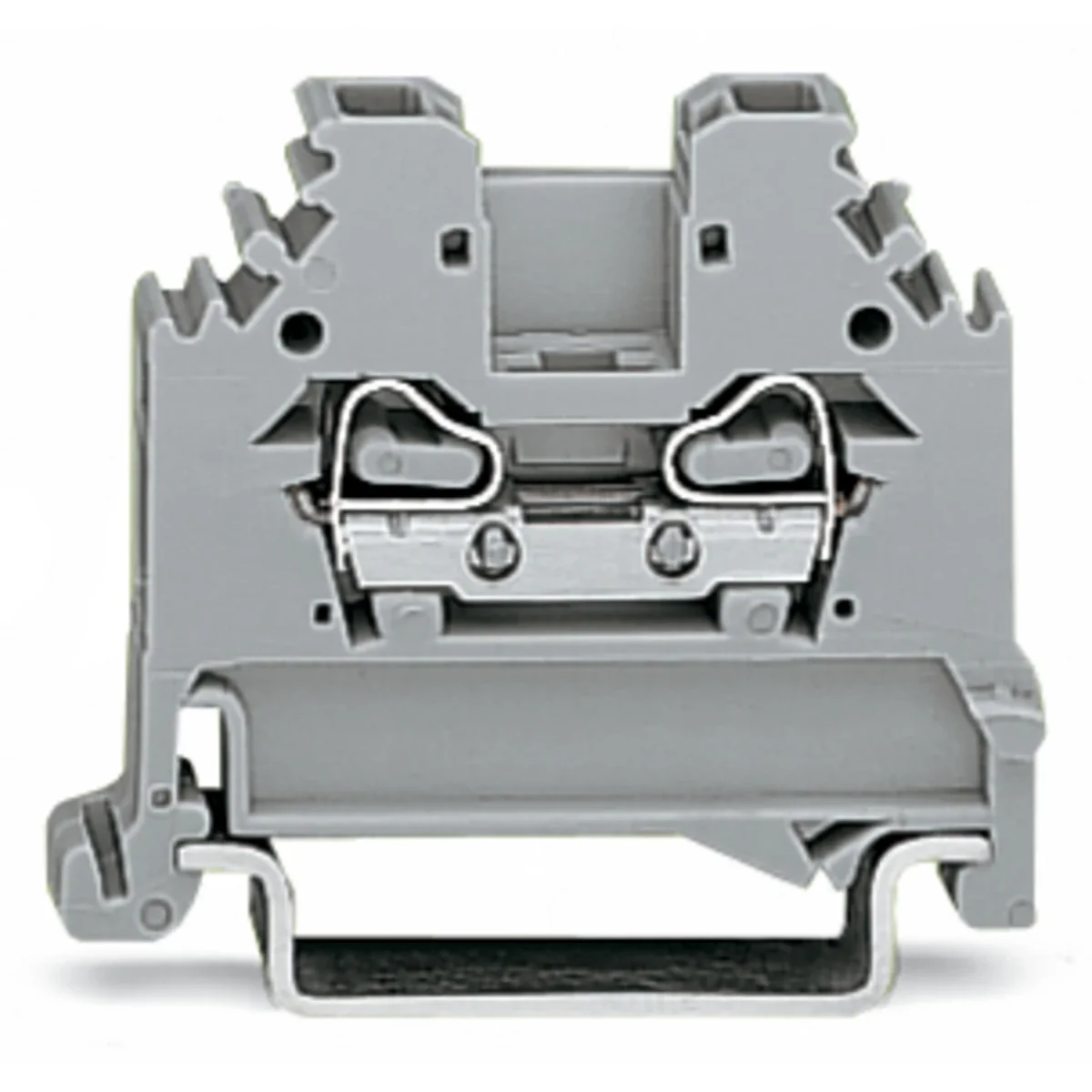

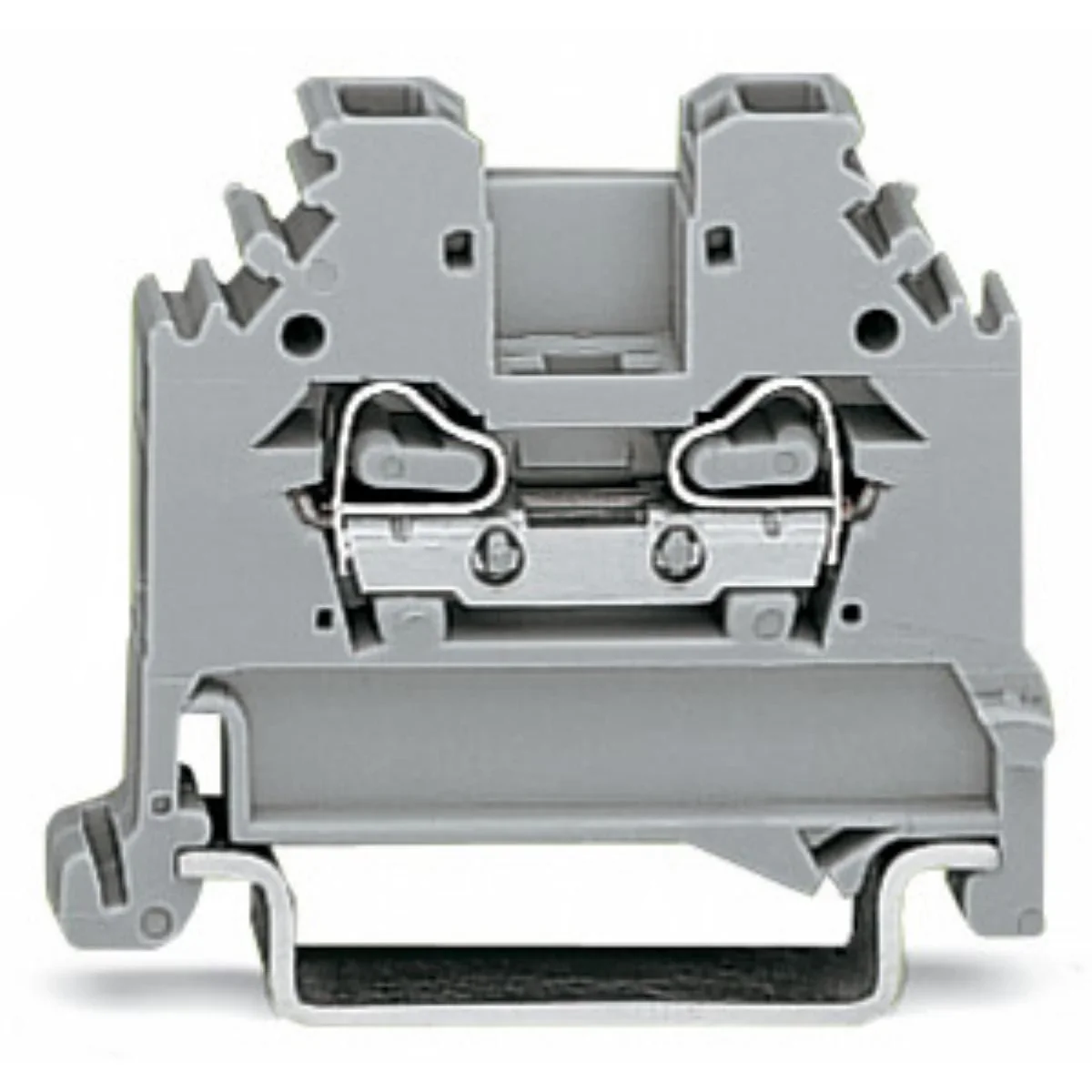

2-wire connector 2.5mm² 280-104
local index:
TEB268WAGO
Catalog No:
280-104
EAN code:
4045454044503
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Product group:
1 (strip terminal blocks)
Color:
Blue
Number of potentials:
1
See full description
Price:
0,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Product description

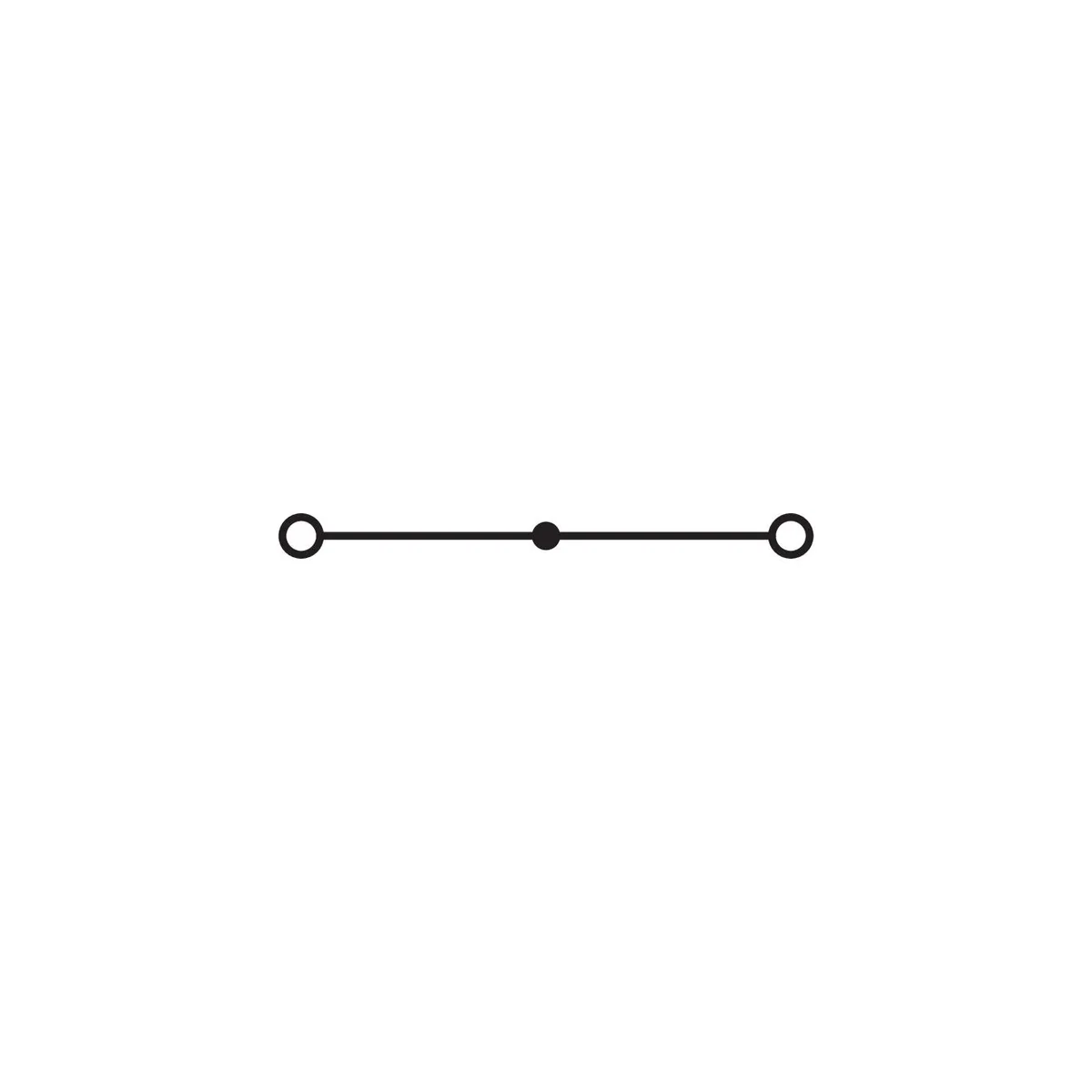

2-conductor feed-through terminal block, also suitable for use in Ex i circuits
Technical data
Product group
1 (strip terminal blocks)
Number of potentials
1
Gauge [AWG]
2014-12-28 00:00:00
Series
280
Rated impulse voltage [kV]
8
Number of connectors
2
Color
Blue
Rated current [A]
24
Clamp type
CAGE CLAMP
How to install the cable
Side mounting
Accurate color
Blue
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.08 ... 2.5 mm²
Connectable conductor cross section multi-wired
0.08 ... 2.5 mm²
Rated voltage
800 V
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
105 ... 105 °C
Width/grid dimension
5 mm
Length
42.5 mm
Closing plate required
Yes
Internally connected stages
No
Connectable conductor cross section solid-core
0.08 ... 2.5 mm²
Rated current In
24 A
Type of electrical connection 1
Spring clamp connection
Connection position
Sideways
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
30.5 mm
Explosion-tested version 'Ex e'
Yes
Colour
Blue
Manufacturer details
Manufacturer
WAGO ELWAG Sp. z o.o.
Address
50-506 Wrocław Piękna 58A
E-mail
wago.elwag@wago.com
WWW
https://wago.elwag@wago.com
Tax identification number
8961025689
GLN
4017332000000
Bulk packaging
A kind of package
Karton
Quantity
100 pcs.
Weight (kg)
0,443
Volume (m3)
0,001
Width (m)
0,102
Length (m)
0,267
Depth (m)
0,048
