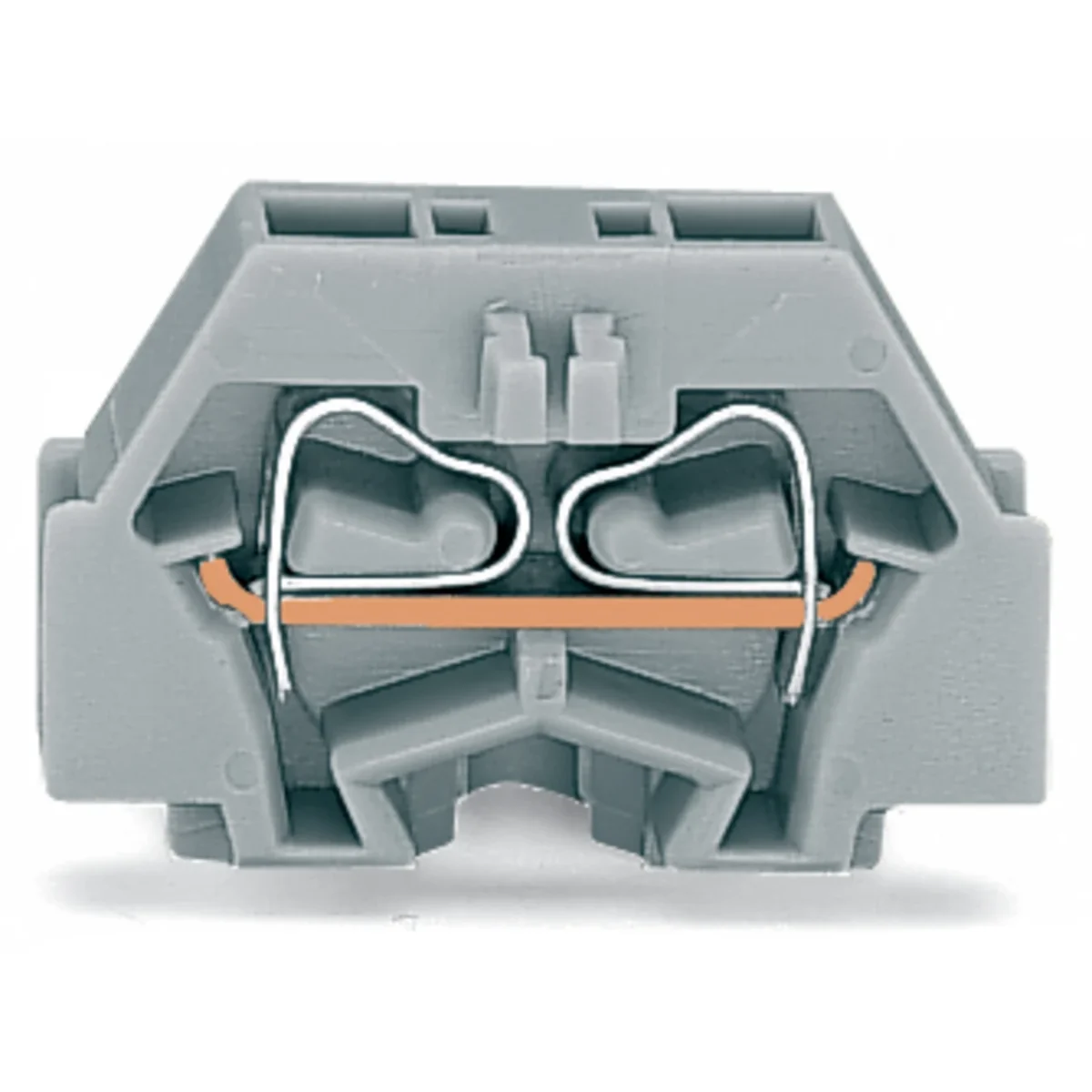

2-wire connector 1.5mm² width 5mm gray with screw fixing 50pcs. 260-301

local index:
TEB952WAGO
Catalog No:
260-301
EAN code:
4044918593359
Manufacturer: WAGO ELWAG
Length [mm]: 25
Color: Gray
Number of poles: 1
Price:
16,15 €
gross / pkg.
(including VAT 23%)
0,32 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

2-wire connector 1.5mm2 width 5mm gray with screw mounting

Technical data

  • Length [mm]
    25
  • Number of poles
    1
  • Rated current [A]
    18
  • Cross-section of the connected stranded wire without ferrule [mm]
    0.08 - 1.5
  • Type of electrical connection
    Spring clip
  • Width [mm]
    5
  • Height [mm]
    17
  • Color
    Gray
  • Number of terminals per pole
    2
  • Cross-section of connected single-wire cable [mm]
    0.08 - 1.5
  • Cross-section of connected multicore cable [mm]
    0.08 - 1.5
  • Series
    260
  • Pieces in the package
    50
  • Accurate color
    Gray

Other technical data

  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section solid-core
    0.08 ... 1.5 mm²
  • Rated current In
    18 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    17 mm
  • Closing plate required
    Yes
  • Transparent
    No
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 1.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 1.5 mm²
  • Rated voltage
    400 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of poles
    1
  • Mounting method
    Other
  • Operating temperature
    -30 ... 85 °C
  • Width/grid dimension
    5 mm
  • Length
    25 mm
  • Colour
    Grey

Bulk packaging

A kind of package Karton
Quantity 6 pkg.
Weight (kg) 0,550
Volume (m3) 0,003
Width (m) 0,139
Length (m) 0,172
Depth (m) 0,136
