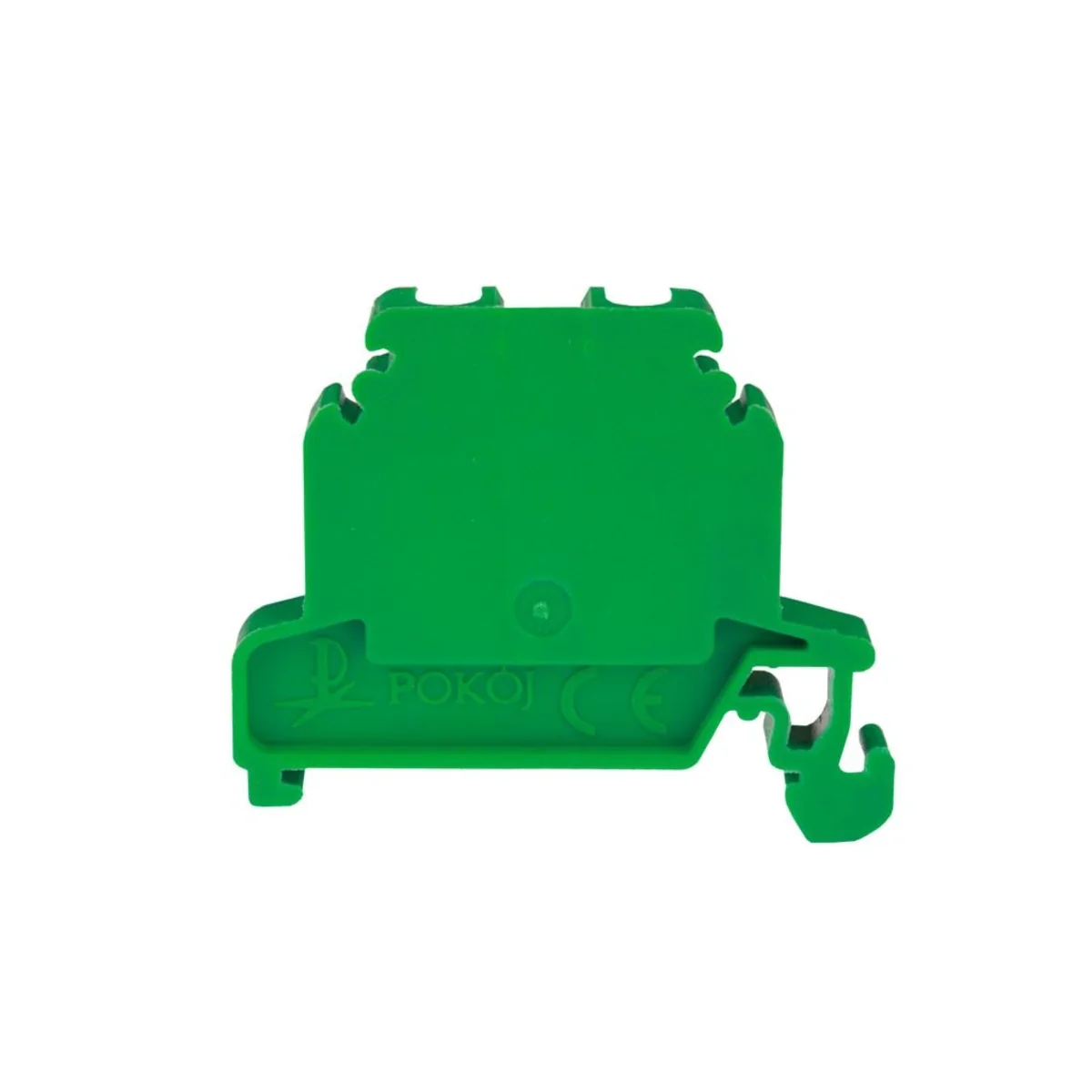

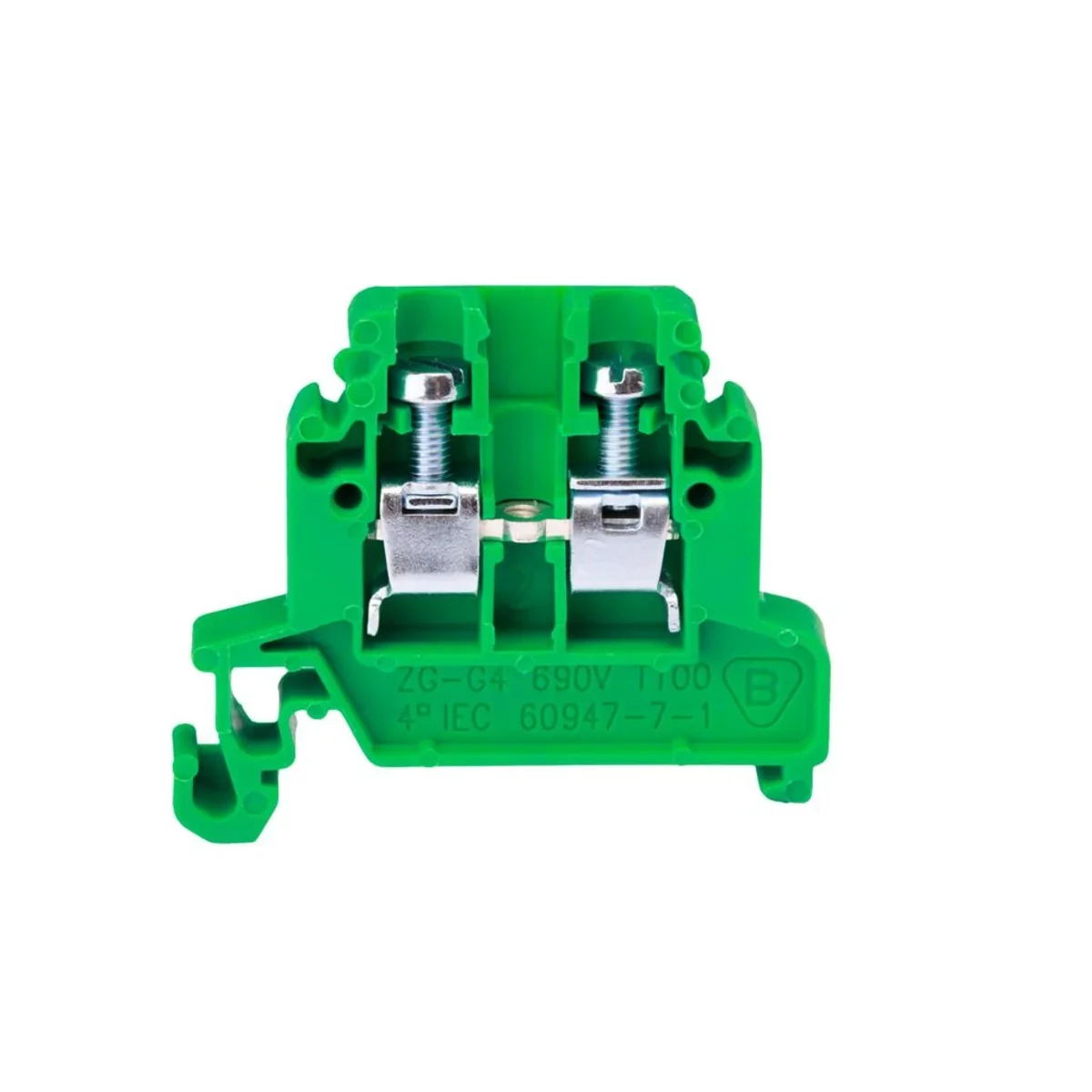

2-wire busbar connector 4mm2 green ZG-G4 A11-8205 A11-8205

Name: 2-wire busbar connector 4mm2 green ZG-G4 A11-8205
Brand: POKÓJ
SKU: TES216POKO
Price: 5.34 PLN
Availability: BackOrder

local index:

TES216POKO

Catalog number:

A11-8205

EAN code:

5902626136987

Click on the photo to enlarge

Manufacturer: POKÓJ

Price:

5,34 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Technical data Manufacturer details Files to download

Technical data

Connectable conductor cross section fine-strand without cable end sleeve

0.5 ... 4 mm²
Connectable conductor cross section solid-core

0.5 ... 4 mm²
Rated current In

32 A
Type of electrical connection 1

Screw connection
Connection position

Atop
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V2
Wysokość przy najniższym sposobie montażu

31 mm
Explosion-tested version 'Ex e'

No
Colour

Green

Connectable conductor cross section fine-strand with cable end sleeve

0.5 ... 4 mm²
Connectable conductor cross section multi-wired

0.5 ... 4 mm²
Rated voltage

690 V
Type of electrical connection 2

Screw connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

-25 ... 100 °C
Width/grid dimension

6.4 mm
Length

43.5 mm
Closing plate required

Yes
Internally connected stages

No
