2-wire base connector gray 2002-1661 2002-1661

Name: 2-wire base connector gray 2002-1661
Brand: WAGO ELWAG
SKU: TEB461WAGO
Price: 10.93 PLN
Availability: BackOrder

Índice local:

TEB461WAGO

Número de catálogo:

2002-1661

Código EAN:

4055143897143

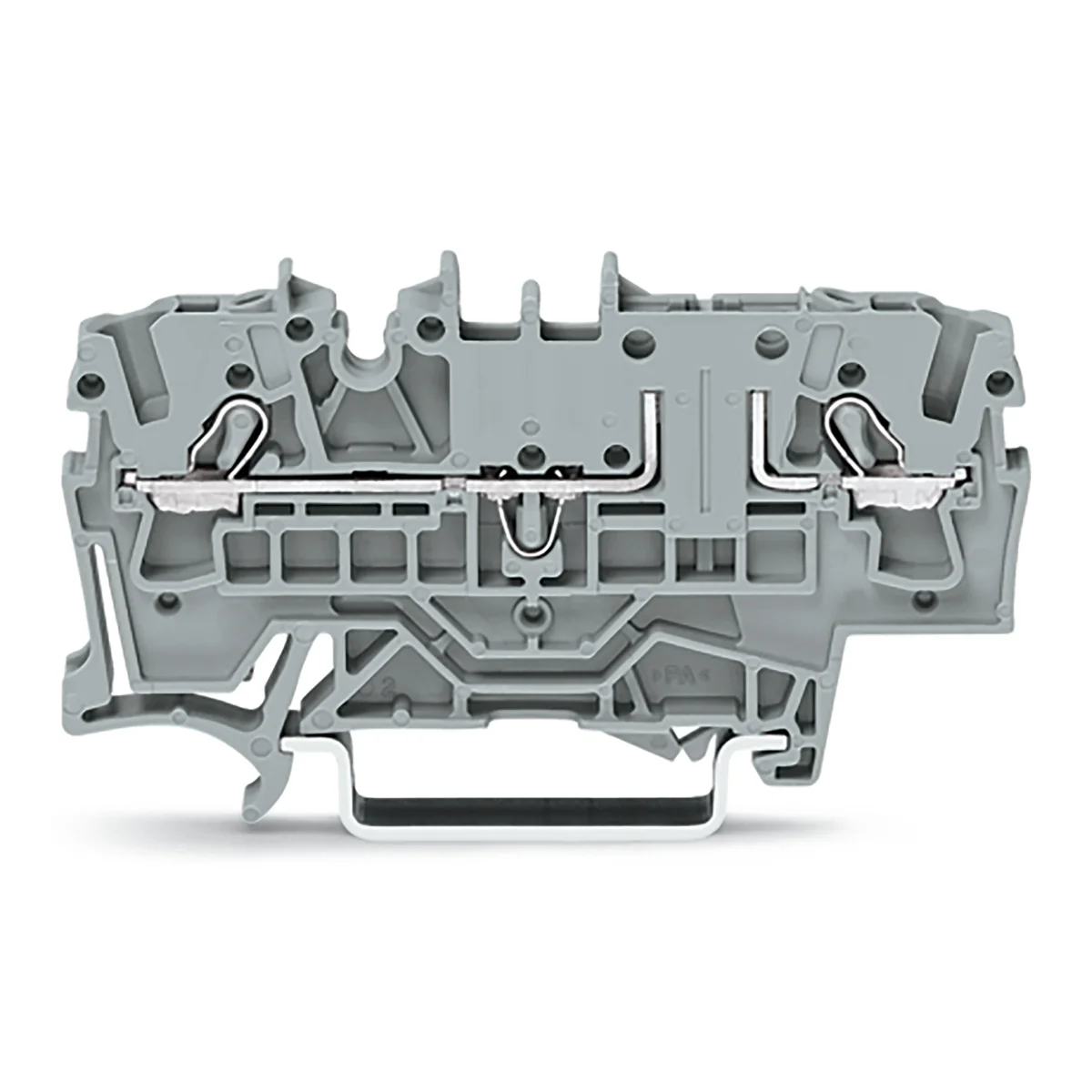

Haga clic en la foto para ampliar

Fabricante: WAGO ELWAG

Precio:

10,93 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Empaquetado a granel

Datos técnicos

Connectable conductor cross section fine-strand without cable end sleeve

0.25 ... 4 mm²
Connectable conductor cross section solid-core

0.75 ... 4 mm²
Rated current In

16 A
Type of electrical connection 1

Spring clamp connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Height

66.1 mm
Explosion-tested version 'Ex e'

Yes
Colour

Grey

Connectable conductor cross section fine-strand with cable end sleeve

0.75 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.25 ... 2.5 mm²
Rated voltage

400 V
Type of electrical connection 2

Spring clamp connection
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Width

5.2 mm
Depth

32.9 mm
Closing plate required

Yes
Internally connected stages

No
