2-way black socket with strain relief housing WINSTA MINI 890-102

Name: 2-way black socket with strain relief housing WINSTA MINI
Brand: WAGO ELWAG
SKU: ANM003WAGO
Price: 20.48 PLN
Availability: BackOrder

local index:

ANM003WAGO

Catalog number:

890-102

EAN code:

4045454231729

2-way black socket with strain relief housing WINSTA MINI

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Depth [mm]: 2.425

Number of contacts: 2

Number of terminals: 2

See full description

Price:

20,48 zł

gross / pcs.

(including VAT 23%)

up to 2 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

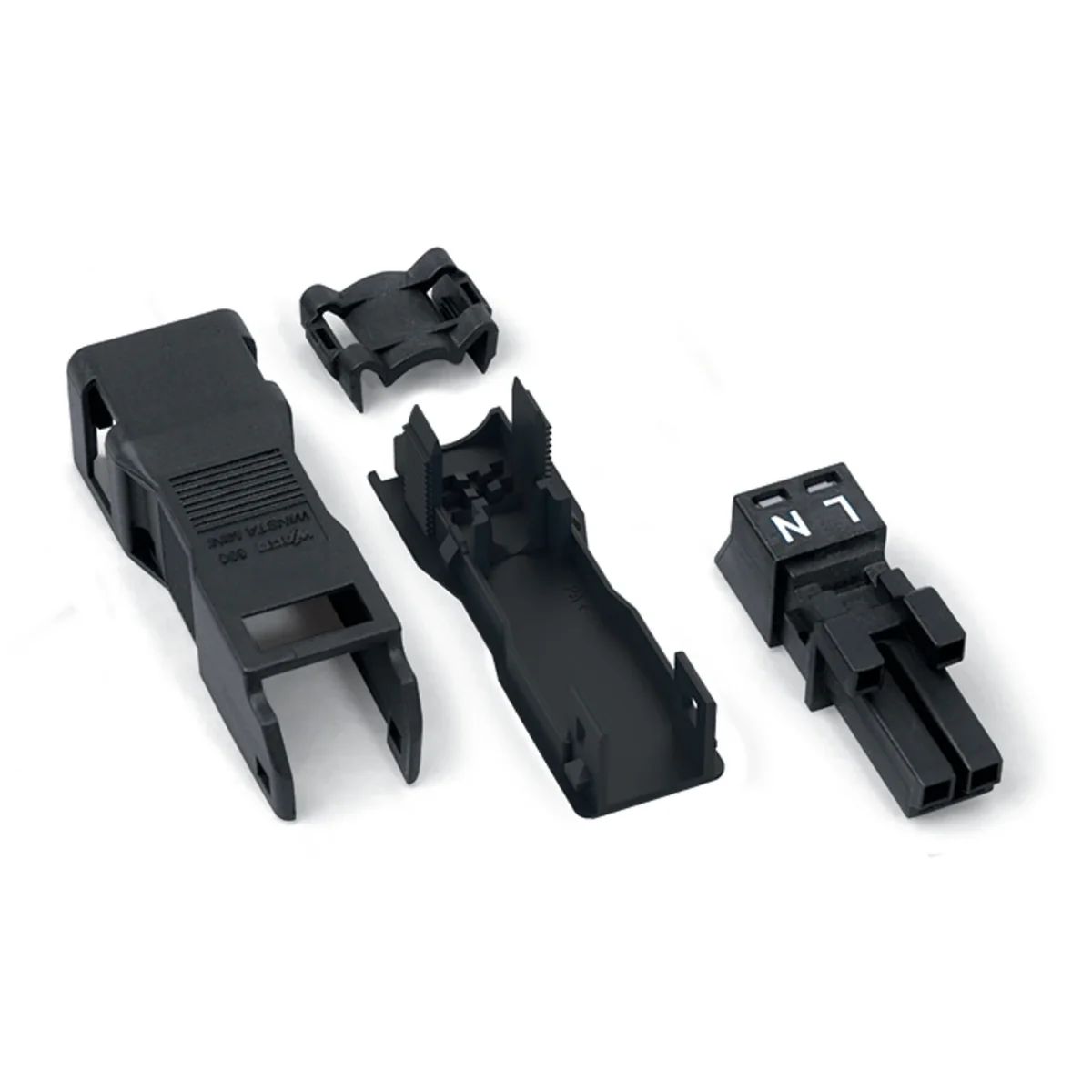

2-way black socket with strain relief housing WINSTA MINI

Technical data

Depth [mm]

2.425
Number of terminals

2
Surge voltage [kV]

4
Gauge [AWG]

22
Degree of contamination

3
Height[mm]

13.2

Number of contacts

2
Color

Black
Rated current [A]

16
Series

890
Width [mm]

15.6
Accurate color

Black

Other technical data

Rated voltage

250 V
Number of poles

2
Connection type

Spring clamp connection
Cable diameter

3.8 ... 8.2 mm
Connection cross section (solid-core)

0.25 ... 1.5 mm²
Pole codification

L, N
Colour coding/contact insert

Black
With strain relief

Yes
Max. continuous temperature resistance strain relief

105 °C
Halogen free

Yes
Surface treatment contacts

Other
Continuity resistance

3 mΩ

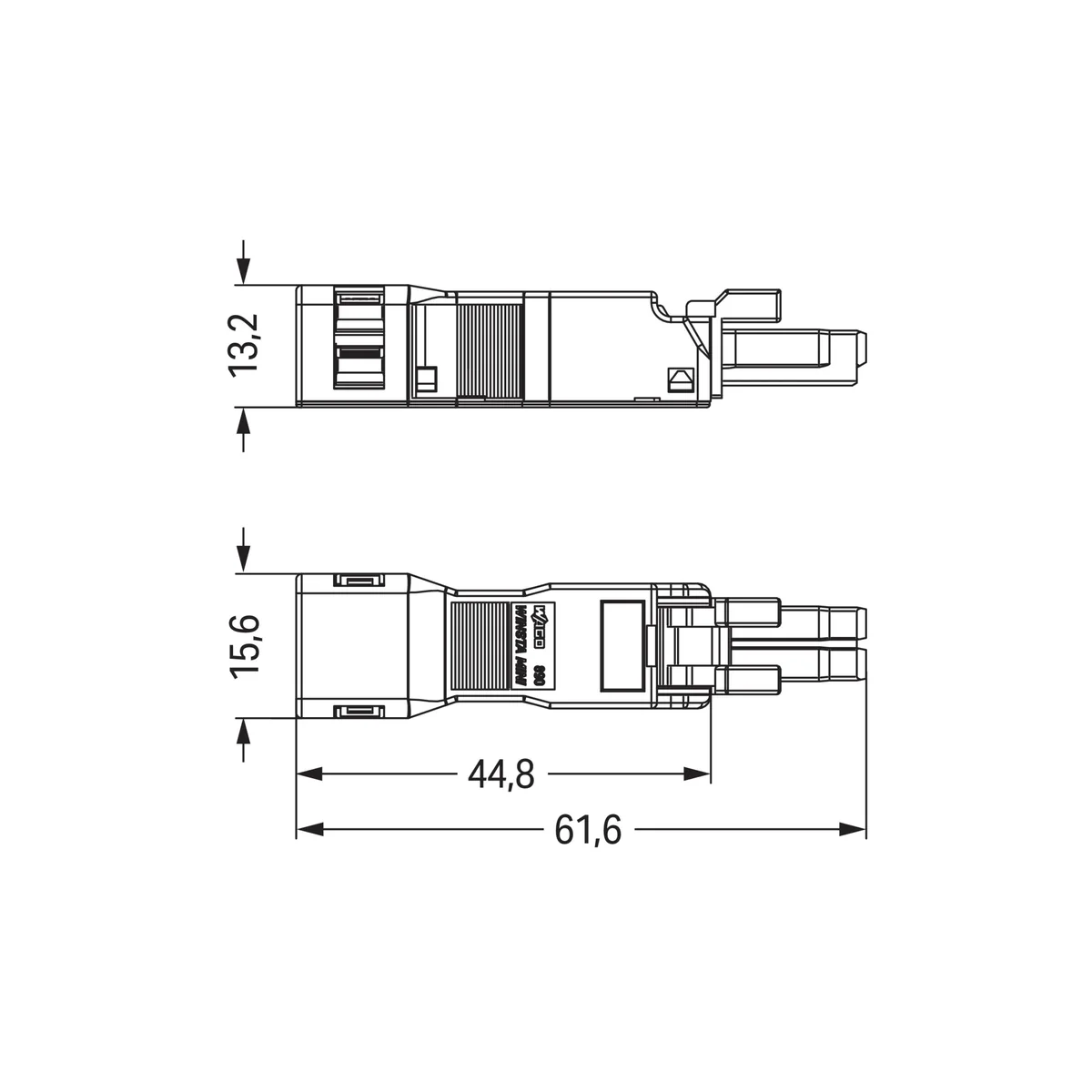

Length

61.6 mm
Width

15.6 mm

Rated current

16 A
Degree of protection (IP)

IP20
Model

Bus
Connection cross section (fine-strand)

0.25 ... 1.5 mm²
Number of connections per pole

1
Mechanical coding

No
Type of locking

Separate
Max. continuous temperature resistance contact part

85 °C
Housing material

Polyamide (PA)
Contact material

Other
Pollution degree

3
Rated surge voltage

4 kV
Height

13.2 mm

Manufacturer details

Manufacturer

WAGO GmbH & Co. KG
Address

32423 Minden Hansastraße 27 Niemcy
E-mail

wago.elwag@wago.com

Bulk packaging

A kind of package	Karton	Karton
Quantity	50 pcs.	50 pcs.
Weight (kg)	0,376	0,376
Volume (m3)	0,003	0,003
Width (m)	0,125	0,125
Length (m)	0,190	0,190
Depth (m)	0,120	0,120
