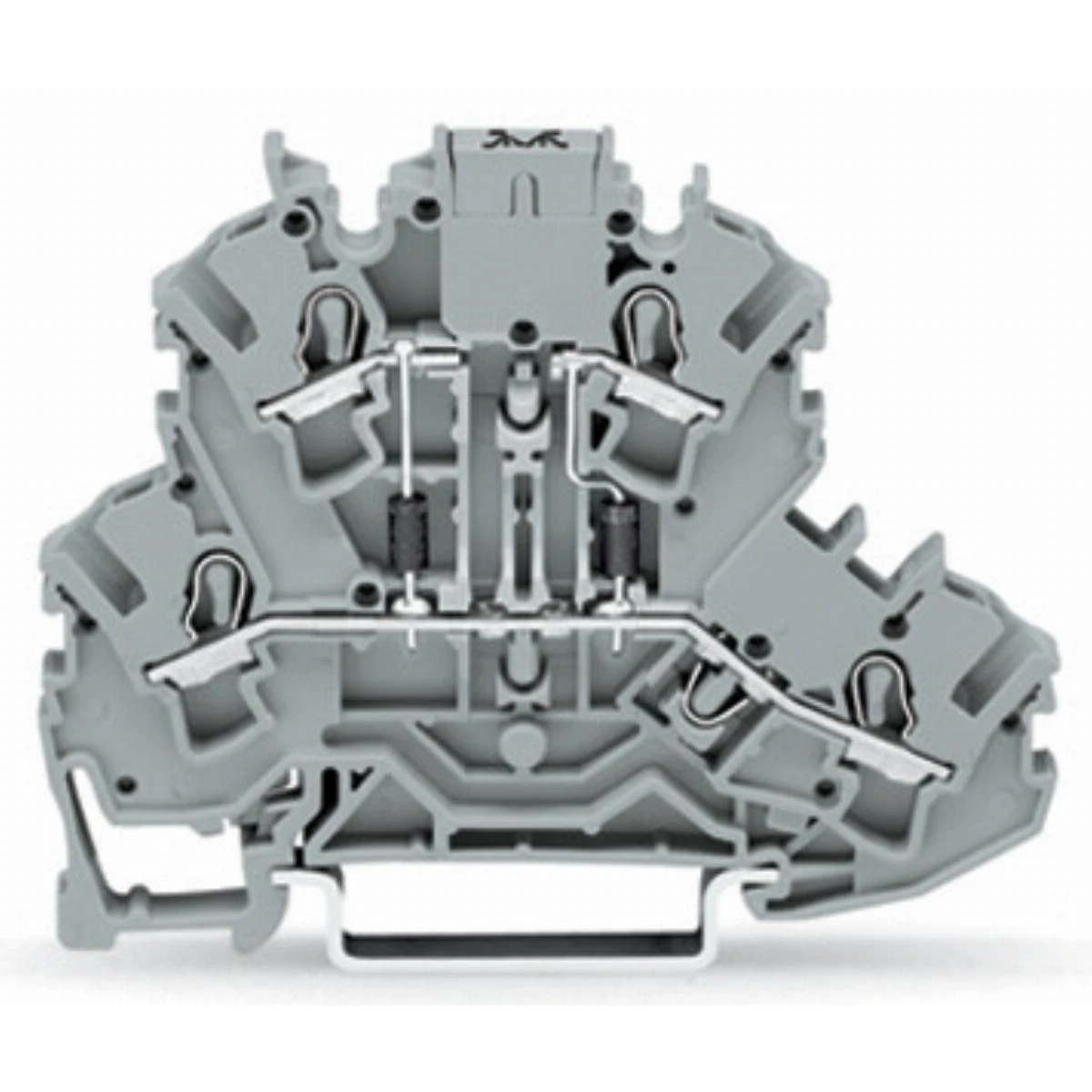

2-deck terminal block 2.5mm² TOPJOBS diode gray 50pcs 2002-2213/1000-488

local index:
TEB814WAGO
Catalog No:
2002-2213/1000-488
EAN code:
4045454375614
Manufacturer: WAGO ELWAG
Color: Gray
Number of levels: 2
Rated current [A]: 0.5
Price:
593,45 €
gross / pkg.
(including VAT 23%)
11,87 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double-deck diode terminal block with 2 diodes 1N4007,

Technical data

  • Color
    Gray
  • Rated current [A]
    0.5
  • Cable type
    E+f
  • Series
    2002
  • Weight [g]
    10.953
  • Number of levels
    2
  • Gauge [AWG]
    2014-12-28 00:00:00
  • Clamp type
    CAGE CLAMP S
  • Pieces in the package
    50

Other technical data

  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.75 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.25 ... 2.5 mm²
  • Rated voltage
    250 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    2
  • Internally connected stages
    No
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    52 mm
  • Closing plate required
    Yes
  • Type of component
    Diode
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.25 ... 4 mm²
  • Connectable conductor cross section solid-core
    0.75 ... 4 mm²
  • Rated current In
    0.5 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    5.2 mm
  • Length
    70 mm
  • Colour
    Grey

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,573
Volume (m3) 0,002
Width (m) 0,100
Length (m) 0,272
Depth (m) 0,084
