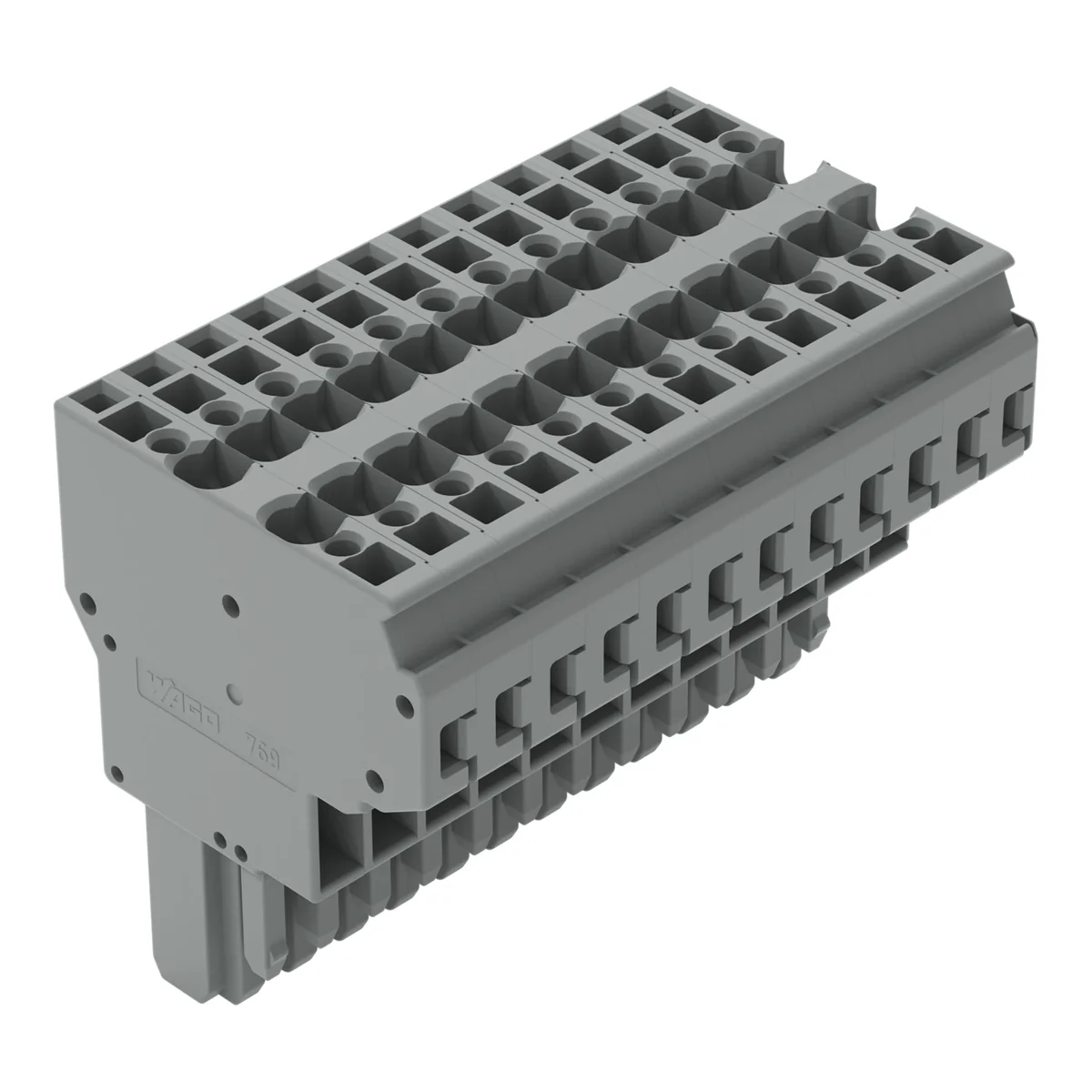

2-Conductor CAGE CLAMP® Socket, Gray 769-132 769-132

Name: 2-Conductor CAGE CLAMP® Socket, Gray 769-132
Brand: WAGO ELWAG
SKU: TEB457WAGO
Price: 91.13 PLN
Availability: BackOrder

local index:

TEB457WAGO

Catalog number:

769-132

EAN code:

4044918474306

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Price:

91,13 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.08 ... 4 mm²
Rated voltage

500 V
Type of electrical connection 2

Spring clamp connection
Number of poles

12
Mounting method

Other
Operating temperature

105 ... 105 °C

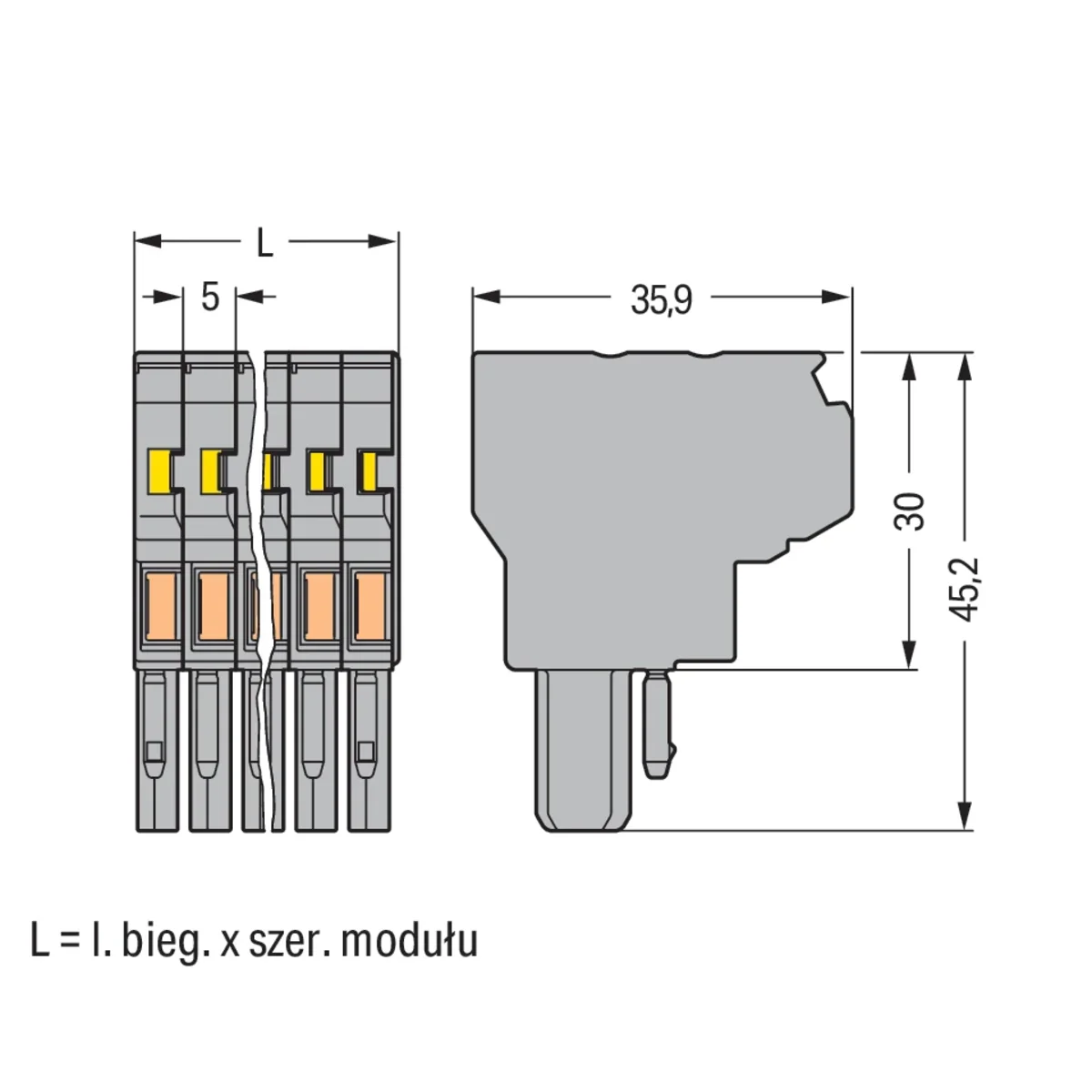

Width/grid dimension

60 mm
Length

35.9 mm
Colour

Grey

Connectable conductor cross section fine-strand without cable end sleeve

0.08 ... 4 mm²
Connectable conductor cross section solid-core

0.08 ... 4 mm²
Rated current In

32 A
Type of electrical connection 1

Spring clamp connection
Connection position

Atop
Number of clamp positions per pole

2
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Wysokość przy najniższym sposobie montażu

45.2 mm
Closing plate required

No
Transparent

No
