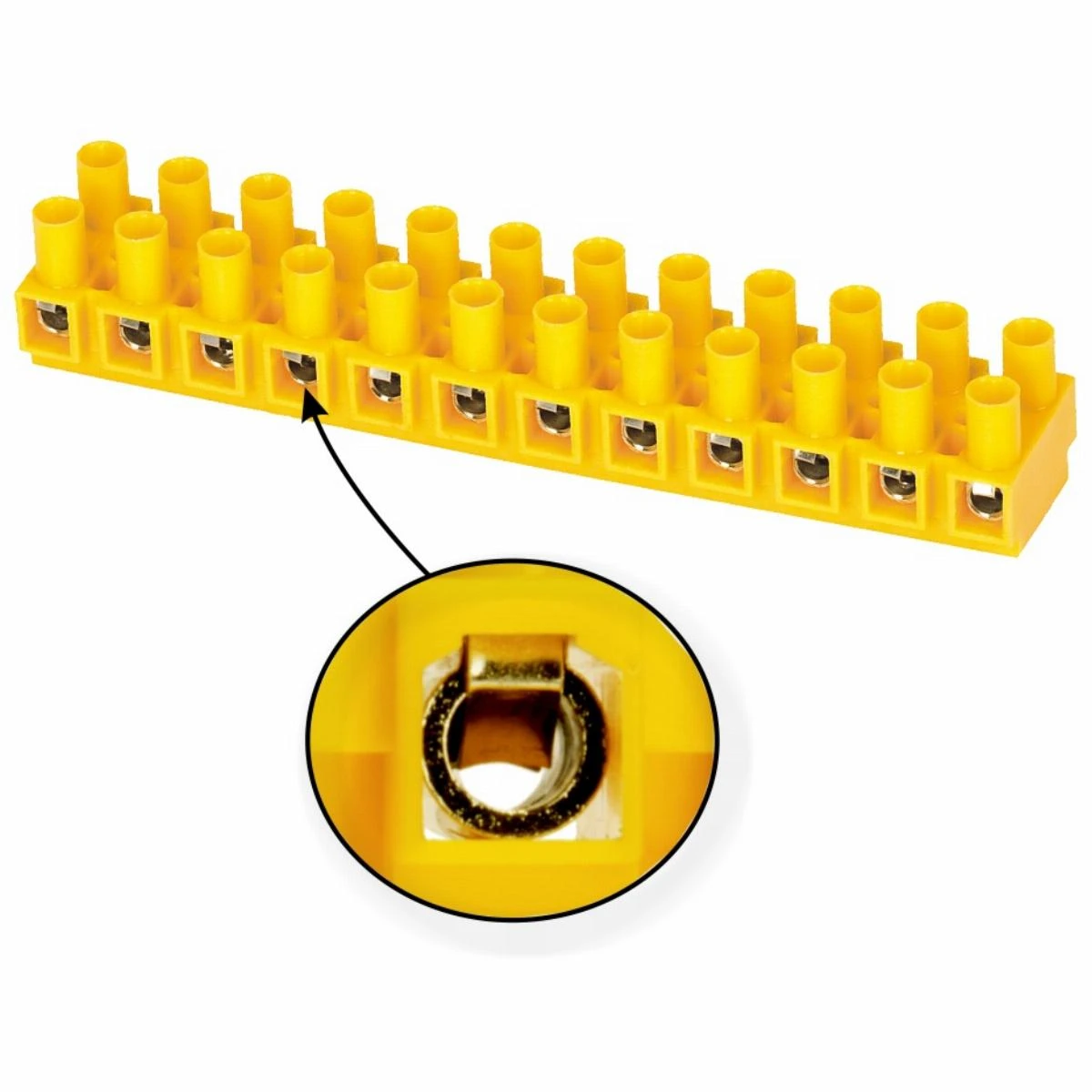

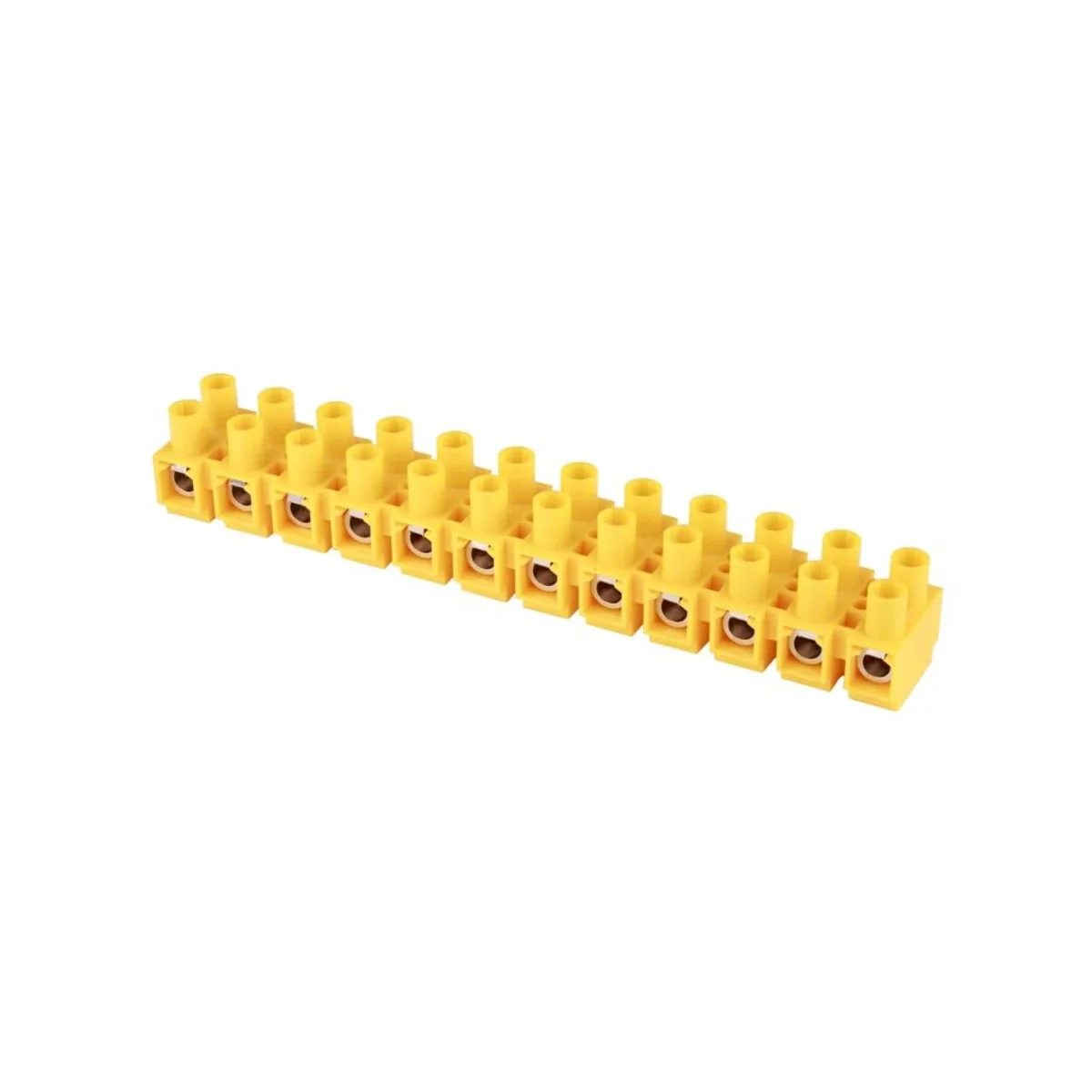

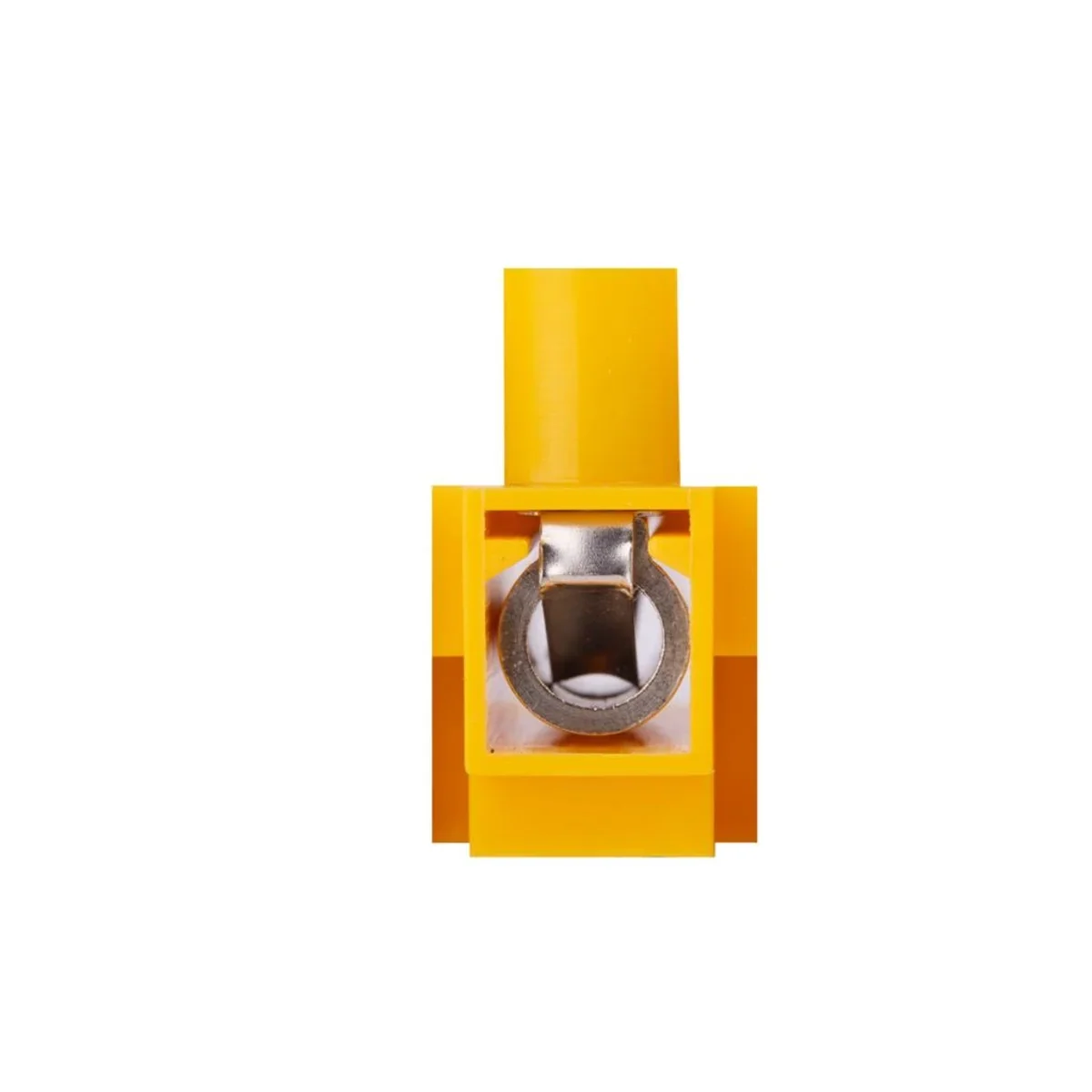

12-way connector TLZ-16N yellow 50pcs. A12-24N1
local index:
TEG004POKO
Catalog No:
A12-24N1
EAN code:
5907570300675
Click on the photo to enlarge
Manufacturer:
POKÓJ
Color:
Yellow
Pieces in the package:
50
See full description
Price:
623,87 €
gross / pkg.
(including VAT 23%)
12,48 € gross/pcs.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
TLZ-16N 12-way connector, yellow
Technical data
Color
Yellow
PKWIU
27.12.40.0
Pieces in the package
50
Other technical data
Drill hole distance centrically
13.7 mm
Connectable conductor cross section fine-strand without cable end sleeve
1 ... 10 mm²
Connectable conductor cross section solid-core
1 ... 16 mm²
Rated current In
76 A
Type of electrical connection 1
Screw connection
Connection position
Atop
Number of clamp positions per pole
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V2
Wysokość przy najniższym sposobie montażu
24 mm
Closing plate required
No
Transparent
No
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand with cable end sleeve
1 ... 10 mm²
Connectable conductor cross section multi-wired
1 ... 10 mm²
Rated voltage
690 V
Type of electrical connection 2
Screw connection
Number of poles
12
Mounting method
Direct mounting
Operating temperature
-25 ... 100 °C
Width/grid dimension
24 mm
Length
162 mm
Colour
Yellow
