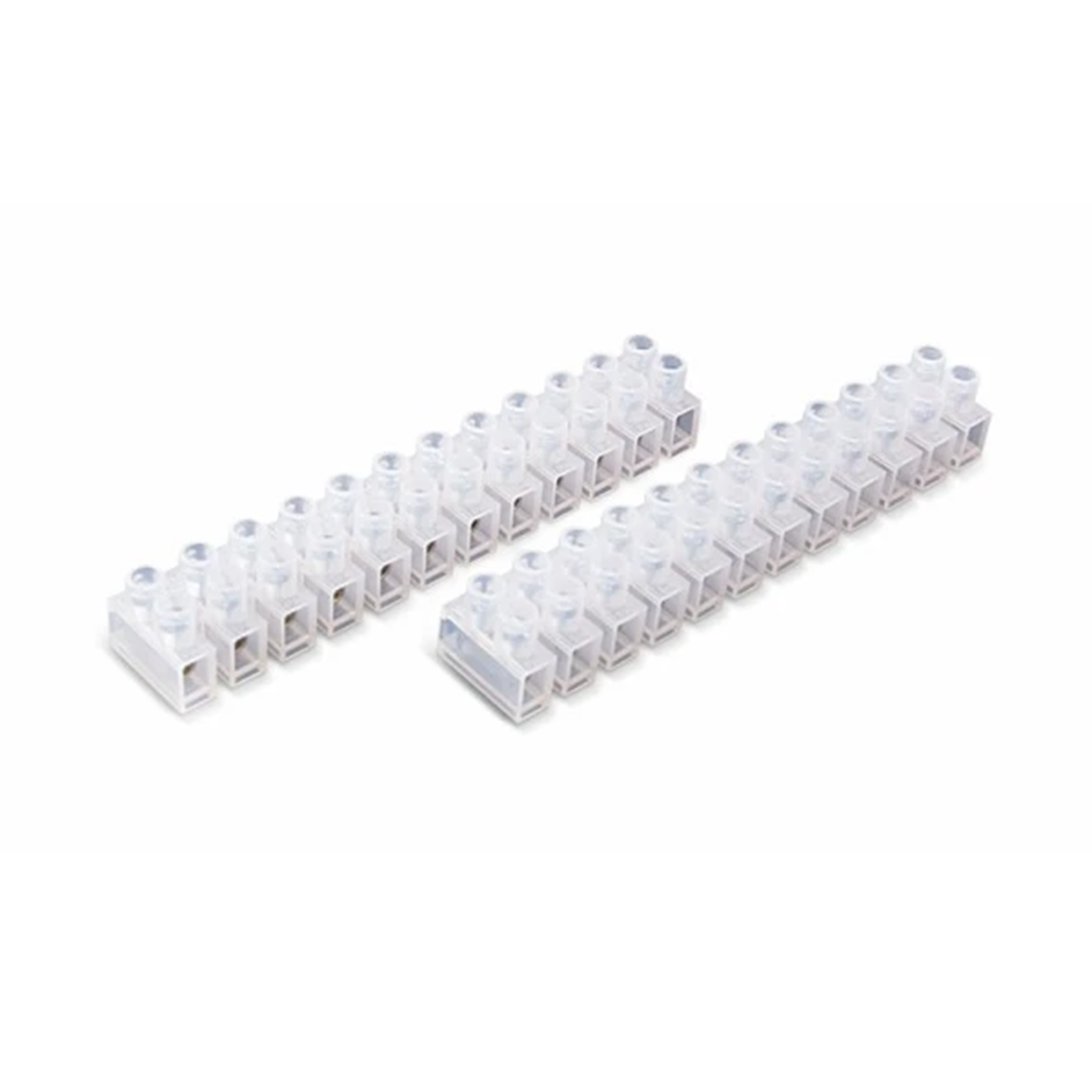

12-way connector PP12-10 40pcs. PP-12-10

Indice locale:
TES027BORP
Numero di catalogo:
PP-12-10
Codice EAN:
5901924530756
Produttore: TRYTYT
Stripping length [mm]: 9
Color: White
Maximum operating temperature [°C]: 85
Prezzo:
33,74 €
gross / conf.
(inclusa IVA 23%)
0,84 € gross/pezzi
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità conf.
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

12-way connectors type PP and LPA are intended mainly for connecting wires in LV switchgears, control cabinets, installation boxes and lighting fixtures. Thanks to the high-quality material used, the cable connectors can be easily divided into smaller sections. The screw terminals of the LPA connectors have a special construction of screws with a washer (wire protector), which protects the cores of the connected wires against mechanical damage. They also allow you to connect stranded wires without the need to press ferrules.

Dati tecnici

  • Stripping length [mm]
    9
  • Maximum operating temperature [°C]
    85
  • Rated voltage [V]
    450
  • Rated current [A]
    32
  • Pieces in the package
    40
  • PKWIU
    27.33.13.0
  • Color
    White
  • Material
    PP
  • Combustibility
    Self-extinguishing
  • Nominal cross-section [mm²]
    10
  • Weight [g]
    73.2

Dettagli del produttore

  • Produttore
    TRYTYT Sp. z o.o.
  • Indirizzo
    43-382 Bielsko-Biała Horeszków 8 Polska
